Technical Specifications
Overview
Portable Power Solution

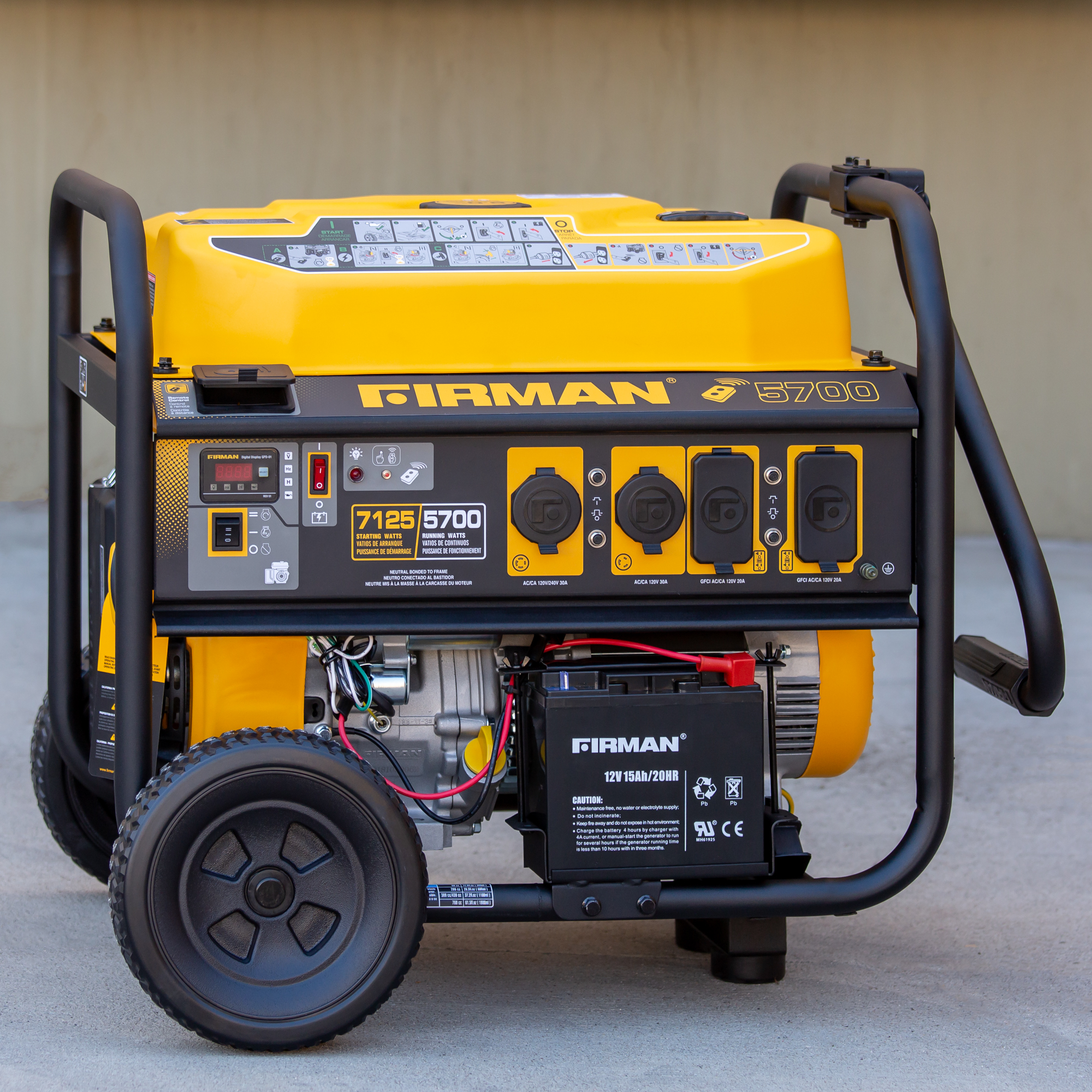

This 5700W portable gasoline generator is engineered for reliable power delivery in diverse environments, including home backup, recreational activities, and job sites. It features a robust 389cc 4-stroke engine with both recoil and electric start capabilities for ease of use. Equipped with a large 31L fuel tank and a comprehensive digital display, this unit ensures extended runtime and precise monitoring of voltage, frequency, and operating hours.
Performance
Power Performance
7,125 W
Starting Watts
5,700 W
Rated Output
Engine & Fuel
Engine Specifications
| Feature | Detail |
|---|---|
| Displacement | 389cc |
| Type | 4-Stroke, Single Cylinder, OHV |
| Cooling | Air cooled |
| Starting System | Recoil + Electric |
- Fuel Tank Capacity
- 31 L
Operation
- Noise Level (@7m)
- 72 dB(A)
- Safety Features
- GFCI ProtectionLow Oil ShutdownOverload ProtectionNeutral Bonded to Frame
- Battery Specifications
- 12V 15Ah/20HR Maintenance-free
Connectivity
Available Outlets
- AC 120V/240V 30A
- AC 120V 30A
- GFCI AC 120V 20A
