5.5kW Gasoline Generator Set

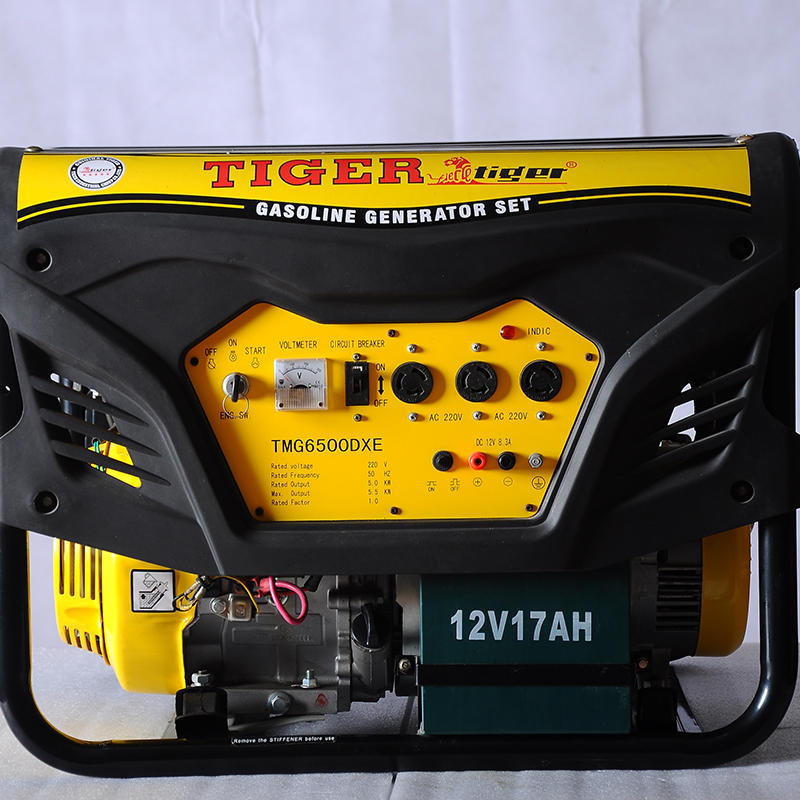

This gasoline generator set delivers a rated output of 5.0 kW and a maximum output of 5.5 kW. It features AC 220V outlets and a DC 12V output, complete with a voltmeter, circuit breaker, and engine start/stop switch.
Technical Specifications
Overview
Reliable Power Solution

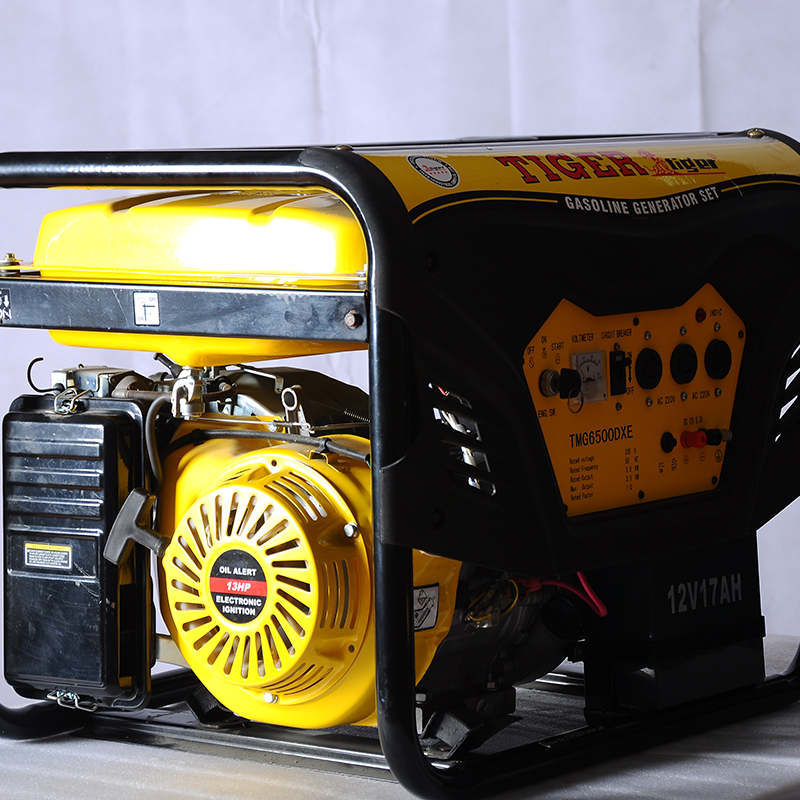

This 5.5kW gasoline generator set is engineered for dependable performance in both residential and commercial environments. Featuring a 13HP forced air-cooled engine and a 25L fuel tank, it provides consistent power output for extended operation. Equipped with key start functionality and an oil alert system, this unit combines ease of use with essential safety features for various power needs.
Performance Metrics
Rated Output
5 kW
Rated Output
5.5 kW
Max Output
Electrical Specifications
| Parameter | Value |
|---|---|
| Frequency | 50 Hz |
| Voltage | 220 V |
| Rated Current | 22.7 A |
Engine Specifications
Engine Details
- Model: TE390E
- Max Output: 13 HP
- Displacement: 389 cc
- Type: Forced air-cooled, 4 stroke, OHV
- Ignition: Non-contact transistorized ignition (T.C.I)
Operational Features
Starting System
Key Start
Capacity
- Fuel Tank: 25 L
- Oil Capacity: 1.1 L
Logistics
Dimensions & Weight
- Package Dimensions: 710 x 540 x 570 mm
- Gross Weight: 93 kg
- 20' FCL Capacity
- 128 pcs
