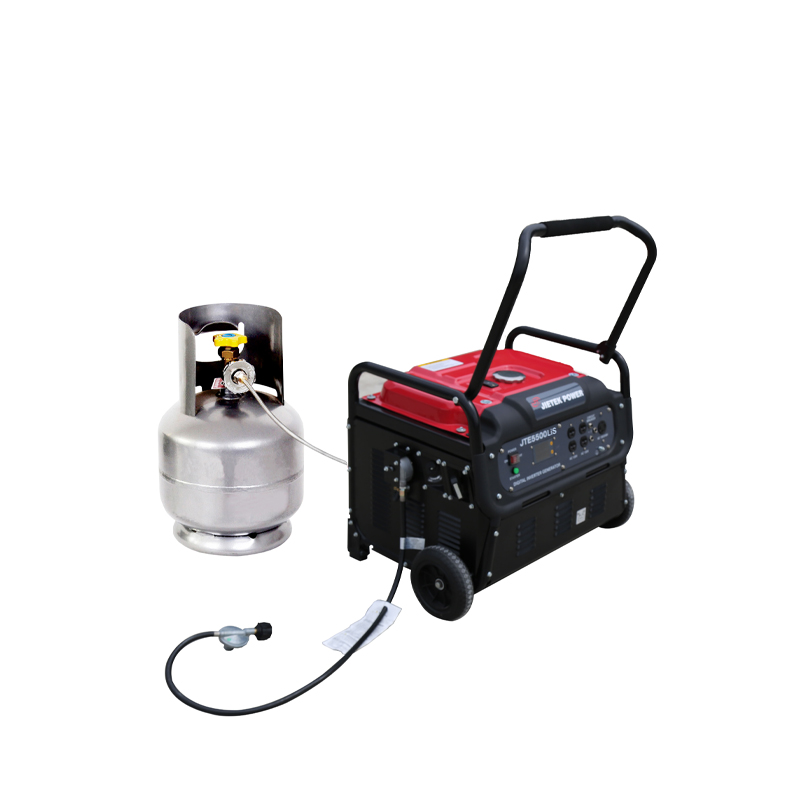

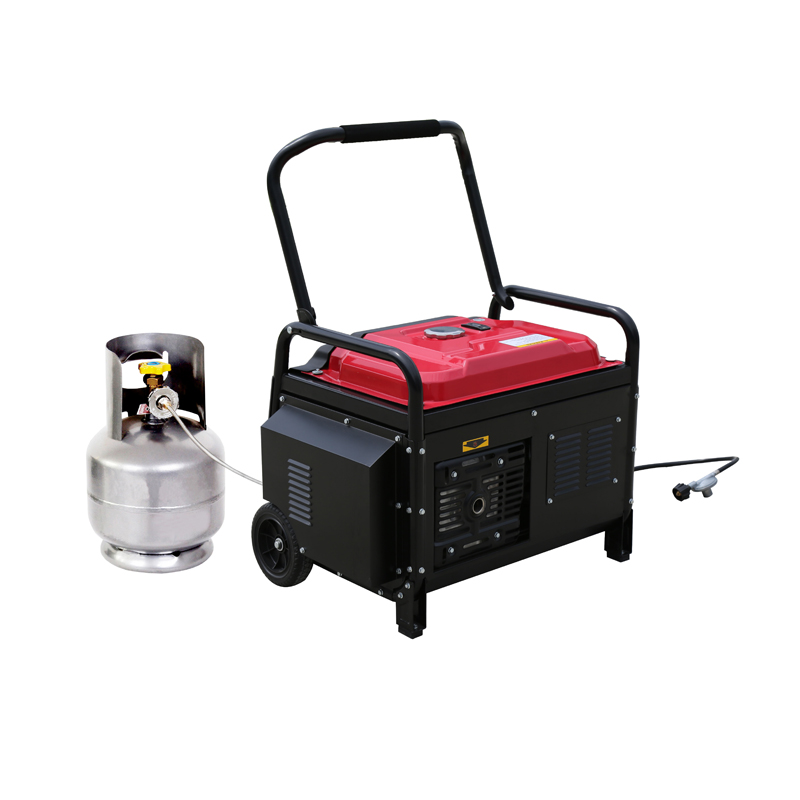

5.5kW Digital Inverter Gas Generator
This 5.5kW gas generator provides a stable and clean power supply with its digital inverter technology. It can deliver surge power up to 9kW and saves up to 40% fuel compared to traditional generators.
Technical Specifications
Overview
High-Performance 5.5kW Digital Inverter Generator
This commercial-grade digital inverter generator is engineered for heavy-duty applications, capable of 24-hour continuous operation without power reduction. It delivers clean, stable power with a true pure sine wave (THD < 2.5%), making it safe for sensitive professional electronics. Featuring dual-fuel support for gasoline and LPG, it offers up to 40% better fuel efficiency compared to traditional generator sets.
Performance Metrics
Key Performance Metrics
5 kW
Rated Power
5.5 kW
Max Power
9 kW
Surge Power
67 dBA
Noise Level at 7m
Electrical Specifications
Electrical Data
| Parameter | Details |
|---|---|
| Voltage | 110V / 220V / 240V |
| Frequency | 50Hz / 60Hz |
| Power Factor | 0.93 |
| Phase | Single Phase |
| Total Harmonic Distortion | < 2.5% (True Pure Sine Wave) |
| Voltage Regulation | Inverter Control |
Engine & Fuel
Engine & Fuel System
| Component | Specification |
|---|---|
| Engine Model | JD190F (Single Cylinder, 4-Stroke, OHV) |
| Cooling System | Forced Air Cooled |
| Displacement | 420 cc |
| Fuel Types | Unleaded Gasoline / LPG |
| Fuel Tank Capacity | 22 Liters |
| Continuous Running Time | 8 Hours |
| Oil Capacity | 1100 ml |
Control & Monitoring
Control & Monitoring
- 3-inch LCM Digital Display
- One-Button Push Electric Start
- Recoil Start Backup
- Load Status & Power Rate Monitoring
- Working Hours Tracker
- Short Circuit & Overload Alarms
- Low Oil Alarm
Physical & Logistics
Dimensions & Logistics
| Metric | Value |
|---|---|
| Net Weight | 77 kg |
| Gross Weight | 88.5 kg |
| Dimensions (LxWxH) | 730 x 570 x 630 mm |
| 20GP Loading | 96 pcs |
| 40HQ Loading | 256 pcs |
Compliance
- Certifications
- EPACEISO9001
Available Options
Optional Configurations
ATS SupportParalleling Kit2-Wire System
