Technical Specifications
Overview
Compact Urban Mobility

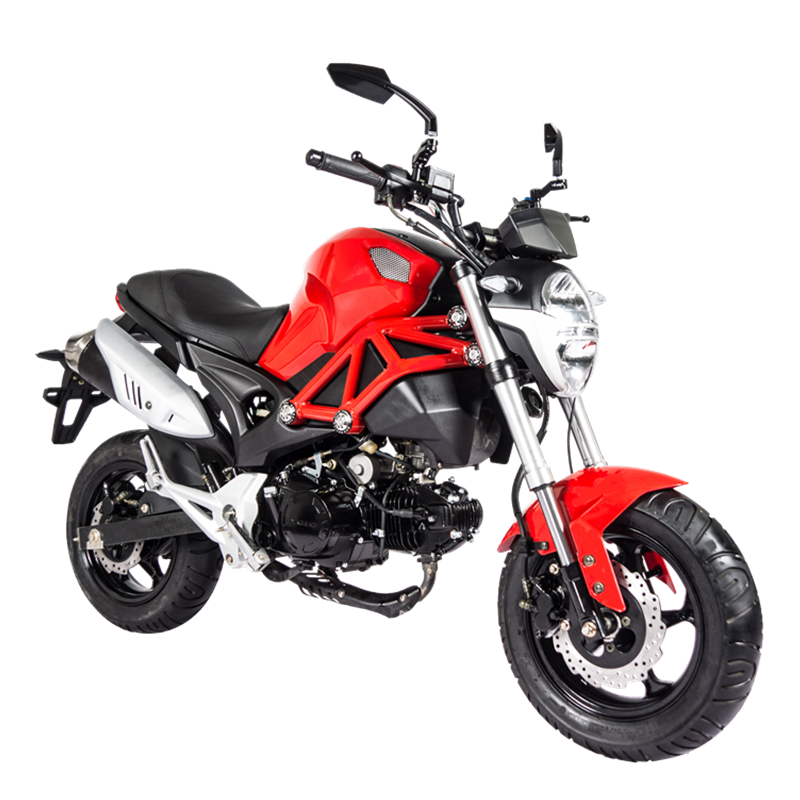

This versatile street motorcycle series is engineered for efficient urban commuting and recreational riding. Available in 50cc, 110cc, and 125cc configurations, these models feature a compact, lightweight design that ensures agility in congested traffic. With EEC approval and a focus on reliability, they offer a practical solution for daily transport needs.
Certifications
- Certifications
- EEC ApprovedEuro 4
Performance Metrics
Key Performance Metrics
125 cc
Max Displacement
85 km/h
Max Speed
150 kg
Max Load Capacity
Technical Specifications
Model Comparison
| Feature | LM 125 | LM 110 | LM 50 (Euro 4) |
|---|---|---|---|
| Max Power (kW) | 6.5 | 4.8 | 2.2 |
| Max Torque (N.m) | 9.3 | 6.5 | 2.5 |
| Max Speed (km/h) | 85 | 80 | 45 |
Engine & Drivetrain
- Cooling System: Air-Cooled
- Fuel System: Carburetor / E-Carburetor
- Start Type: Electric / Kick Start
- Front Suspension: Upside Down Shock Absorber
Physical Dimensions
Vehicle Dimensions
- Length x Width x Height: 1770 x 750 x 1020 mm
- Wheelbase: 1210 mm
- Seat Height: 750 mm
- Ground Clearance: 150 mm
- Dry Weight: 104 kg
Logistics
Container Loading Capacity
- 40' HQ CBU: 108 units
- 40' HQ CKD: 150 units
