500W Fiber Laser Water Chiller 1800W Cooling Capacity
This water chiller features a cooling capacity of 1800W. The temperature control accuracy is ±0.3℃.
Technical Specifications
Product Overview
Dual-Circuit Laser Cooling Solution

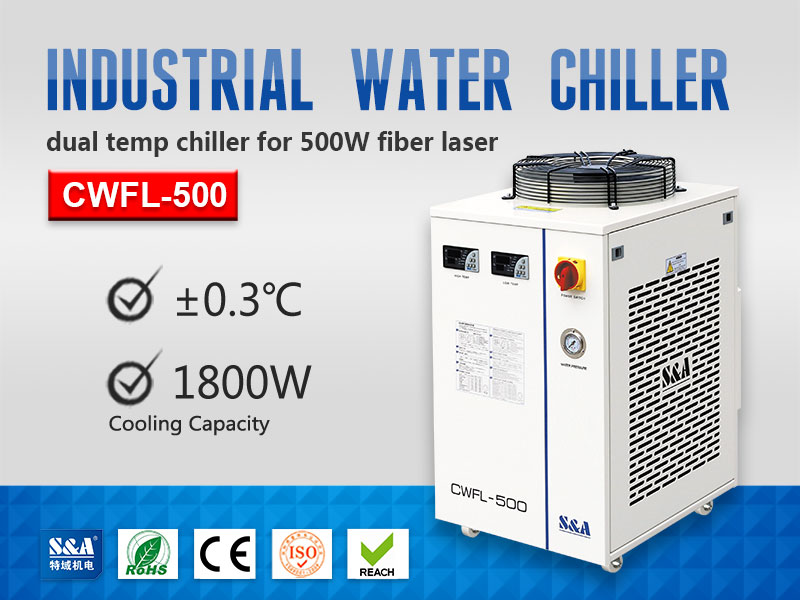

This industrial water chiller is specifically engineered for cooling 500W fiber laser systems, offering a robust 1800W cooling capacity. Featuring a dual-temperature control system, it independently manages the fiber laser and optical components to optimize performance and longevity. Users benefit from precise thermal management, automatic intelligent temperature adjustments, and comprehensive safety alarms to ensure reliable operation in demanding industrial environments.
Key Performance Metrics
Performance Specifications
1,800 W
Cooling Capacity
0.3 °C
Temperature Stability
70 L/min
Max Flow Rate
45 M
Max Lift
Technical Specifications
Physical and Electrical Data
| Parameter | Value |
|---|---|
| Voltage | 110V-220V |
| Frequency | 50/60Hz |
| Pump Power | 0.55KW |
| Tank Capacity | 10L |
| Refrigerant | R-22/R-410a |
| Net Weight | 50kg |
| Dimensions | 65 x 38 x 74 cm |
Compliance and Safety
Protection Alarms
- Compressor time-delay protection
- Compressor overcurrent protection
- Water flow alarm
- Over high/low temperature alarm
- Standards and Certifications
- CERoHSREACH
