Technical Specifications
Overview
Professional Power System Testing

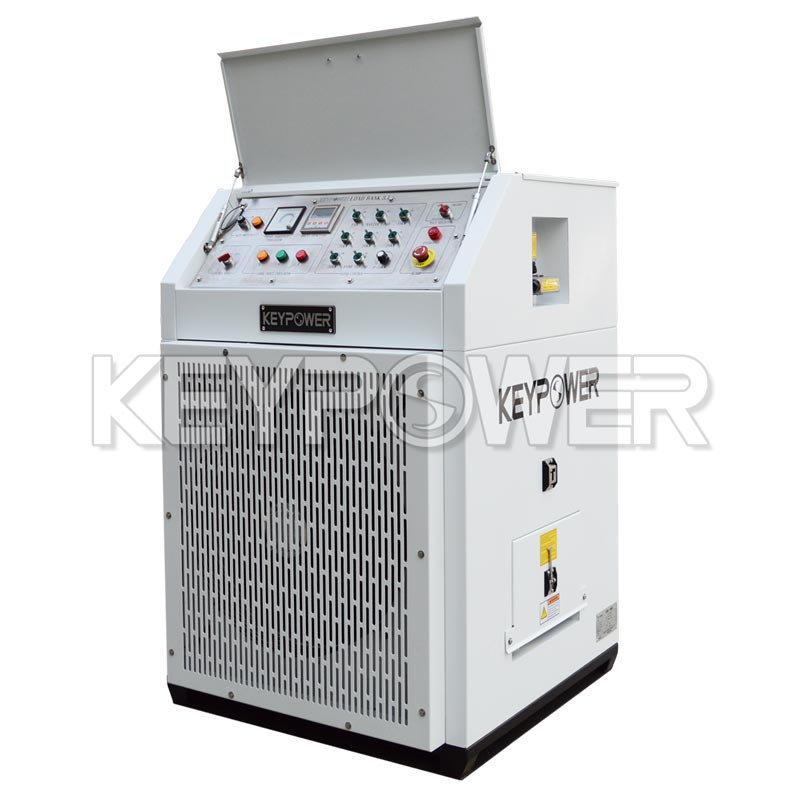

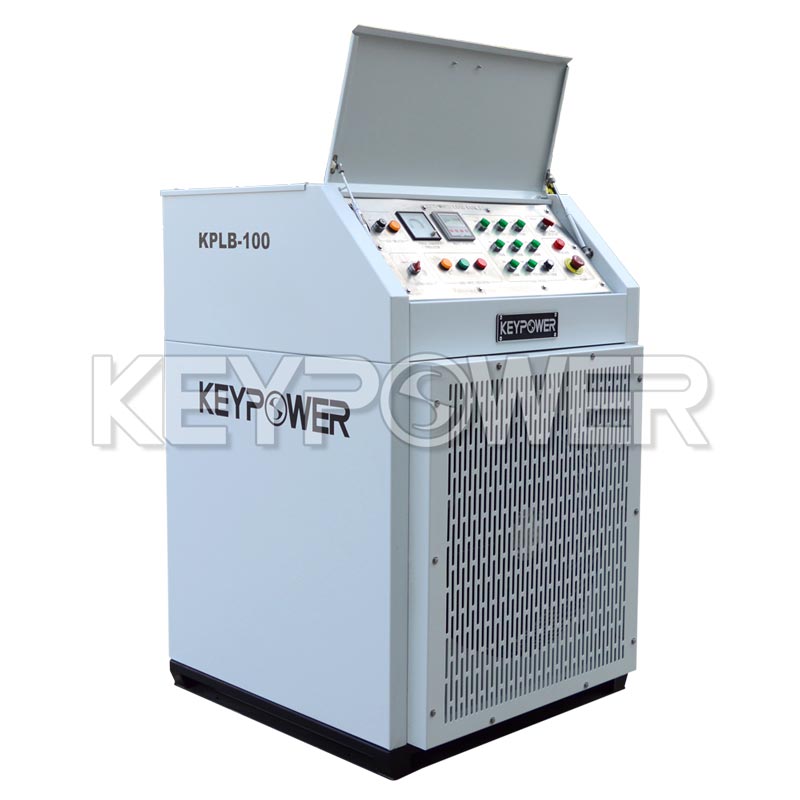

This resistive load bank is designed for rigorous testing of generators, UPS systems, and battery banks. It features a durable, industrial-grade design with forced air cooling and precise load step control, allowing for flexible simulation of electrical loads. Equipped with advanced monitoring capabilities and safety protections, it ensures reliable performance validation for power systems in demanding environments.
Technical Specifications
- Load Type
- Resistive
- Power Factor
- 1
- Rated Testing Voltage
- 110-480 VAC
- Rated Frequency
- 50/60 Hz
- Load Step Resolution
- 10 kW
- Control Modes
- Local ManualRemote Manual (Optional)
Key Components
Integrated Components
- Schneider contactors
- Siemens switches/relays
- ABB circuit breakers
- Phoenix terminal blocks
- Lovato electricity meter
Performance Metrics
Parameter Measuring Accuracy
0.3 %
Accuracy Grade
5 %
Load Control Accuracy
Operating Environment
Operating Limits
| Parameter | Limit |
|---|---|
| Max Altitude | 3000m |
| Ambient Temperature | -10 to +50 °C |
| Relative Humidity | ≤ 80% |
Safety & Protection
Protection Systems
Overheating ProtectionCooling Fan Failure ProtectionOverload ProtectionAlarm System
