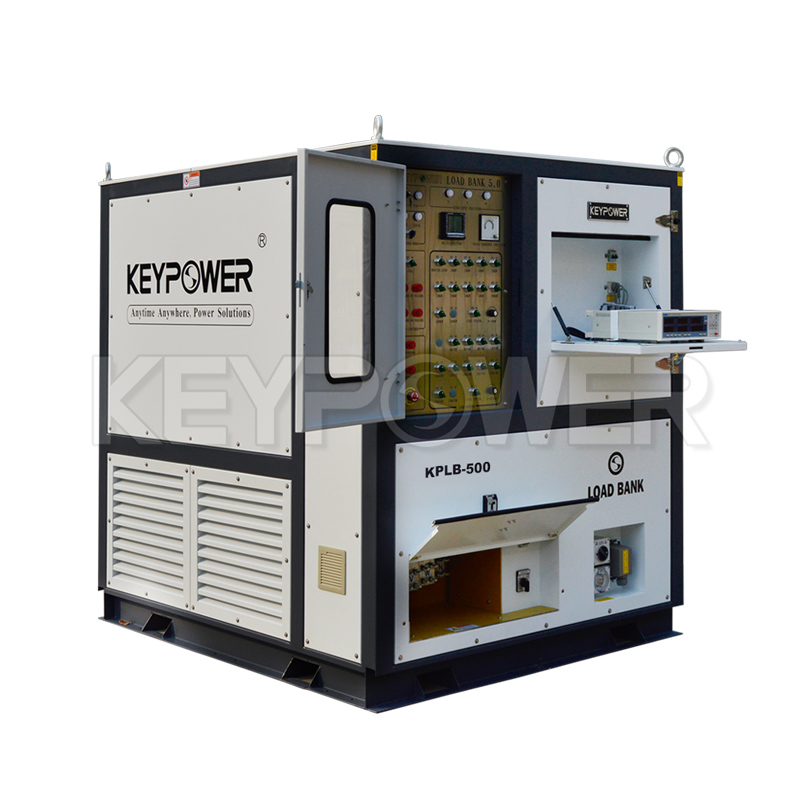

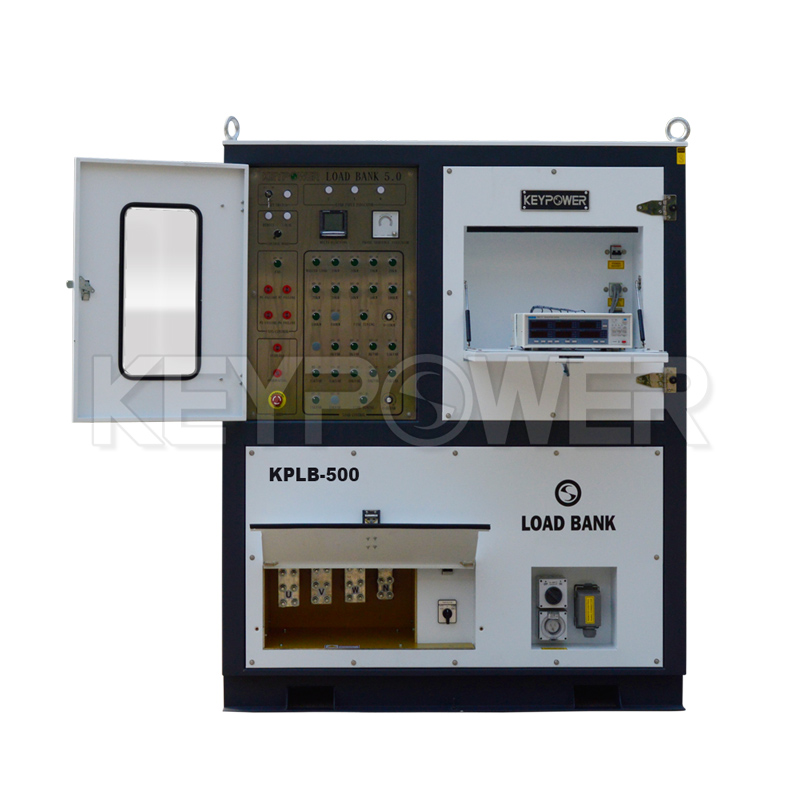

500 kW Resistive Load Bank for Generator Testing
This 500kW resistive load bank is designed for generator testing and simulating electrical loads. It provides a stable and controllable load for testing generators and other power sources.
Technical Specifications
Overview
Professional Generator Testing Solution
This 500 kW resistive load bank is designed for comprehensive performance testing and commissioning of generators, UPS systems, and battery banks. Engineered with high-grade stainless steel elements and industrial-grade cooling systems, it ensures reliable and accurate load simulation. The unit features precise load step control and advanced digital metering, making it an essential tool for routine maintenance and performance verification in demanding industrial environments.
Performance Specifications
- Maximum Capacity
- 500 kW
- Load Type
- Resistive (PF = 1.0)
- Rated Testing Voltage
- 110-480 VAC (3P4W)
- Load Step Resolution
- 10 kW
- Parameter Measuring Accuracy
- 0.3 Grade
- Load Control Accuracy
- ± 5%
Control & Monitoring
Internal Components
- Schneider contactors
- Siemens switches and indicators
- ABB circuit breakers
- Omron intermediate relays
- Phoenix terminal blocks
Measurement Parameters
- Voltage
- Current
- Load Power
- Reactive Power
- Apparent Power
- Power Factor
- Frequency
- Control Modes
- Local ManualRemote Manual (Optional)
Safety & Environment
Protection Features
Overheating ProtectionFan Failure ProtectionOverload Protection
Operating Conditions
| Parameter | Limit |
|---|---|
| Max Altitude | ≤ 3000m |
| Ambient Temperature | -10 to +50 °C |
| Relative Humidity | ≤ 80% |
