5-Ton Sheet Metal Decoiler Leveler

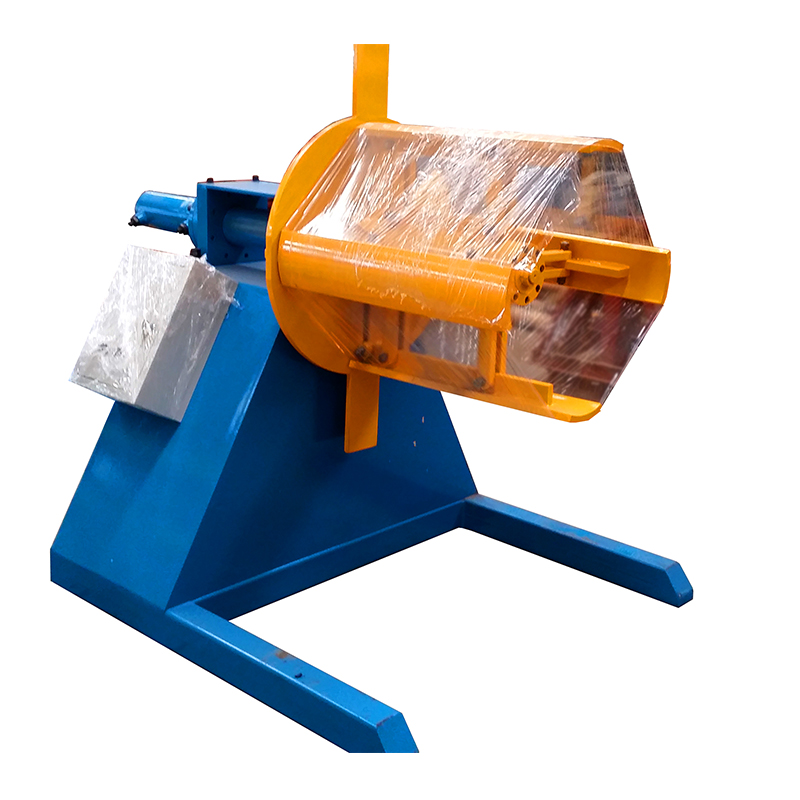

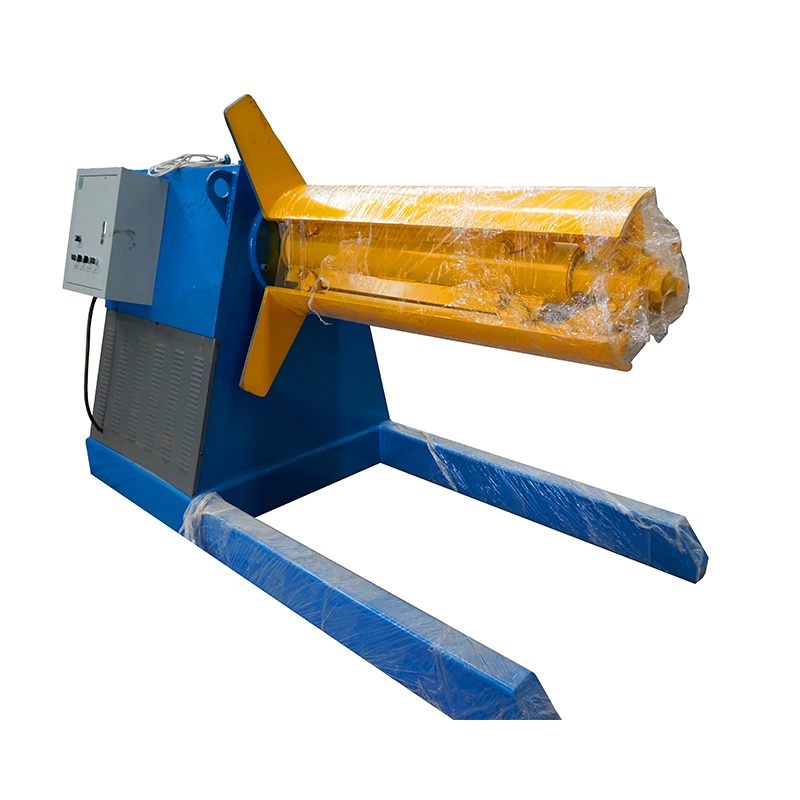

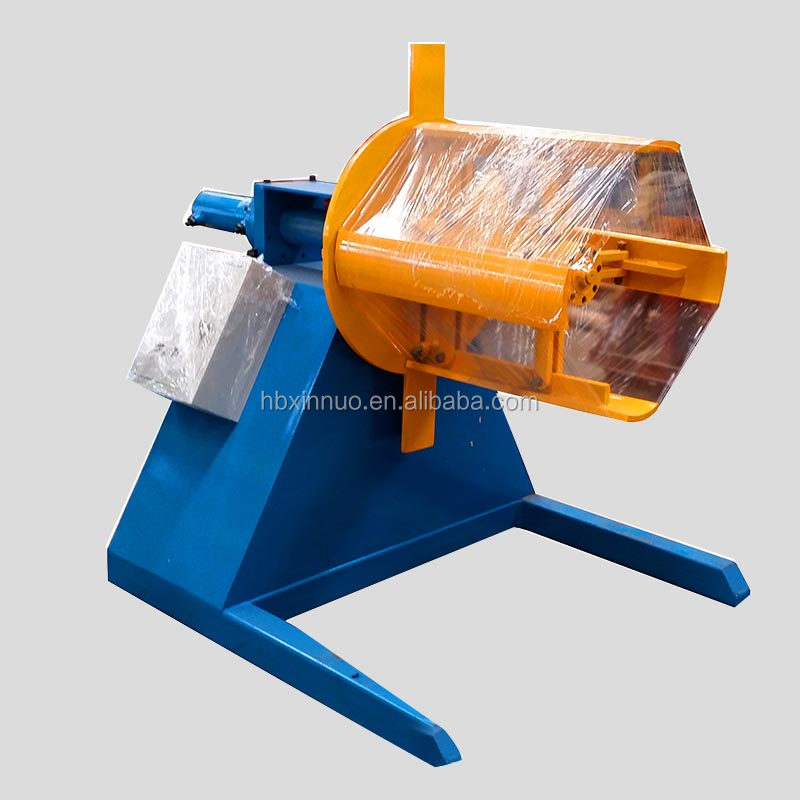

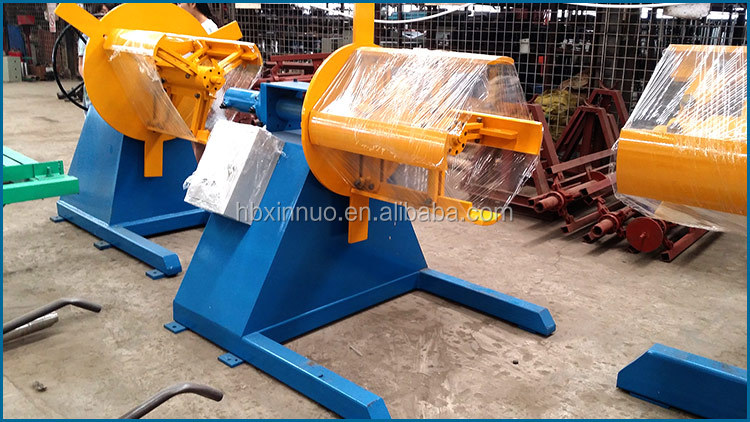

This decoiler leveler machine handles sheet metal coils up to 5 tons. It unwinds and flattens coiled metal sheets for use in rolling mills and other metal forming processes.
Technical Specifications
Product Overview
High-Efficiency 5-Ton Decoiler Leveler
This robust 5-ton decoiler leveler is engineered for professional metalworking environments, providing a stable solution for unwinding and flattening metal coils. It is specifically designed to handle a variety of materials including color steel, galvanized steel, and standard steel coils with a maximum width of 1250mm. By ensuring a smooth, flat, and consistent material feed, this machine significantly improves the efficiency and quality of subsequent roll forming and manufacturing processes.
Technical Specifications
Load Capacity
5 Tons
Maximum Coil Weight
- Raw Material Width
- 1250 mm
- Suitable Materials
- Color Steel CoilSteel CoilGalvanized Coil
Physical Dimensions
- Dimensions (L*W*H)
- 1.7m x 1.7m x 1.5m
- Machine Weight
- 2.5 Tons
Construction & Quality
Structural Advantages
- Main body constructed from heavy-duty H-steel for superior stability
- Robust sidewall connect plate design for durability
- Integrated leveling rollers to eliminate coil set and imperfections

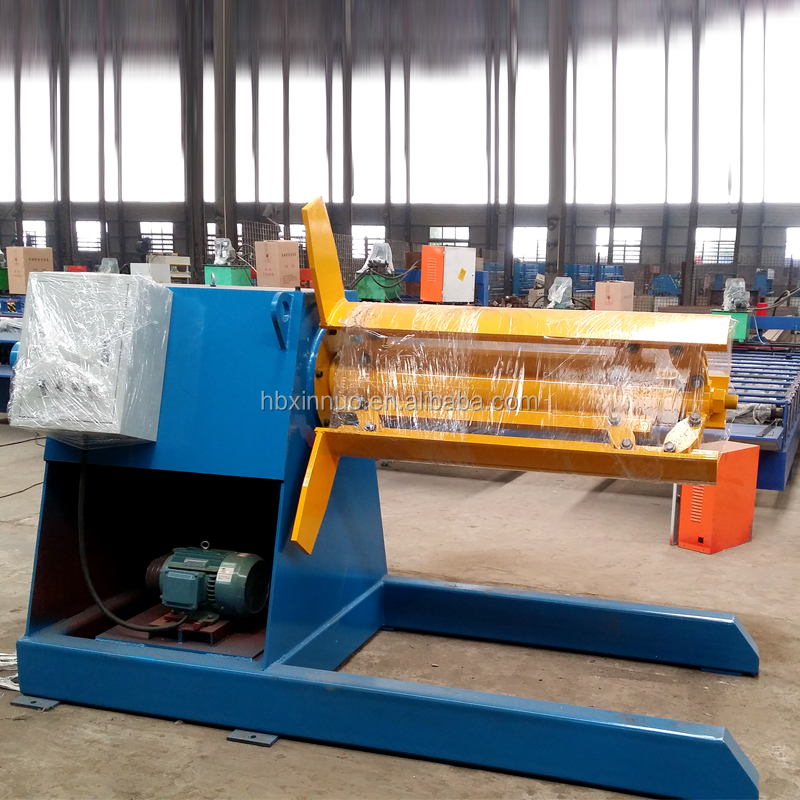

- Motorized unwinding mechanism for controlled material feeding
Logistics & Delivery
Packaging Method
| Component | Packaging Type |
|---|---|
| Main Machine | Nude / Unpacked in container |
| Computer Control Box | Wooden frame / Wooden packaging |
- Lead Time
- 20 days
