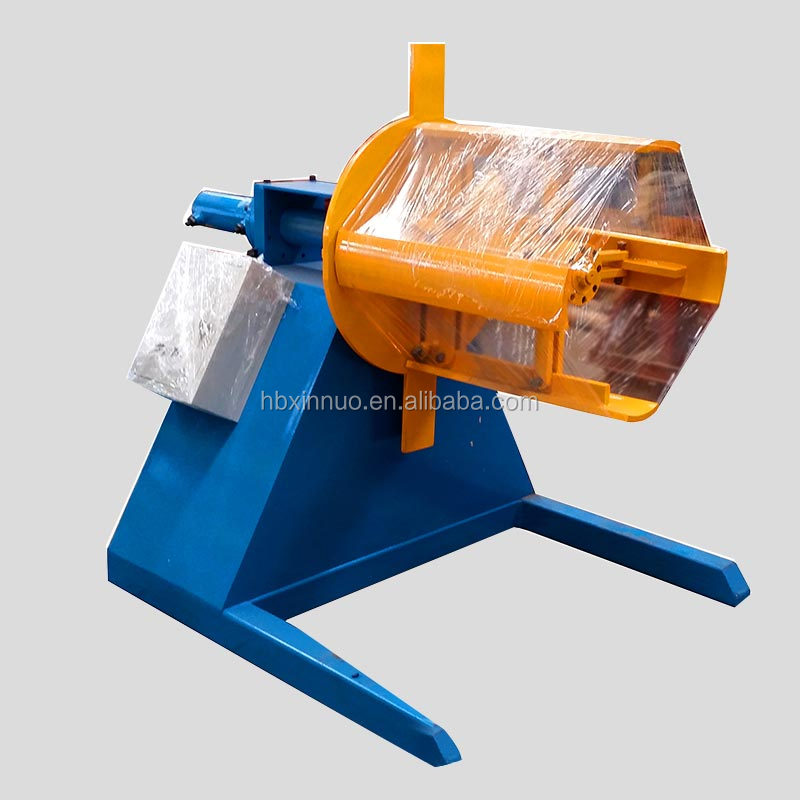

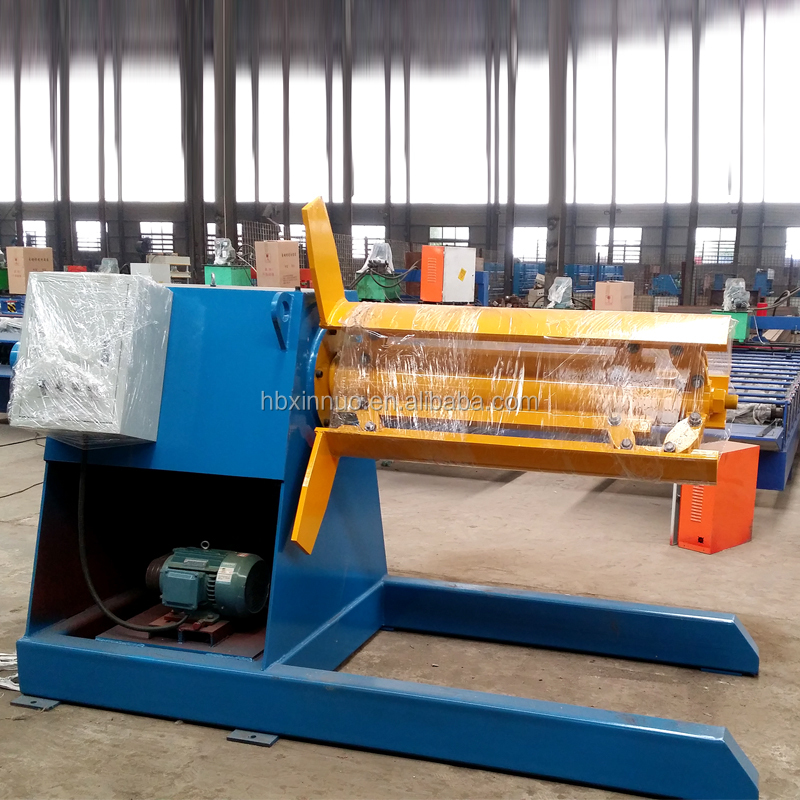

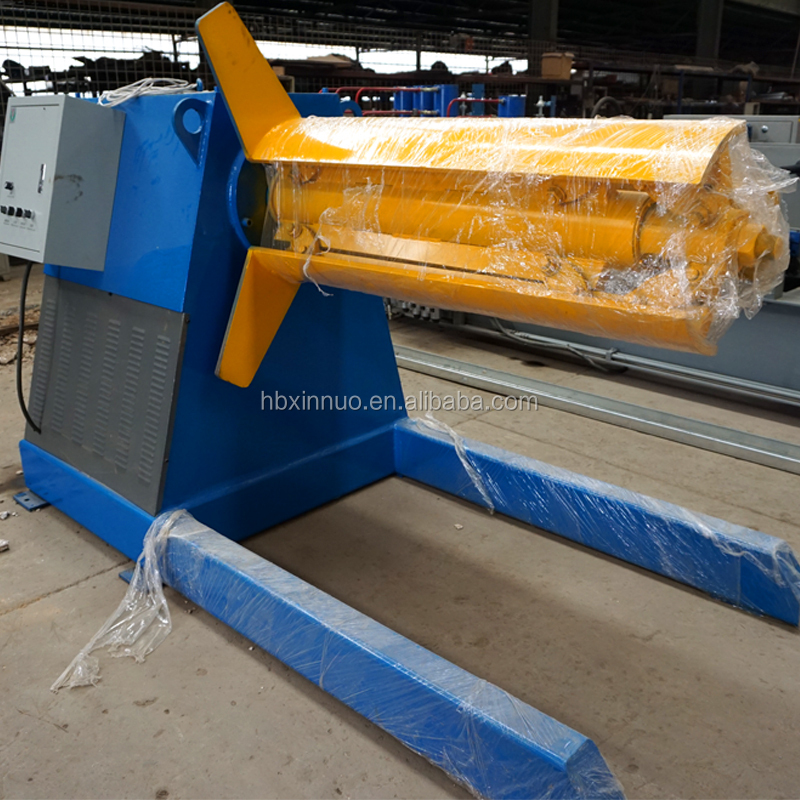

5-Ton Sheet Metal Decoiler Leveler
This decoiler leveler machine handles sheet metal coils up to 5 tons. It unwinds and straightens metal sheets, preparing them for further processing.
Technical Specifications
Product Overview
High-Efficiency 5-Ton Decoiler Leveler
This industrial-grade machine is designed to handle sheet metal coils up to 5 tons, combining decoiling and leveling functionalities into a single robust unit. It effectively unwinds and straightens metal sheets, removing imperfections and internal stresses to ensure a flat, consistent material feed for subsequent processing. Ideal for integration into automated production lines, it enhances productivity while maintaining high precision for various metal forming applications.
Technical Specifications
Load Capacity
5 Tons
Maximum Coil Weight
- Raw Material Width
- 1250 mm
- Compatible Materials
- Color Steel CoilSteel CoilGalvanized Coil
- Machine Dimensions
- 1.7 x 1.7 x 1.5 m
- Total Weight
- 2.5 Tons
Construction Details
Structural Components
- Optimized sidewall connect plate thickness
- U-Steel sidewall connect bars
- High-precision roller materials
- Integrated tile box for material handling
- Main Forming Body
- H-Steel construction for maximum stability
Operational Features
Key Functions
- Motor-driven decoiling mechanism
- Adjustable leveling rollers for curvature removal
- Variable speed control
- Adjustable settings for various coil widths and thicknesses
Logistics & Delivery
Packaging Details
| Component | Packaging Method |
|---|---|
| Main Machine | Nude / Unpacked in container |
| Computer Control Box | Wooden frame / Wooden packaging |
- Lead Time
- 20 days
