5-Ton Sheet Metal Decoiler Leveler
This decoiler leveler machine processes sheet metal coils up to 5 tons. It combines the functions of decoiling and leveling, ensuring smooth and precise material feeding for subsequent processing.
Technical Specifications
Overview

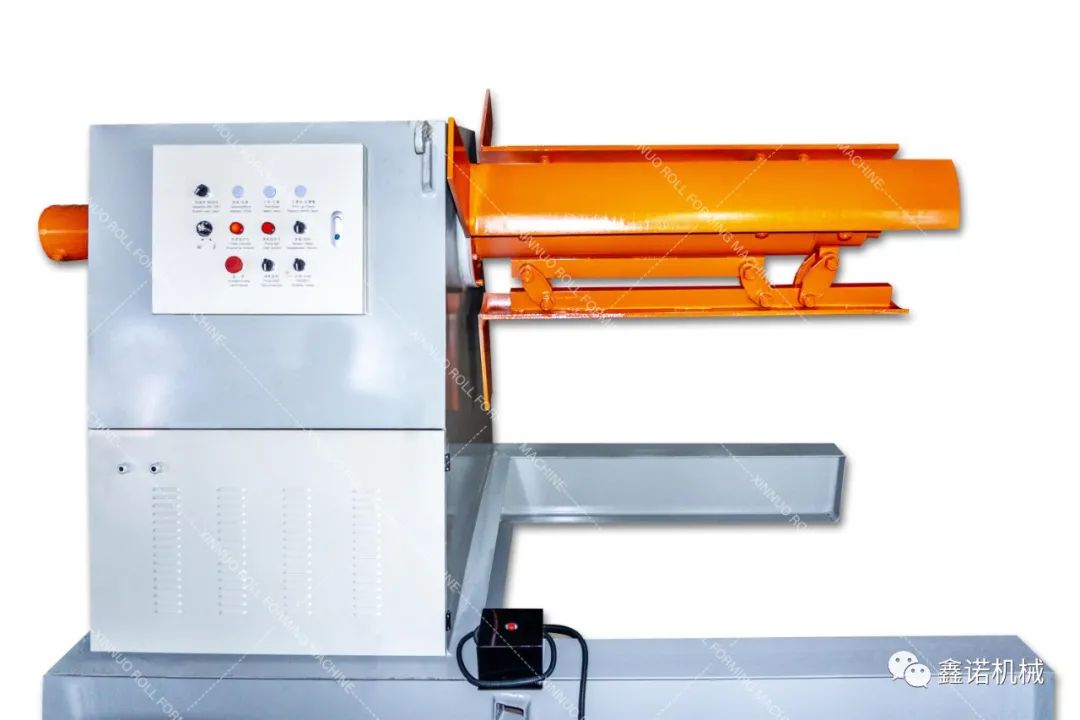

High-Efficiency 5-Ton Decoiler Leveler
This robust decoiler leveler machine is designed for the professional uncoiling and leveling of sheet metal coils weighing up to 5 tons. It ensures a smooth, flat, and consistent material feed, which is essential for high-quality downstream metal forming and production processes. By combining decoiling and leveling into a single unit, it optimizes workshop space and enhances overall manufacturing efficiency.
Technical Capabilities
Load Capacity
5 Tons
Max Coil Weight
- Compatible Materials
- Color Steel CoilSteel CoilGalvanized Coil
- Maximum Raw Material Width
- 1250 mm
Physical Specifications
- Machine Dimensions
- 1.7m x 1.7m x 1.5m
- Total Weight
- 2.5 Tons
Control System

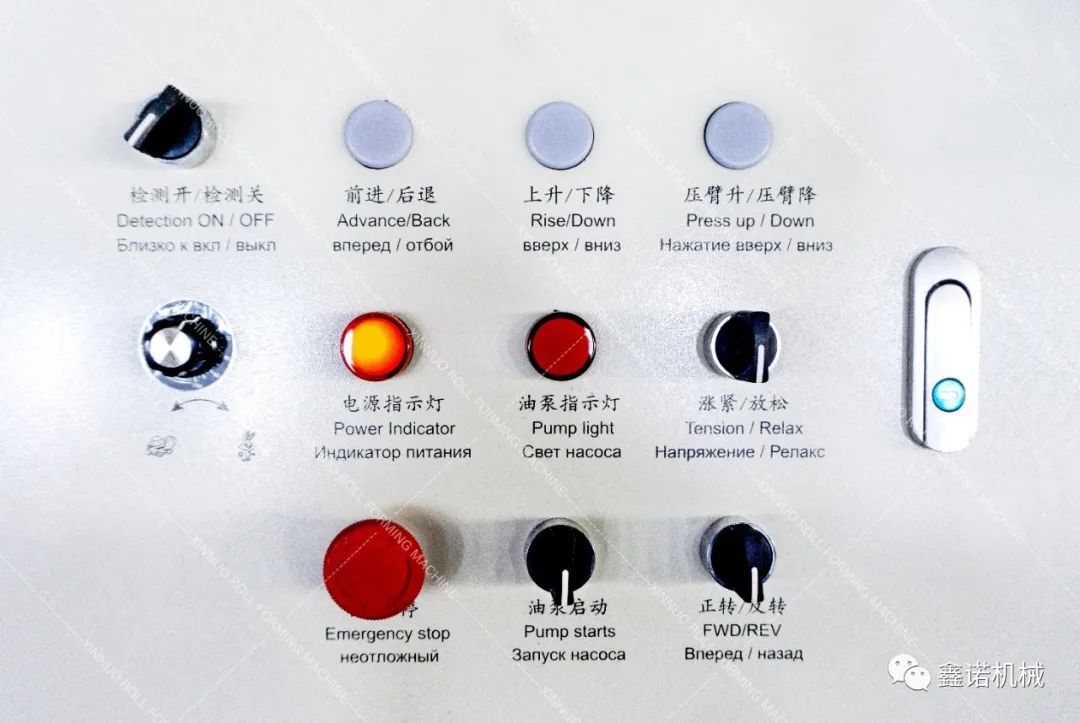

Control Panel Functions
- Detection ON/OFF
- Advance/Back navigation
- Rise/Down adjustment
- Press Up/Down arm control
- Tension/Relax adjustment
- Forward/Reverse (FWD/REV) switch
- Emergency Stop safety mechanism
- Pump Start/Stop
Interface Languages
EnglishChineseRussian
Logistics & Delivery
Packaging Configuration
| Component | Packaging Method |
|---|---|
| Main Machine | Nude / Unpacked in container |
| Computer Control Box | Wooden frame / Wooden packaging |
- Standard Delivery Detail
- 20 days
