5 inch Stainless Steel Grinding Wheel

This 5-inch grinding wheel is designed for stainless steel and metal applications. It offers efficient material removal and long-lasting performance.

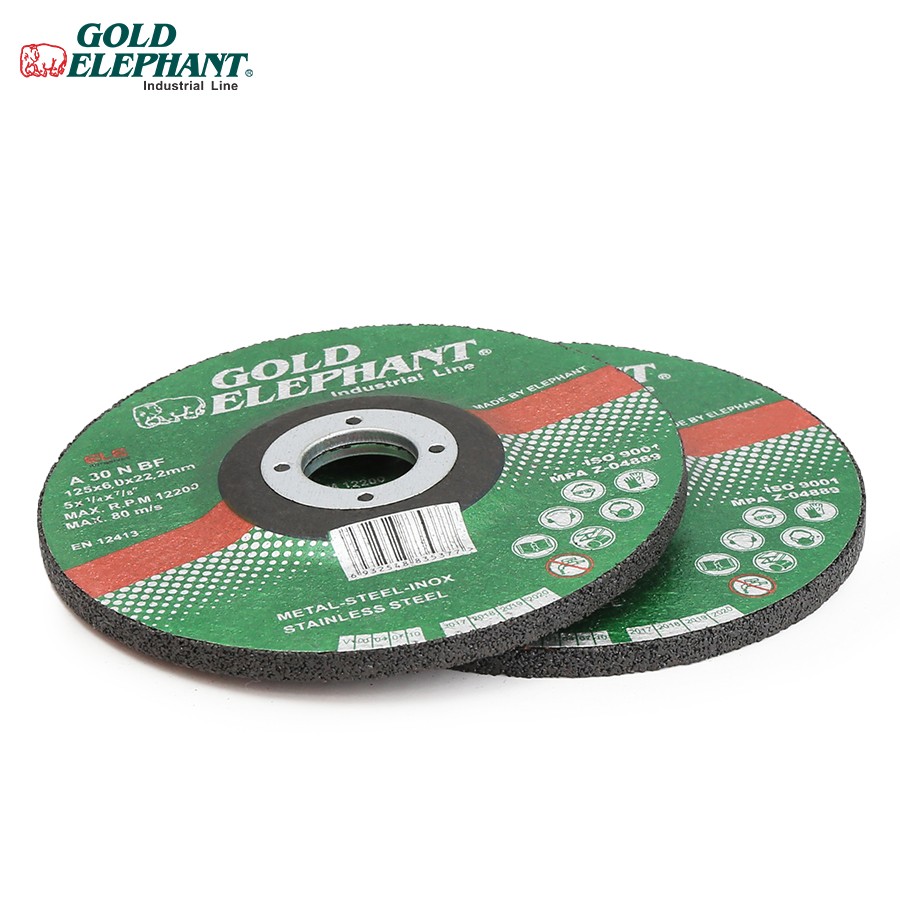

Gold Elephant stainless steel grinding wheels 5 inch grinding discs - Image 1

Technical Specifications

Product Overview

Professional Grade Stainless Steel Grinding Wheel

This 5-inch grinding wheel is specifically engineered for high-performance material removal on stainless steel and metal surfaces. Featuring a reinforced design with precious corundum, it ensures aggressive and efficient grinding action while maintaining safety standards. The disc is free from iron and sulphur to prevent surface contamination, making it an ideal choice for industrial metalworking applications.

Technical Specifications

Dimensions

125 mm
Diameter
6 mm
Thickness
22.2 mm
Bore Diameter

Performance Ratings

12,200 RPM
Max RPM
80 m/s
Max Speed

Construction Features

  • Precious corundum composition
  • Double-net fiberglass reinforcement
  • Metal ring center
  • Iron and sulphur free

Abrasive Type
A 30 N BF

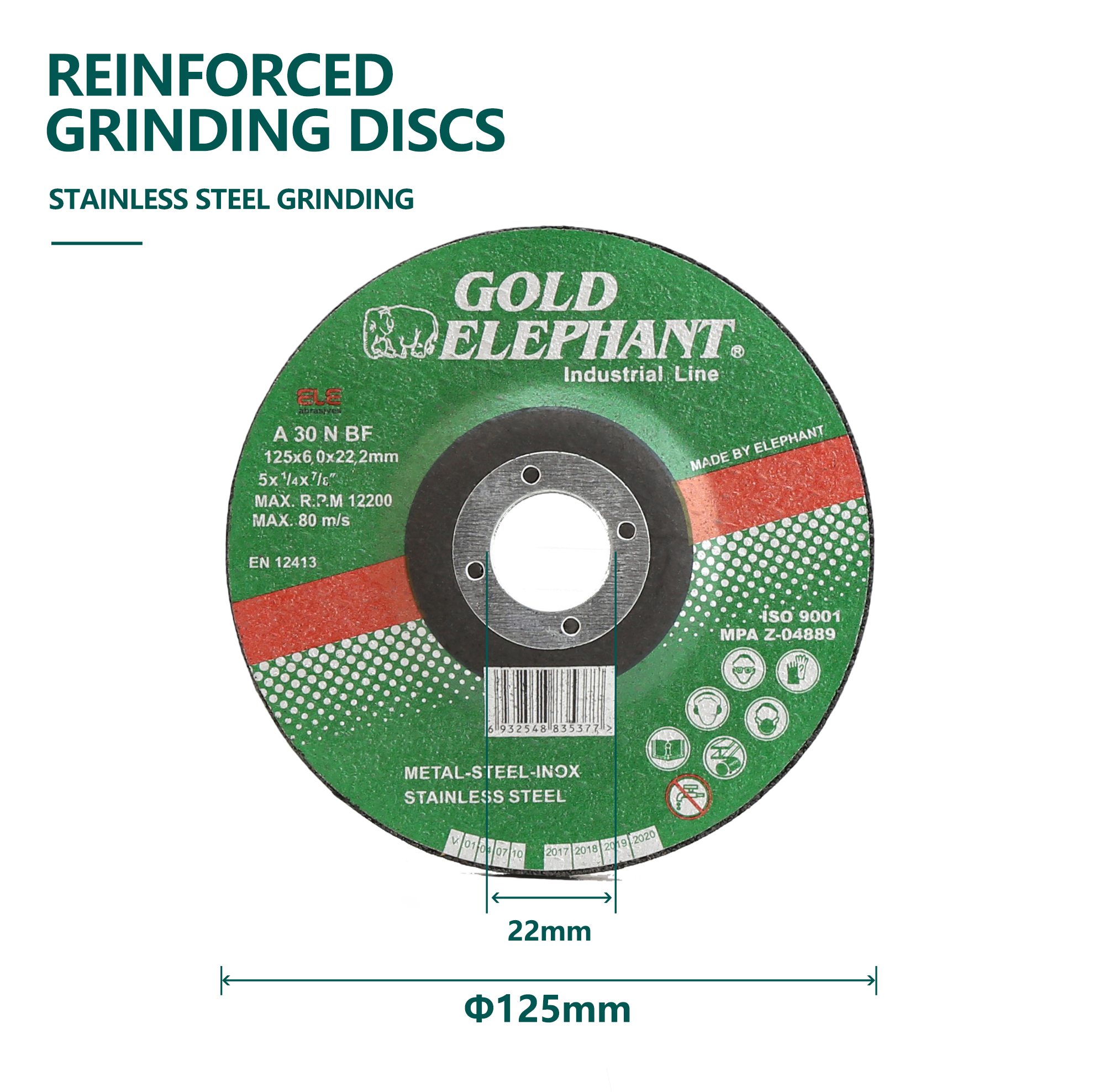

Reinforced grinding disc showing technical specifications and markings
Technical layout showing dimensions and safety ratings.

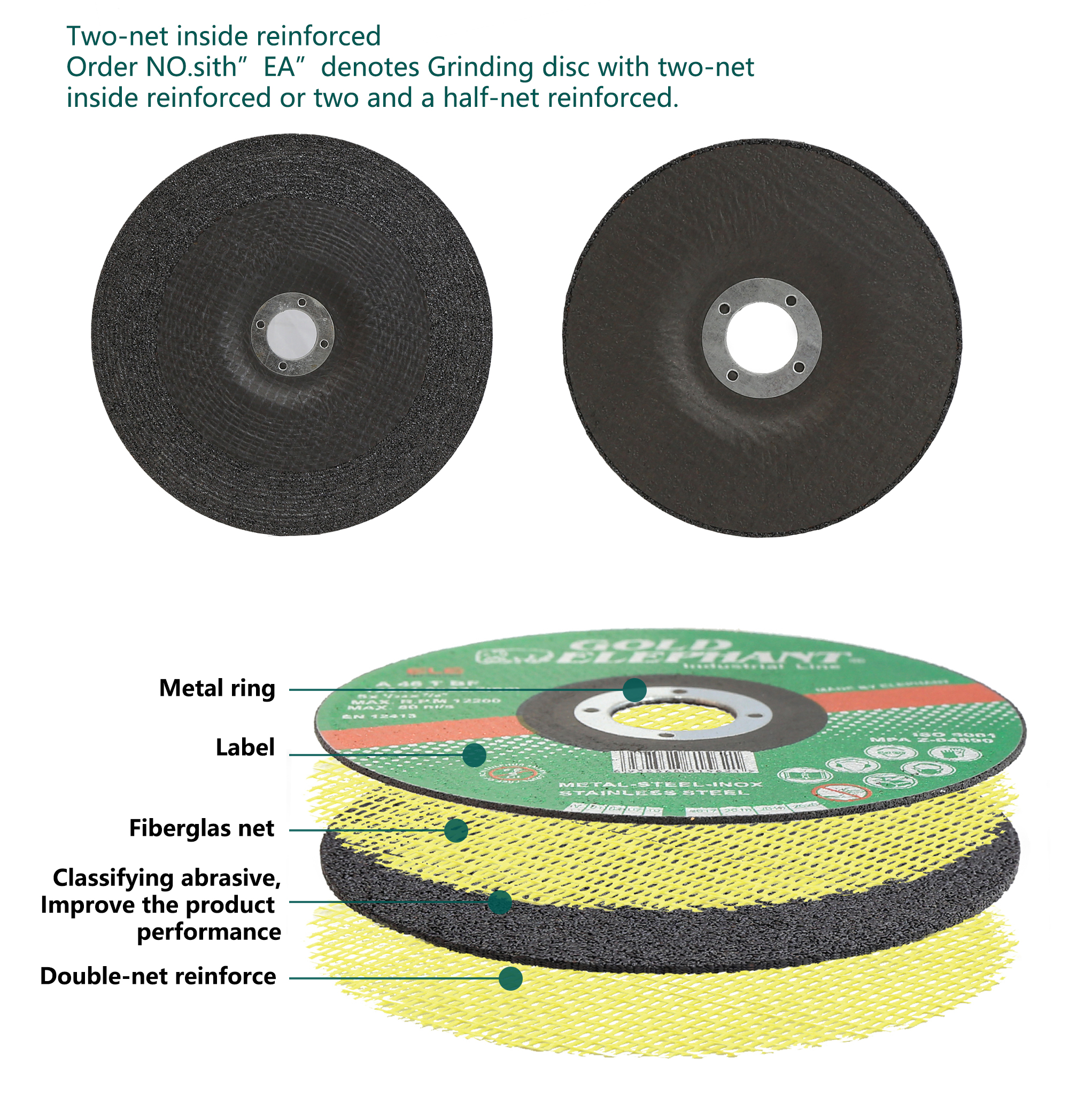

Diagram showing the internal reinforcement structure of the grinding wheel
Internal view of the double-net fiberglass reinforcement and metal ring structure.

Compliance & Certification

Certifications
ISO 9001MPA Z-04889EN 12413

Applications

Compatible Materials

Stainless SteelMetalStainless Steel Casting

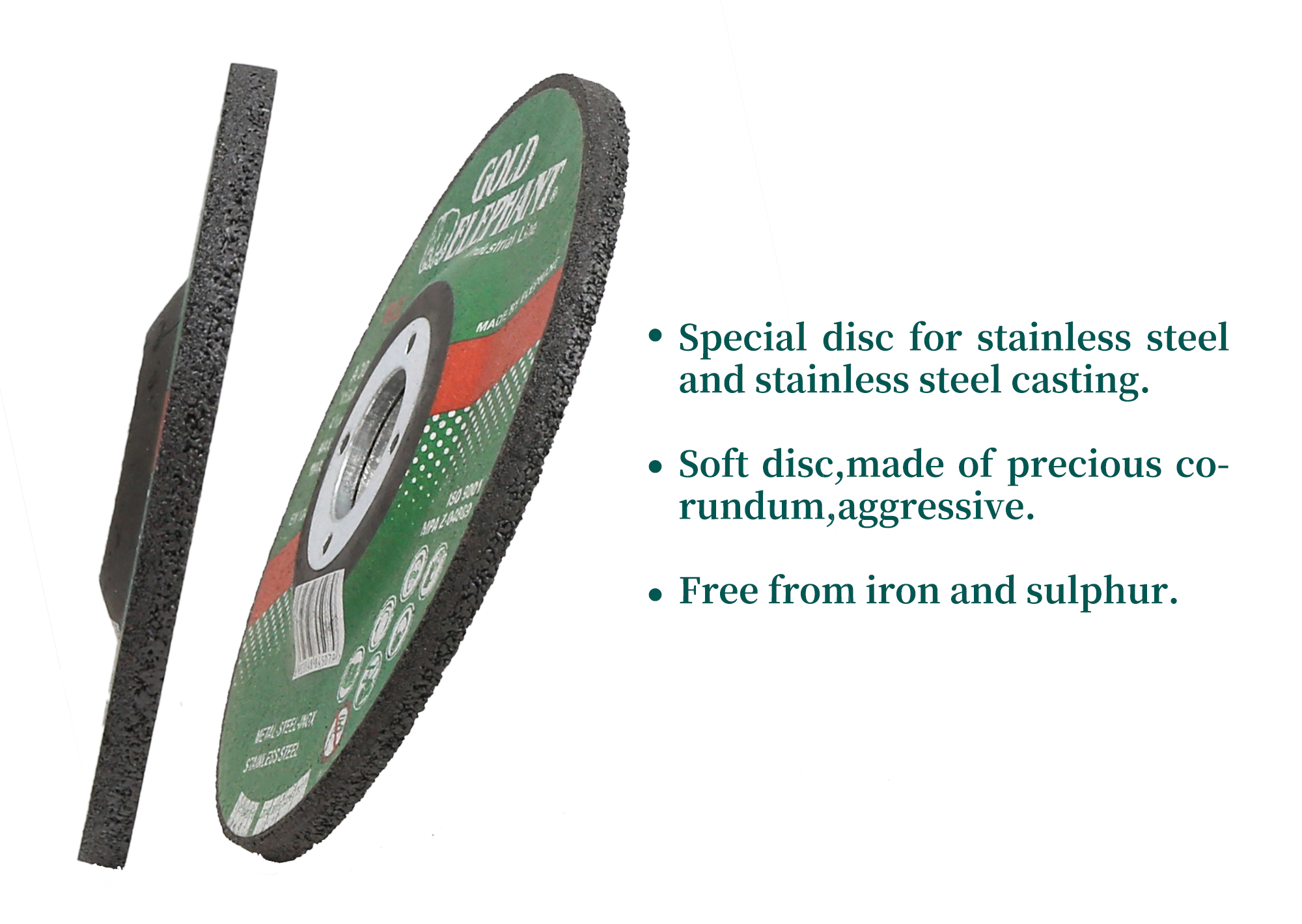

Grinding disc close-up highlighting material composition
Specialized disc composition for stainless steel casting and contamination-free grinding.
