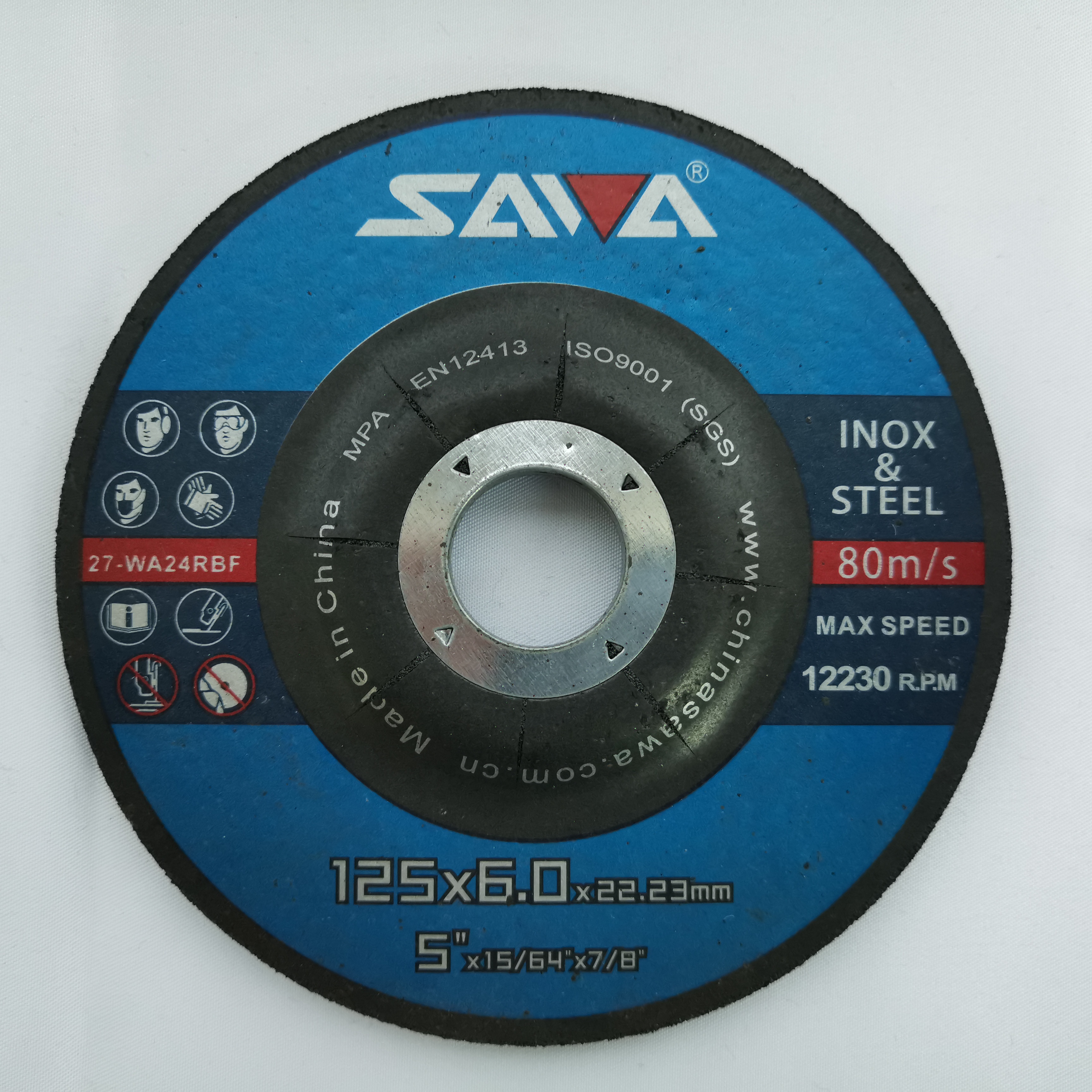

5-Inch Metal Grinding Wheel for Angle Grinders
This 5-inch metal grinding wheel is designed for efficient material removal and surface preparation on metal surfaces. It is suitable for grinding welds, deburring, and shaping metal surfaces using angle grinders.
Technical Specifications
Product Overview
Professional Metal Grinding Performance
This 5-inch grinding wheel is engineered for high-efficiency material removal and surface preparation across various metal types. Designed with a T27 profile, the wheel utilizes a reinforced resinoid bond to ensure safety and durability during demanding applications. It is optimized for use with standard angle grinders, offering an ideal balance of speed and precision for grinding welds, deburring, and shaping.
Technical Specifications
Dimensions
125 mm
Diameter
6 mm
Thickness
22.23 mm
Arbor Hole
Performance Limits
80 m/s
Max Operating Speed
12,230 RPM
Max RPM
Construction & Compliance
Construction Materials
- Resinoid bond
- Fiberglass reinforcement
- Alumina oxide
- White alumina oxide
- Compliance & Standards
- EN 12413ANSI B7.1ISO 9001
Application
Suitable Applications
| Abrasive Type | Compatible Materials |
|---|---|
| Alumina Oxide | Carbon steel, annealed iron, hard bronze |
| White Alumina Oxide | Hardened steels, alloy steels, stainless steel, high carbon steels |
