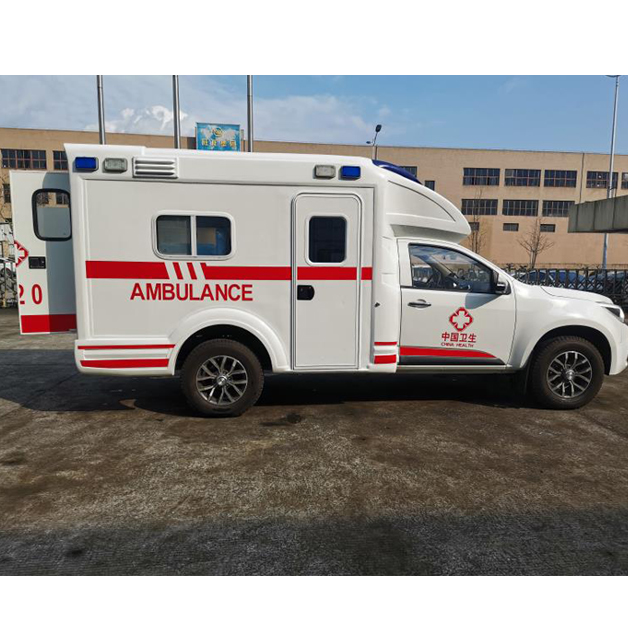

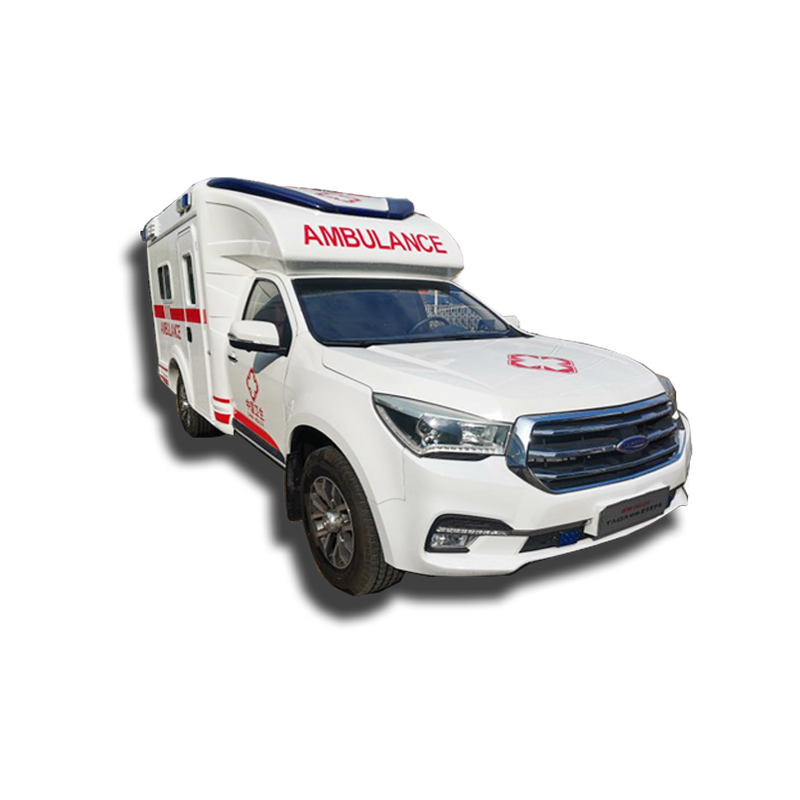

4x4 Negative Pressure Mobile Ambulance
This 4x4 negative pressure ambulance truck is designed for the safe and efficient transport of patients. Its negative pressure system filters and purifies the air, preventing the spread of airborne pathogens.
Technical Specifications
Overview
Professional 4x4 Negative Pressure Ambulance
This advanced 4x4 negative pressure ambulance is engineered for safe patient transport, particularly in high-risk infection scenarios. Featuring a robust chassis for all-terrain capability and a specialized square cabin, it integrates high-efficiency purification systems that filter 99.99% of aerosol particles. With smart telematics for remote medical data transmission and a user-friendly three-zone interior layout, this vehicle ensures optimal clinical performance and safety.
Vehicle Performance
Performance Metrics
130 PS
Horsepower
140 km/h
Max Speed
96 kw
Engine Power
510 m3/h
Ventilation
Technical Specifications
| Parameter | Value |
|---|---|
| Drive Type | 4x4 |
| Transmission | 5 Forward, 1 Reverse |
| Displacement | 2999 ml |
| Wheelbase | 3406 mm |
| Fuel Tank | 53 L |
| Approach/Departure Angle | 33/20° |
Medical Cabin
Interior Design Features
- Electric smart pedals on sides and rear
- One-arm operation concept device brackets
- GPS + BeiDou dual-mode monitoring
- Convenient patient stretcher system
- Smart truck networking for remote consultation
- Safety & Sterilization
- Negative Pressure System99.99% Particle Filtration3-Zone LayoutPhysical Isolation BarrierSmart Emergency Dispatch
