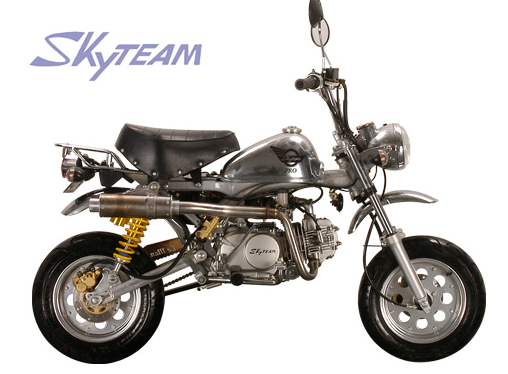

49cc Air-Cooled 4-Stroke Motorcycle
This motorcycle has a 49cc air-cooled, 4-stroke engine with a 4-gear pedal transmission. It features both electric and kick starter systems and a fuel tank capacity of 4.5L.
Technical Specifications
Overview
Compact Urban Mobility
The 49cc 4-stroke motorcycle is a compact and efficient solution designed for urban commuting and recreational use. Featuring a robust air-cooled engine, it offers reliable performance and excellent maneuverability in dense traffic. Its lightweight design and ergonomic seat ensure a smooth and enjoyable riding experience for professional and personal transport.
Engine & Performance
Key Performance Metrics
1.8 kW
Max Power
3 Nm
Max Torque
42 km/h
Top Speed
Engine Technical Details
| Feature | Specification |
|---|---|
| Engine Type | 4-stroke, single-cylinder, 2-valve SOHC |
| Displacement | 49cc |
| Compression Ratio | 8.8:1 |
| Fuel System | DENI 17C Carburetor |
| Ignition | CDI |
| Starter | Electric & Kick |
Dimensions & Capacity
Physical Dimensions
| Metric | Measurement |
|---|---|
| Length | 1500mm |
| Width | 720mm |
| Height | 1000mm |
| Seat Height | 710mm |
| Wheelbase | 1060mm |
| Dry Weight | 64kg |
Chassis & Suspension
Suspension System
- Front: Telescopic Forks (96mm travel)
- Rear: Spring & Oil Double Shock (50mm travel)
Logistics
- Container Loading
- 42/84/126 units per container
