48KW Power Generator Rotor

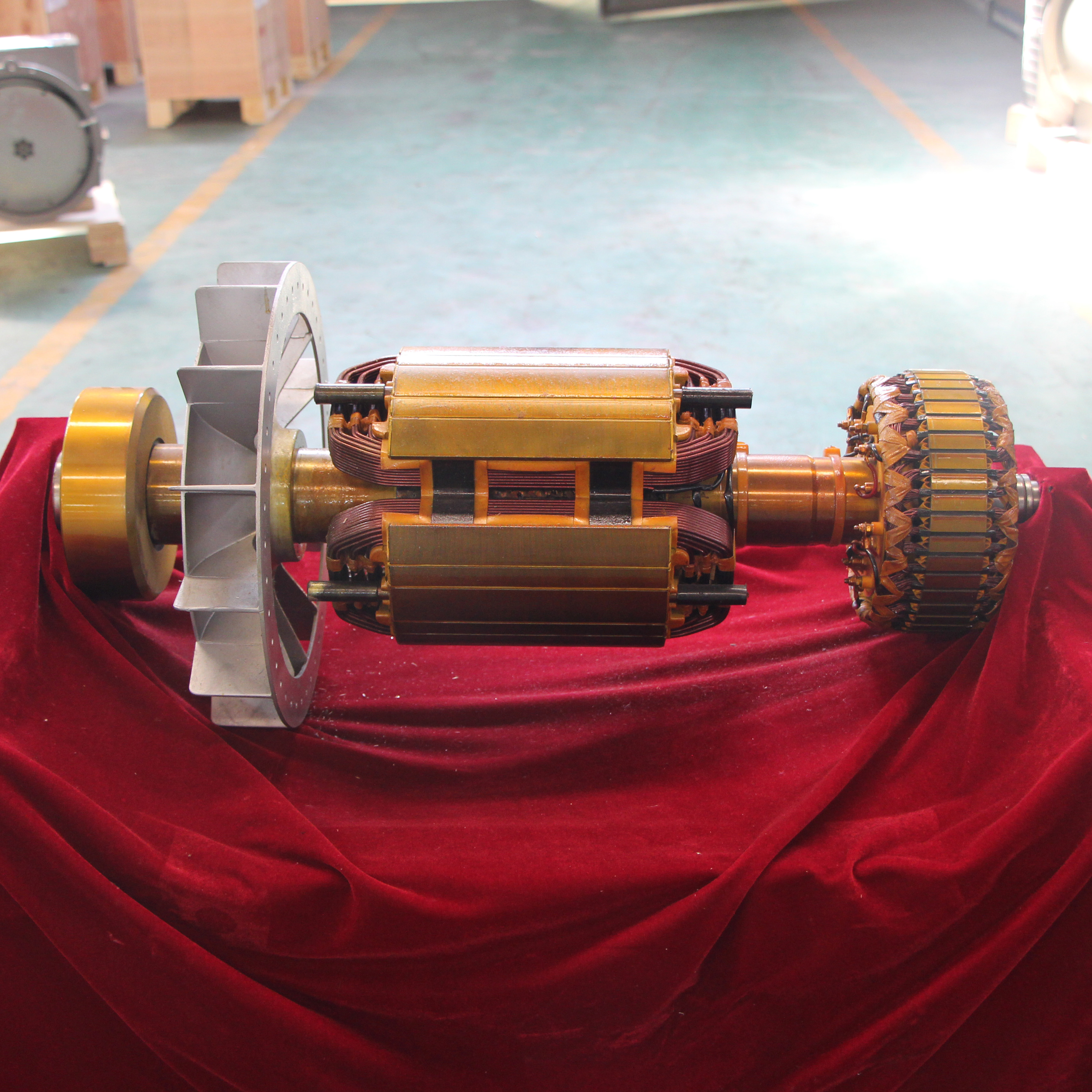

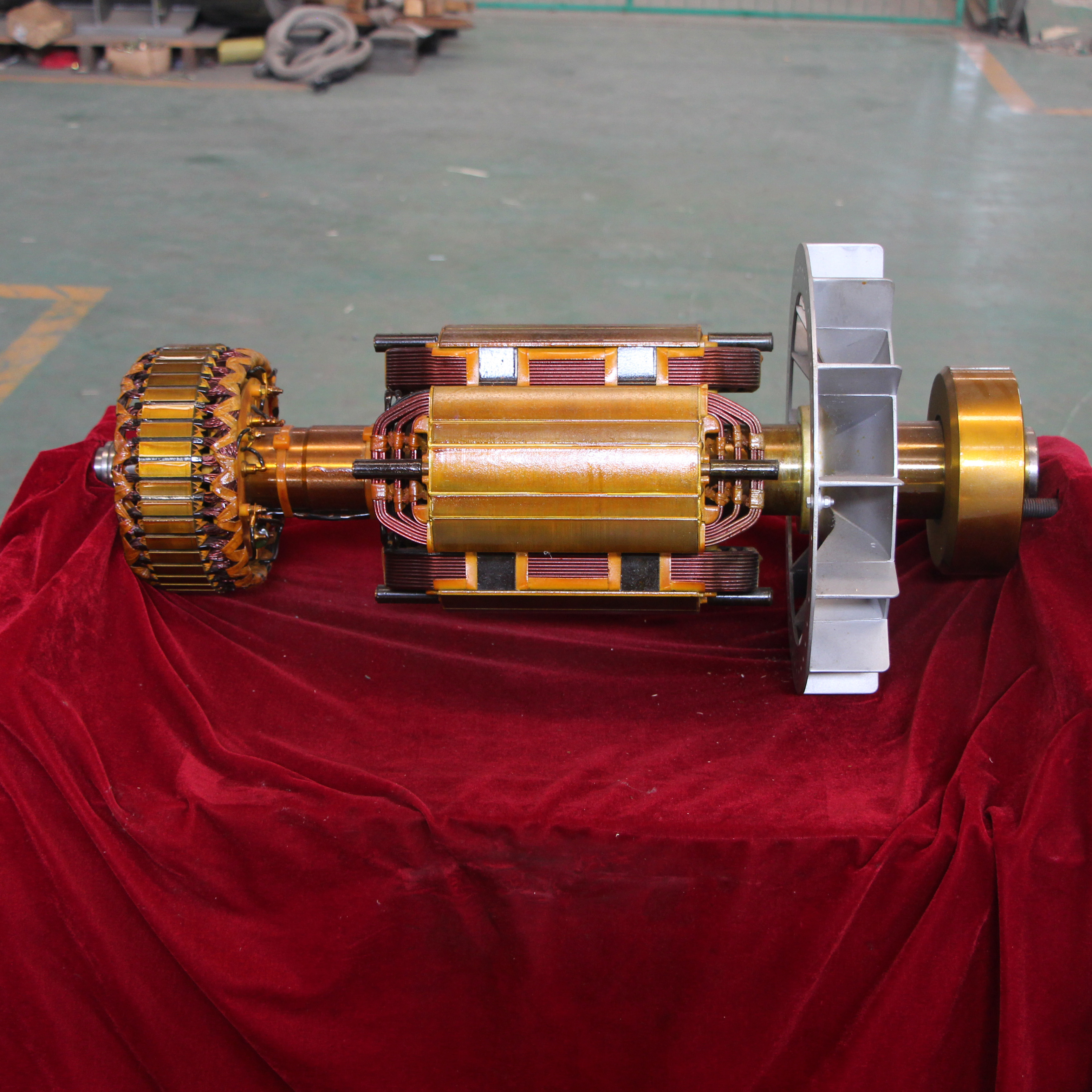

This 48KW rotor is designed for power generation applications. It features robust construction with copper windings and a cooling fan for efficient heat dissipation.
Technical Specifications
Overview
High-Performance Generator Rotor
This 48KW power generator rotor is engineered for demanding industrial power generation applications. Featuring 100% copper winding wire and advanced vacuum varnish treatment, it ensures superior electromagnetic efficiency and thermal durability. Designed with a 2/3 pitch and H-class insulation, this component provides reliable, consistent power output for critical energy systems.
Technical Specifications
Power Output
48 KW
Rated Power
60 KVA
Capacity
91 A
Electric Current
Electrical Characteristics
| Parameter | Value |
|---|---|
| Voltage | 380V |
| Frequency | 50Hz |
| Rotating Speed | 1500 RPM |
| Voltage Regulation | ≤1% |
Construction & Quality
Build Quality
- 100% Copper winding wire
- Vacuum varnish applied twice
- Insulation Class H
- 2/3 Pitch design
- Mechanical Specifications
- Model: WR224EIP Rating: 22AVR: SX460Connector: SAE3/11.5
Service & Warranty
Warranty & Support
2 Years WarrantyPre-delivery TestingQuick Delivery
