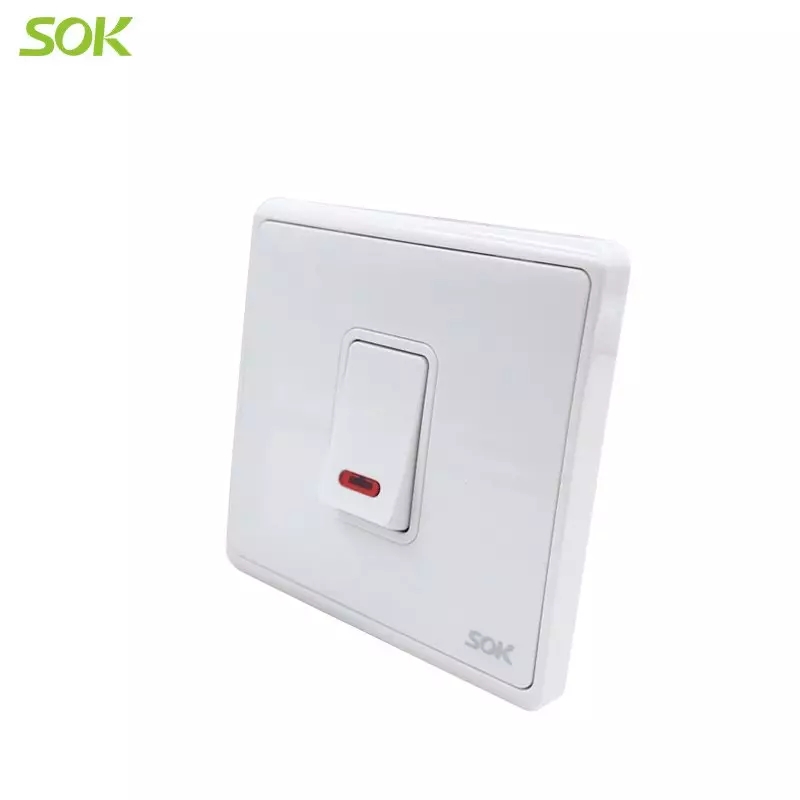

45A Double Pole Switch with Neon Indicator
This 45A double pole switch includes a neon indicator for clear on/off status. Its design integrates the frame and middle seat, enhancing the product's strength and resistance to deformation.
Technical Specifications
Overview
High-Capacity 45A Double Pole Switch
This 1 Gang 45A Double Pole Switch is engineered for high-power applications, featuring a built-in neon indicator for clear visual status confirmation. Constructed from high-quality flame-retardant PC and premium brass components, it ensures maximum safety and durability for heavy-duty electrical circuits. The integrated frame design provides superior structural strength, preventing deformation during installation and long-term use.
Technical Performance
Electrical Ratings
45 A
Rated Current
250 V
Rated Voltage
- Service Life
- More than 10 years (tested for 40,000 switching cycles)
- Standards Compliance
- IEC 60669-1:2017CECBSASOGCC
Physical Characteristics
Primary Materials
- High-quality Polycarbonate (PC)
- Brass conductive parts
- Product Size
- 86 x 86 mm
- Color
- White
Product Features
Key Advantages
- Integrated frame and middle seat for enhanced strength
- Protective door design for increased electrical safety
- Clean, simple, and delicate aesthetic
- Neon indicator for visual power status
- Lower price point compared to standard BS products
Logistics & Supply
Packaging Configuration
| Unit | Quantity |
|---|---|
| Inner Box | 8 |
| Export Carton | 80 |
- Minimum Order Quantity
- 3000 PCS
- Accepted Payment Methods
- T/TL/CRMB
