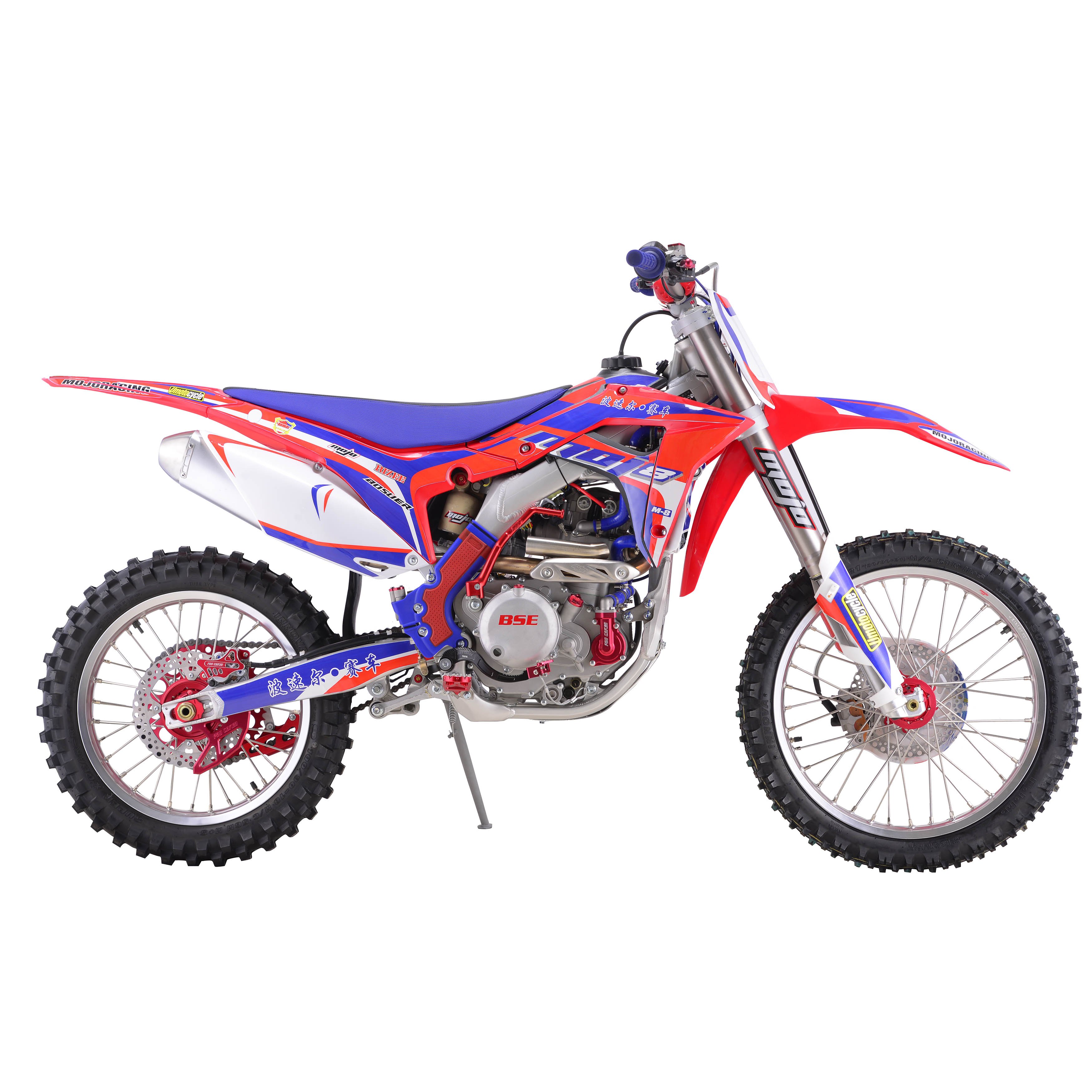

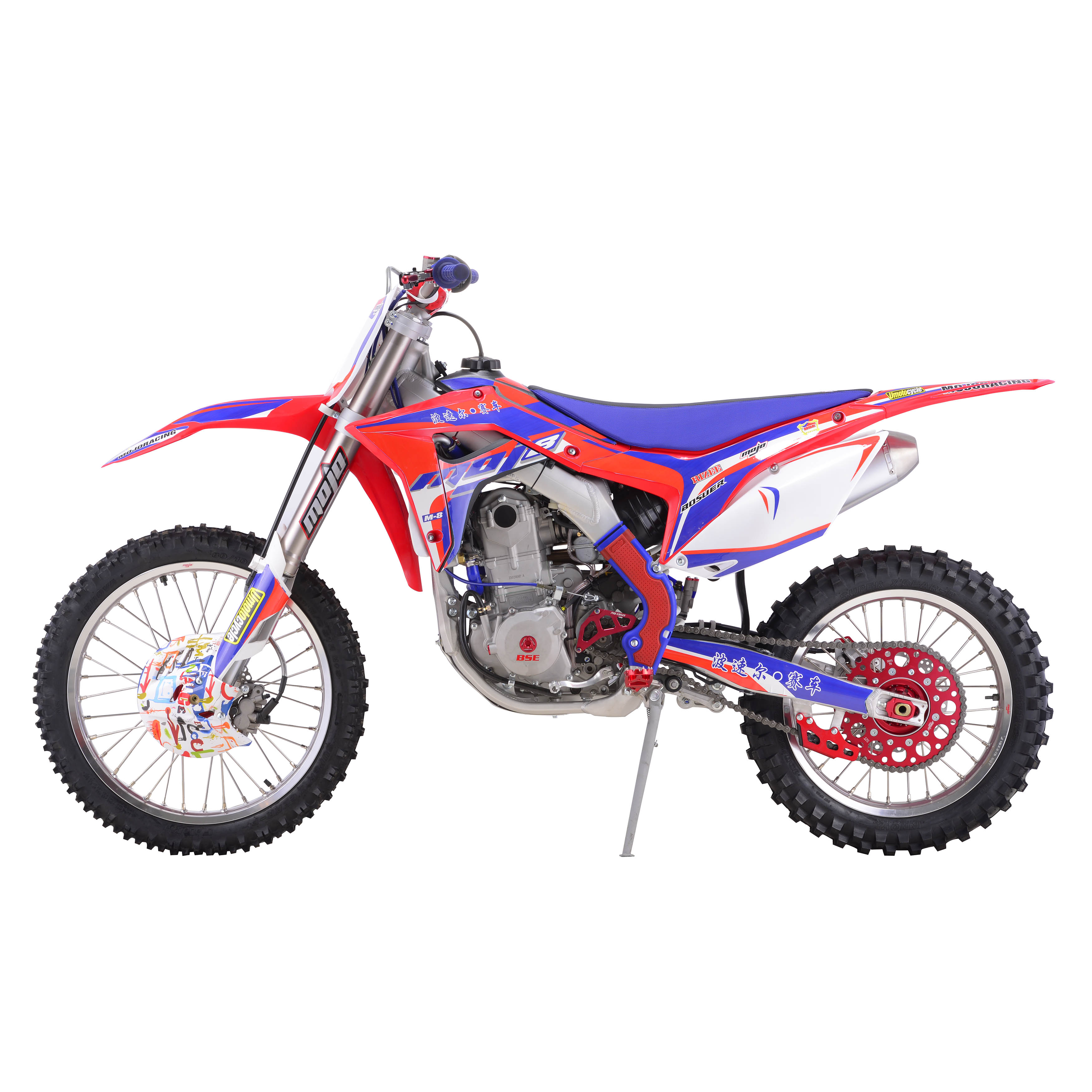

450cc Off-Road Dirt Bike
This 450cc dirt bike is designed for off-road adventures. It features a robust suspension system and a powerful engine for handling challenging terrains.
Technical Specifications
Overview
High-Performance 450cc Off-Road Machine
Engineered for professional racing and demanding off-road environments, this 450cc dirt bike delivers exceptional power and agility. It features a lightweight, high-strengthened forged alloy frame paired with a fully adjustable suspension system, allowing riders to fine-tune compression and rebound damping to their specific handling preferences. With its aerodynamic design and robust construction, this bike is built to provide reliable performance and control on the most challenging terrains.
Engine & Performance
Key Performance Metrics
450 cc
Displacement
32 kW
Max Power
9,000 r/min
Rated RPM
10.7 :1
Compression Ratio
Engine Configuration
- Type: Vertical, single cylinder, 4-stroke
- Cooling: Water cooling
- Start Method: Electric and kick start
- Transmission: 6-gear manual
- Bore & Stroke: 94 x 64 mm
- Carburetor: PZ38
Chassis & Suspension
Chassis & Frame
- Frame: High-strengthened forged alloy with reinforced tubing
- Triple Clamp: Forged alloy
- Handle Bar: 7XXX alloy fat bar
- Rim: 7 series alloy
Suspension Details
| Component | Specification |
|---|---|
| Front Fork | 54/60-930 mm, adjustable damping |
| Rear Shock | 480 mm, external air bag, adjustable damping |
- Braking System
- Hydraulic SystemFront Disc 240mmRear Disc 240mm
Dimensions & Capacity
Physical Dimensions
| Feature | Measurement |
|---|---|
| Seat Height | 940 mm |
| Wheel Base | 1450 mm |
| Ground Clearance | 290 mm |
| Overall Dimensions | 2170 x 820 x 1270 mm |
Weight and Capacity
122 kg
Net Weight
90 kg
Max Load
6.5 L
Fuel Capacity
