42HS Series 1.8 Degree Hybrid Stepper Motor
The 42HS Series stepper motor is a hybrid stepping motor with a 1.8-degree step angle. It is suitable for applications such as professional printing equipment, intelligent stage lighting, and industrial automation.
Technical Specifications
Product Overview
42HS Series Hybrid Stepper Motor
The 42HS Series is a high-performance hybrid stepper motor designed for precision motion control. Engineered to combine the advantages of permanent magnet and reactive technologies, these motors deliver excellent torque, speed, and positioning resolution. This series is an ideal solution for industrial automation, robotics, and semiconductor equipment, offering reliable performance across various demanding applications.
Core Specifications
- Step Angle
- 1.8 degrees
- Motor Type
- Hybrid
- Phase
- 2
- Certifications
- CCCCEISO
Environmental and Electrical
- Insulation Class
- B (130°C)
- Operating Temp Range
- -20°C to +50°C
- Max Temperature Rise
- 80 °C

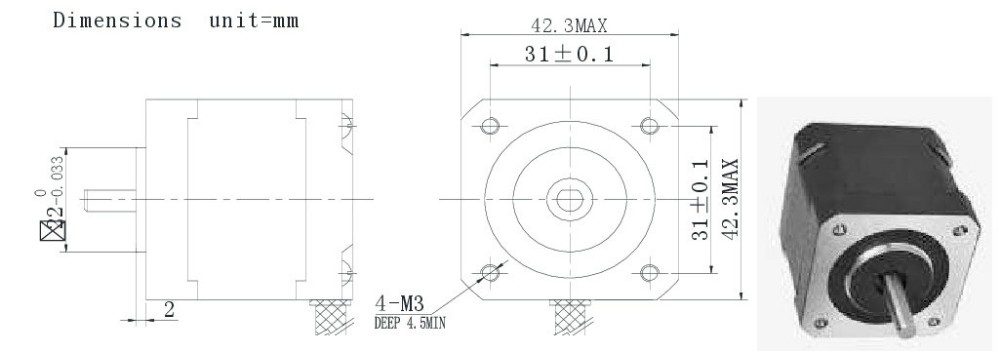

Mechanical Dimensions
- Frame Size
- 42 mm
- Length Range
- 40-54 mm
- Mounting Hole Pattern
- 4-M3
Performance Data
Performance Accuracy
| Metric | Value |
|---|---|
| Step Angle Accuracy | ±5% |
| Resistance Accuracy | ±10% |
| Insulation Resistance | 100 MΩ min |
| Dielectric Strength | 500VAC/min |
