40W-450W Polycrystalline PERC 182 Solar Panel
This polycrystalline PERC 182 solar panel is engineered for optimal energy conversion. It offers a power output ranging from 40W to 450W, suitable for various solar energy systems.
Technical Specifications
Overview
High-Efficiency PERC Solar Solution
This high-performance solar panel utilizes advanced PERC (Passivated Emitter Rear Cell) technology and 182mm cells to deliver optimal energy conversion. Engineered for durability and reliability, it features a robust frame, IP68 waterproof rating, and a specialized fluoride-coated backsheet for superior UV resistance. Available in a versatile power range from 40W to 450W, this polycrystalline solution is ideal for residential, commercial, and industrial energy projects.
Key Features
Environmental Resistance

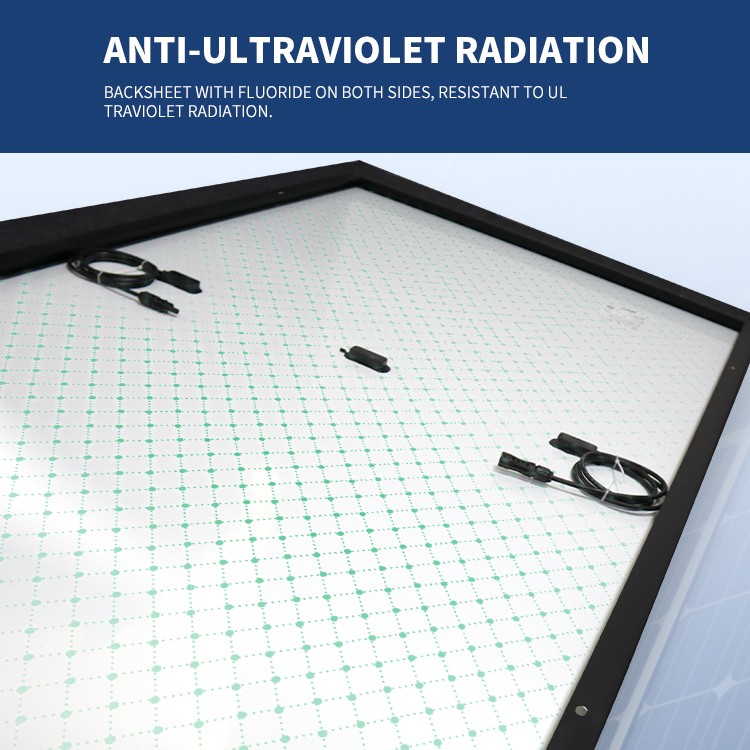

Anti-UV RadiationFluoride-coated BacksheetUL Compliant
- Key Advantages
- Anti-PIDCrack-proof GlassHigh Conversion RateGreen EnergyReinforced ProtectionIP68 Waterproof
Technical Specifications
- Power Output Range
- 40W - 450W
- Waterproof Rating
- IP68
- Cell Technology
- Polycrystalline PERC 182
Performance Data
Model Specifications
| Model | Power (W) | Vmp (V) | Imp (A) | Voc (V) |
|---|---|---|---|---|
| SP040M | 40 | 18.24 | 2.2 | 21.8 |
| SP060M | 60 | 18.24 | 3.3 | 21.8 |
| SP080M | 80 | 18.24 | 4.4 | 21.8 |
| SP120M | 120 | 18.24 | 6.6 | 21.8 |
| SP160M | 160 | 18.24 | 8.8 | 21.8 |
| SP200M | 200 | 18.24 | 10.97 | 21.8 |
| SP240M | 240 | 18.24 | 13.2 | 21.8 |
| SP300M | 300 | 34.2 | 8.77 | 41.04 |
| SP360M | 360 | 34.2 | 10.53 | 41.04 |
| SP450M | 450 | 34.2 | 13.15 | 41.04 |
Applications
Suitable Environments
- Residential
- Factory
- Building
- Hotel
- Countryside
- Stadium
