40kWh All-In-One Energy Storage System with 15kW Inverter
This all-in-one energy storage system integrates a 40kWh lithium battery, a 15kW inverter, and a 240A solar charger. It provides reliable power for residential, commercial, and industrial environments, optimizing energy usage.
![40kwh All-in-one energy storage system [40kwh lithium battery +15kw inverter +240A solar charger + BMS] - Image 1](https://cdn.merheinflare.com/public-site/products/40kwh-all-in-one-energy-storage-system-40kwh-lithium-battery-15kw-inverter-240a-solar-charger-bms/1.jpg)

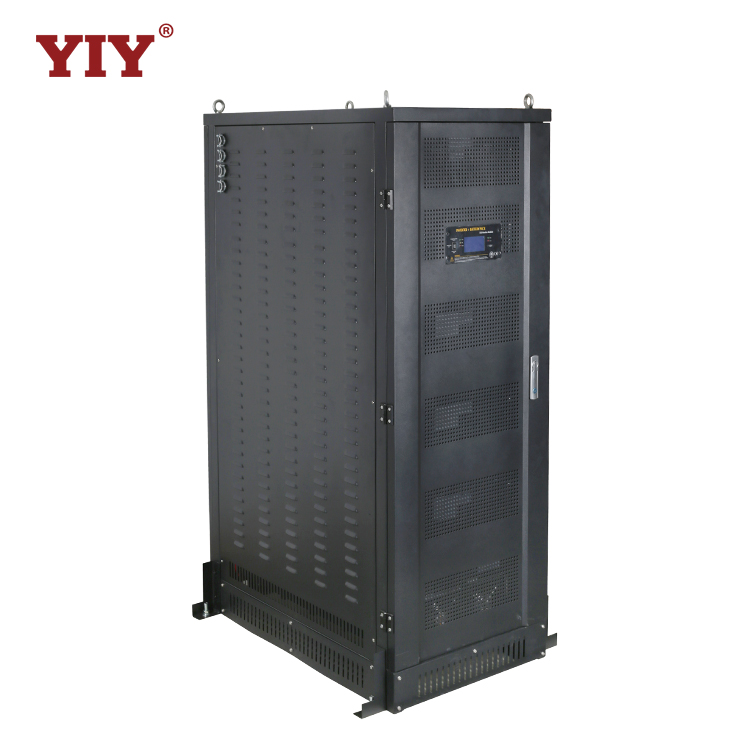

![40kwh All-in-one energy storage system [40kwh lithium battery +15kw inverter +240A solar charger + BMS] - Image 2](https://cdn.merheinflare.com/public-site/products/40kwh-all-in-one-energy-storage-system-40kwh-lithium-battery-15kw-inverter-240a-solar-charger-bms/0.jpg)
Technical Specifications
Overview
Comprehensive All-In-One Energy Solution
This integrated energy storage system combines a high-capacity 40kWh lithium battery with a powerful 15kW low-frequency pure sine wave inverter and a 240A solar charger. Designed for plug-and-play convenience, it features a standard 19-inch rack design for all modules, ensuring optimal performance and easy maintenance. It is an ideal solution for providing clean, reliable backup power for residential, commercial, industrial, and telecommunications applications.
Key Performance Metrics
Core Performance Metrics
40.96 kWh
Rated Energy
15 kW
Inverter Power
800 Ah
Battery Capacity
3,500 Cycles
Cycle Life
Battery System
Current Specifications
| Parameter | Rated Value | Max Value |
|---|---|---|
| Charge Current | 400A | 480A |
| Discharge Current | 800A | 960A |
- Rated Voltage
- 51.2 VDC
- Battery Type
- LiFePO4 (Lithium Iron Phosphate)
- Module Configuration
- 8.2kWh x 5PCS
Inverter Specifications
System Efficiency
- Inverter Mode: >88% (Peak)
- Line Mode: >95%
- Inverter Model
- HP15048R
- Output Waveform
- Pure Sine Wave
- Typical Transfer Time
- 4~6ms
Applications
- Primary Applications
- Off-grid AreasResidential BackupCommercial EnergyIndustrial BackupTelecommunicationsData Centers
Features & Protection
System Features
- Plug & Play Installation
- Optional Mobile APP Monitoring
- 19'' Standard Rack Module Design
- Built-in MPPT Solar Charger (60-145VDC)
- Active Balancing BMS Technology
Environmental Limits
Operating Temperature
| Mode | Temperature Range |
|---|---|
| Charging | 0~45℃ |
| Discharging | -20~60℃ |
Connectivity
Communication Interfaces
RS485CAN
