40kV 0.1uF High Voltage Pulse Capacitor

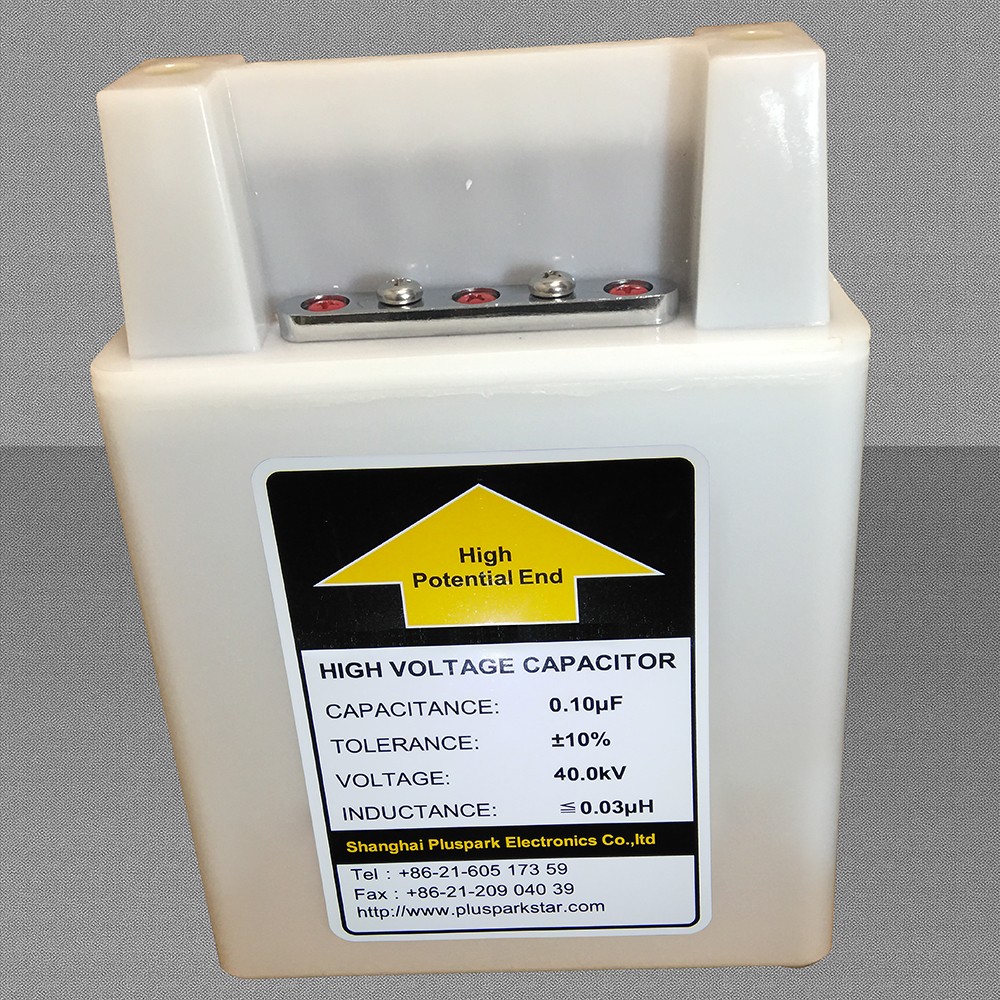

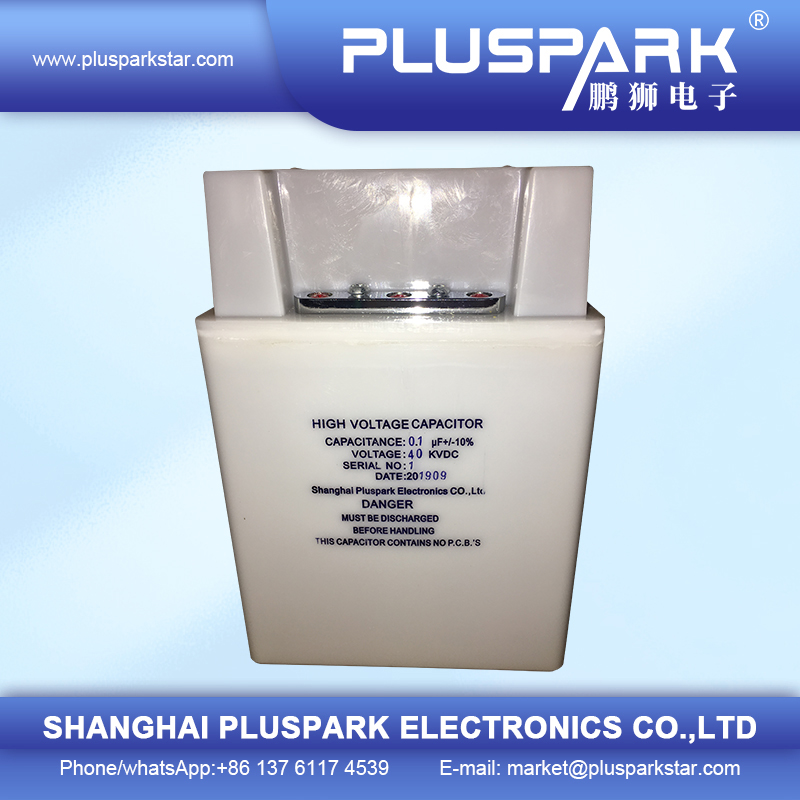

This high voltage pulse capacitor is designed for energy storage in pulse power applications. It features a 40kV rating, 0.1uF capacitance, and a low inductance plastic case.
Technical Specifications
Overview
High-Performance Pulse Capacitor
This high-voltage pulse capacitor is engineered for demanding energy storage and pulse discharge applications. Featuring a robust plastic case and low-inductance design, it provides reliable performance in environments such as medical equipment, laser machinery, and Marx generators. Designed for a 1Hz repetition rate, it ensures consistent operation for critical pulse power supply systems.
Electrical Specifications
- Capacitance
- 0.1 μF
- Rated Voltage (DC)
- 40 kV
- Capacitance Tolerance
- ±5%±10%
Performance Metrics
Key Performance Metrics
25 kA
Max Peak Current
25 A
Max RMS Current
20 %
Rated Voltage Reversal
- Max Repetition Rate
- 1 Hz
Physical Characteristics
Dimensions
| Width | Length | Height |
|---|---|---|
| 58 | 150 | 215 |
- Case Construction
- Plastic case
- Terminal Type
- Single-ended
Applications
Typical Applications
- Medical Equipment
- Laser Machinery
- Marx Generators
- Pulse Power Supplies
- Plasma Research
Safety
Safety Features
Low InductancePCB Free
