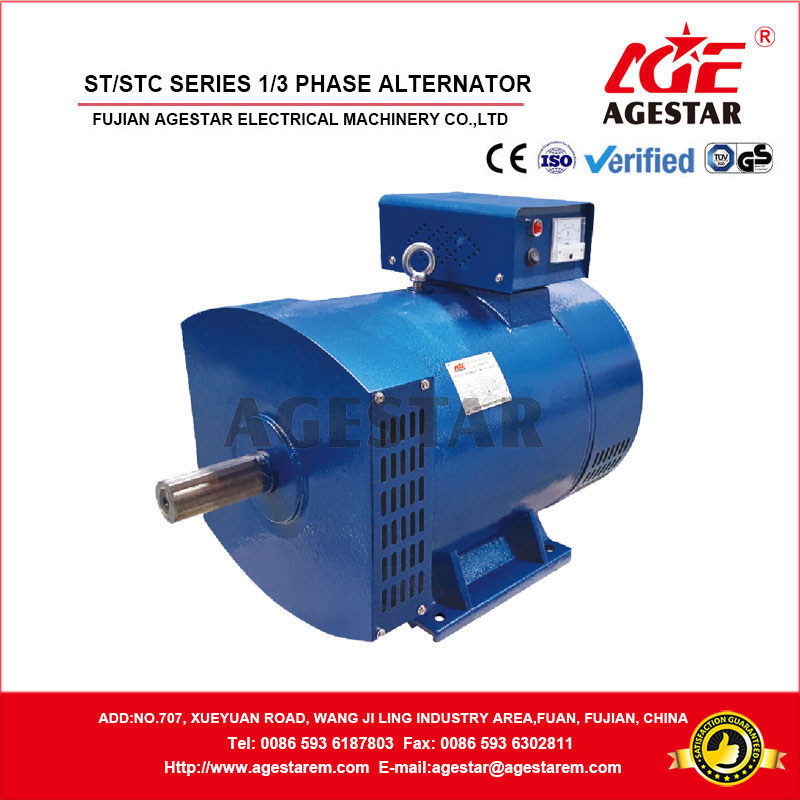

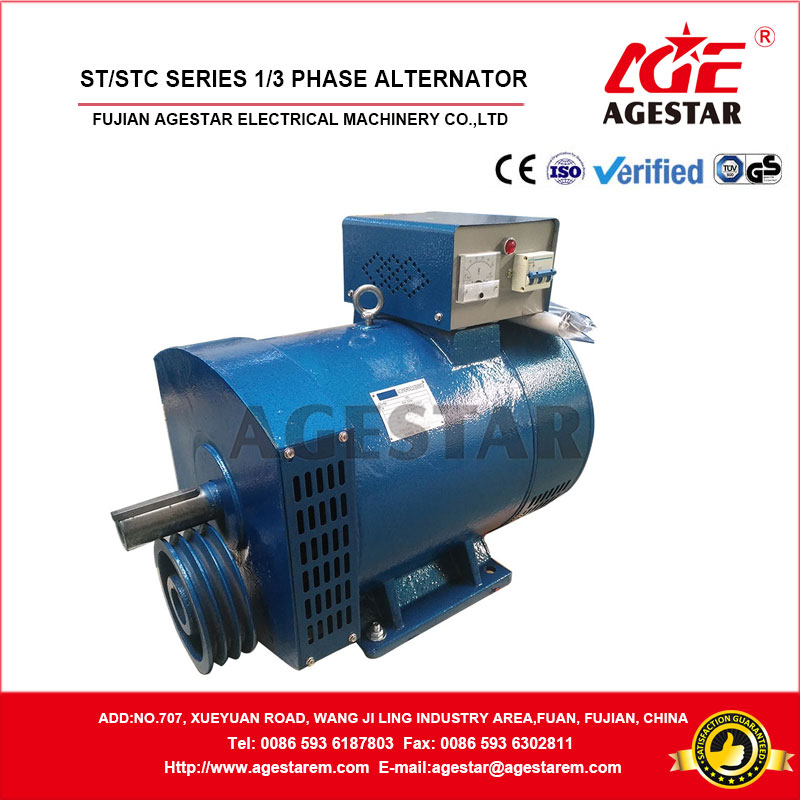

3kVA Brush Alternator
This 3kVA brush alternator is designed for power generation. It is suitable for various applications requiring single or three-phase power.
Technical Specifications
Overview
Reliable Power Generation
The ST series brush alternators are designed as versatile power units for small-capacity applications, ideal for lighting on ships and residential use in rural areas. Featuring a robust drip-proof construction with a salient pole rotating field, these units ensure stable voltage output through a self-excitation system. Their design follows IEC standards, making them globally compatible for various industrial and domestic power needs.
Performance Highlights
Key Performance Metrics
3 kVA
Rated Capacity
230 V
Standard Voltage
50 Hz
Frequency
Technical Specifications
Available Voltages
- 115V
- 120V
- 230V
- 240V
Frequency Options
- 50Hz
- 60Hz
- Excitation Type
- Harmonic wave self-excitation or automatic voltage control
Construction & Insulation
Insulation Standards
| Component | Insulation Class |
|---|---|
| Stator | Class E (or B) |
| Rotor | Class B |
- Enclosure Design
- Drip-proof, salient pole rotating field
Operation
- Operation Mode
- Continuous duty
- Coupling Options
- Direct CouplingV-Belt
Compliance & Standards
Quality Certifications
CEISOGSIEC Standard
