Technical Specifications
Overview
High-Efficiency Portable Power

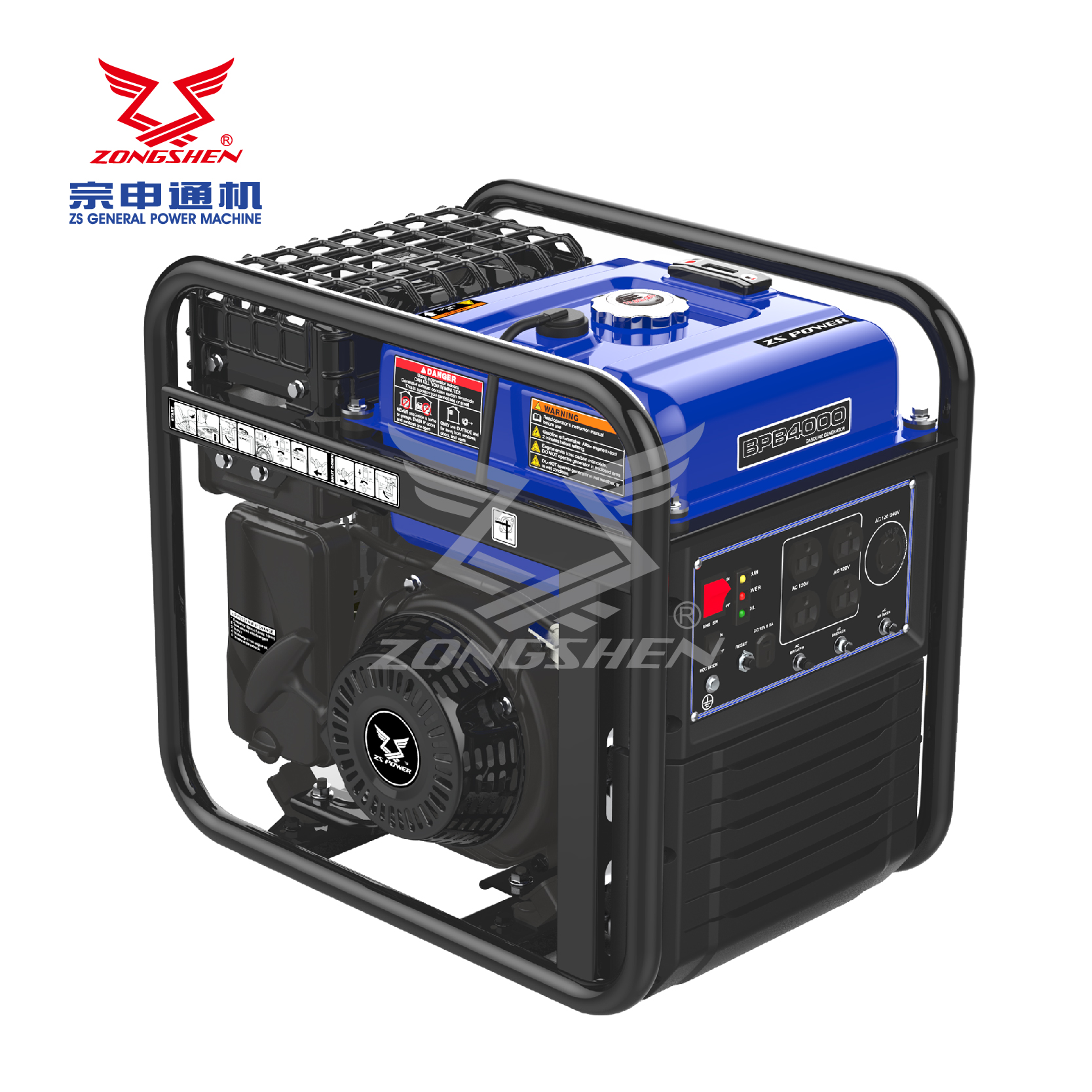

This 3.8kW portable gasoline inverter generator is engineered for stable, clean power delivery with a Total Harmonic Distortion (THD) of less than 3%, making it ideal for sensitive electronics like computers and appliances. Its compact design is 50% smaller than standard generators of similar output, optimizing storage and transportation efficiency. Designed for durability and fuel economy, it features smart circuit protection and a versatile, parallel-capable architecture for scalable power needs.
Performance Metrics
Power Output
3.8 kW
Max Output
3.5 kW
Rated Output
Operational Specifications
| Feature | Value |
|---|---|
| THD | ≤3% |
| Running Time (50% load) | 8 hours |
| Noise Level (7m) | 68-75 dB(A) |
| Fuel Tank Capacity | 11 L |
Engine & Technical
Engine Specifications
- Model: GB225-2
- Type: OHV, Air-cooled, 4-stroke
- Displacement: 224cc
- Insulation Grade: F
- Starting System: Recoil & Electrical
- Electrical Compatibility
- 50Hz / 230V60Hz / 120V / 240V
Logistics & Compliance
Physical Dimensions
34 kg
Net Weight
Certifications
Euro VEPACARB
- Container Load Capacity
- 248 (20'GP) / 512 (40'GP) / 640 (40'HQ)
