36mm Planetary Gearbox Stepper Motor
This 36mm planetary gearbox stepper motor provides precise motion control for various applications. Its compact design balances torque and size, making it suitable for robotics and automation.
Technical Specifications
Overview
High-Precision 36mm Planetary Gear Motor
This 36mm planetary gearbox motor is designed for high-performance industrial applications requiring a balance of compact size and significant torque. It features a permissible load range of 0.3N.m to 3.0N.m, making it ideal for robotics, automation, and precision positioning systems. With multiple reduction ratios and durable construction, it ensures reliable operation in demanding professional environments.
Key Metrics
Performance Highlights
36 mm
Frame Size
24 VDC
Rated Voltage
3 N.m
Max Rated Torque

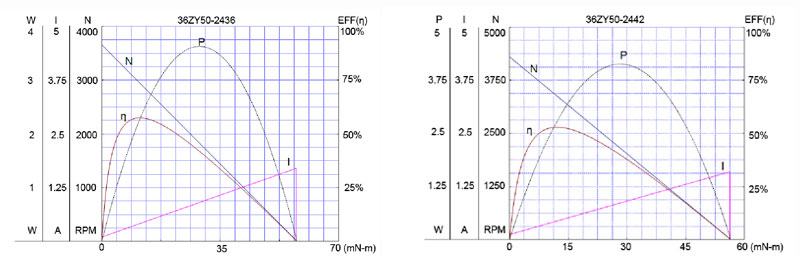

Motor Base Specifications
DC Motor Performance Options
| Model Type | No-load Speed (r/min) | Rated Torque (mN.m) | Output Power (W) | Rated Current (A) |
|---|---|---|---|---|
| 36ZY50-2436 | 3,600 | 11 | 3.4 | 0.4 |
| 36ZY50-2442 | 4,200 | 12 | 4.2 | 0.43 |
Gearbox Configuration
Available Reduction Ratios
- 3.7
- 5.2
- 14
- 19
- 27
- 51
- 71
- 100
- 139
- 189
- 264
- 369
- 516
- Gear Train Stages
- 1-Stage2-Stage3-Stage4-Stage

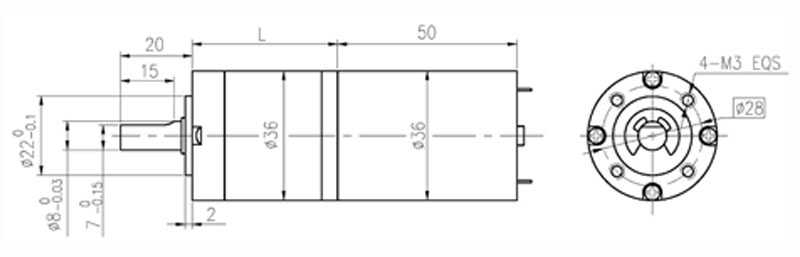

Mechanical Dimensions
Shaft Characteristics
- D-cut output shaft
- High-precision tolerances
- Durable construction materials
- Body Diameter
- 36 mm
- Mounting Holes
- 4-M3 EQS on Φ28mm circle
Operational Limits
- Permissible Load Range
- 0.3N.m ~ 3.0N.m
- Max Short-time Load
- 9 N.m
