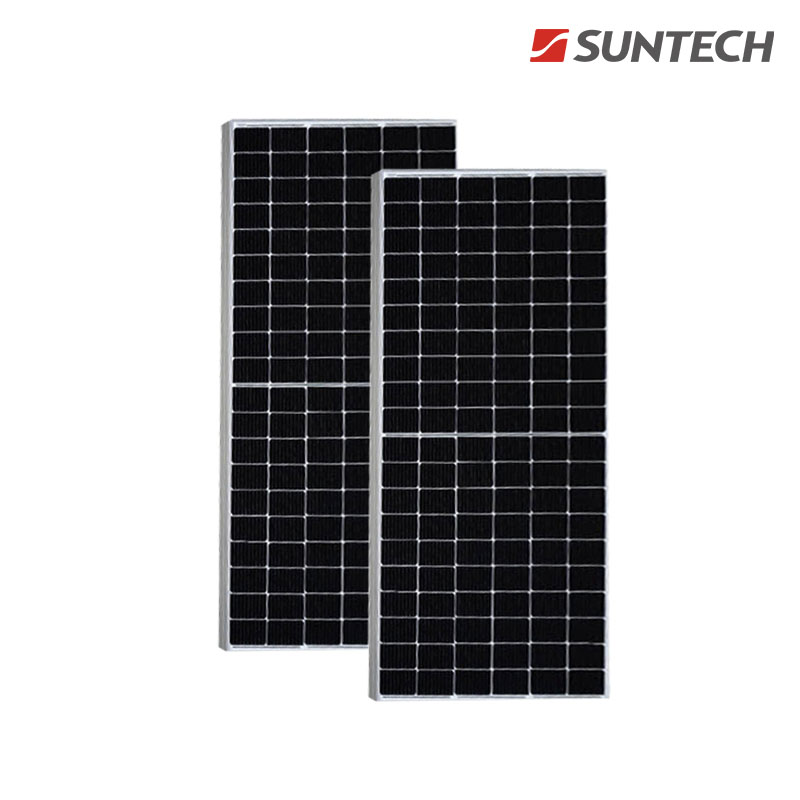

365W Monocrystalline Solar Panel for Power Systems
This 365W monocrystalline solar panel is designed for solar power systems. The solar module is engineered for optimal energy conversion and long-term reliability.
Technical Specifications
Overview

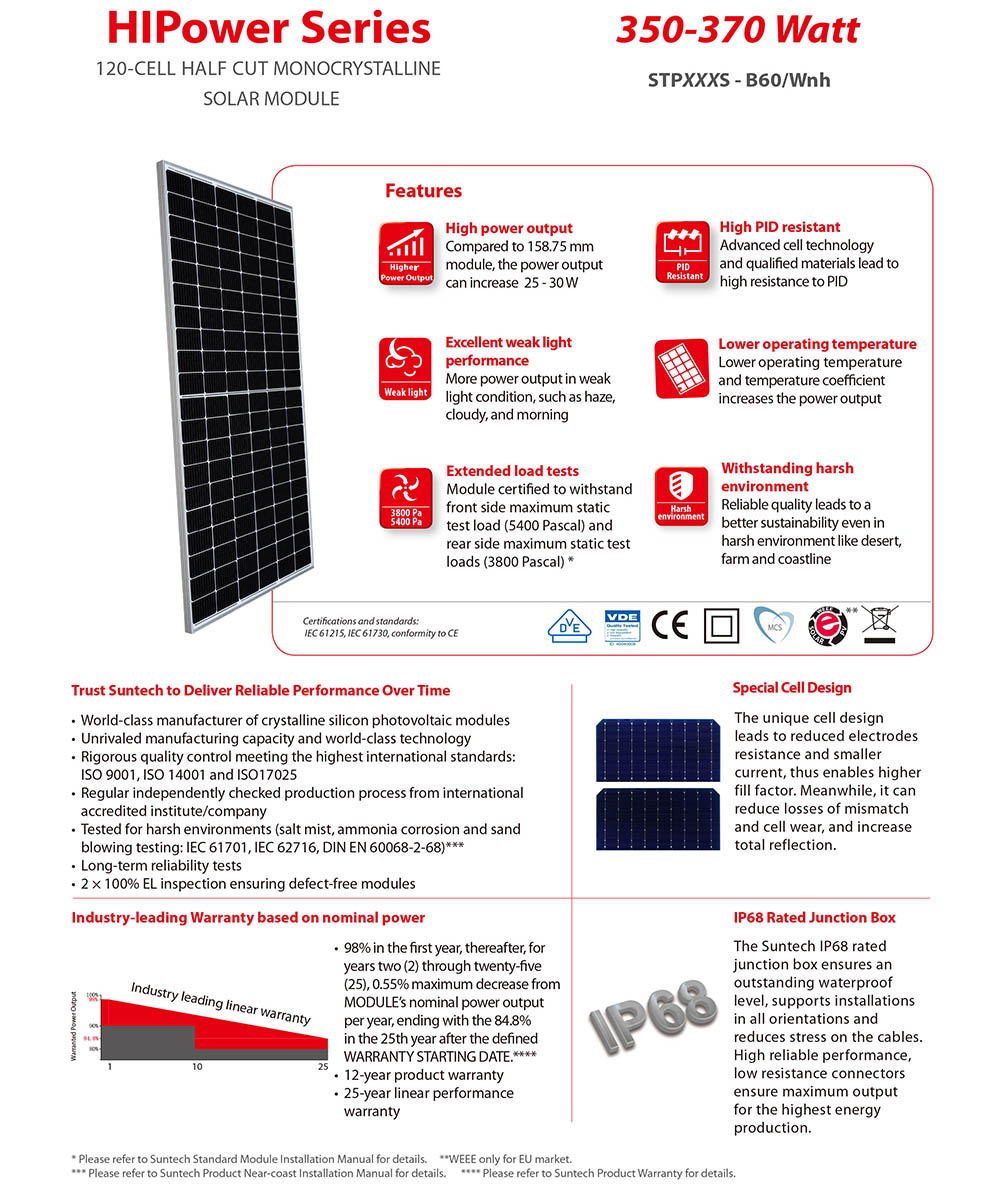

High-Efficiency Monocrystalline Module
This 365W monocrystalline solar module features 120 half-cut cells designed for superior power output and reliability in diverse environments. It excels in low-light conditions such as haze or cloudy weather while providing exceptional durability against harsh elements. With advanced cell technology and high-quality materials, this module is an ideal solution for both grid-tied and off-grid solar power systems.

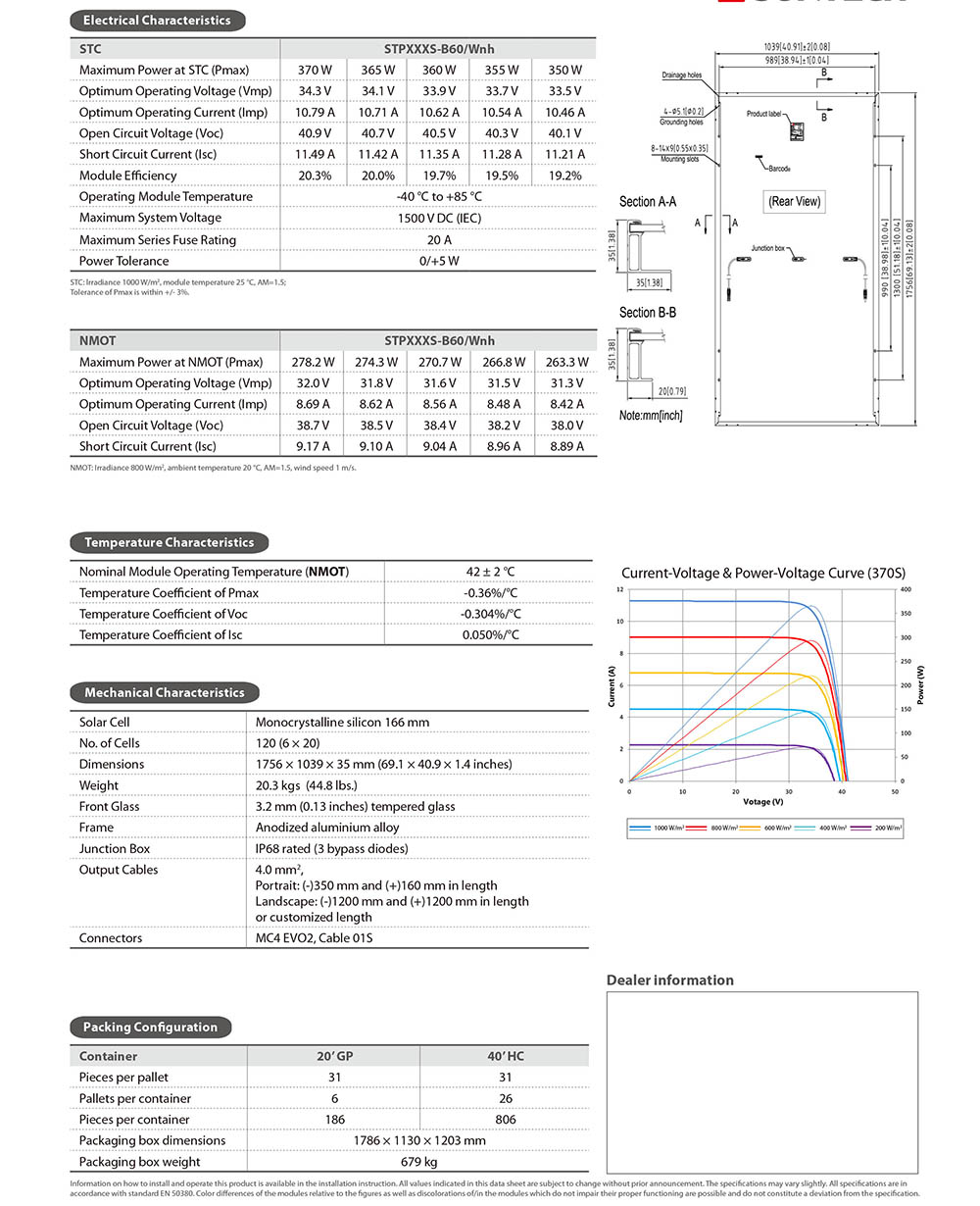

Electrical Characteristics
Electrical Performance (STC)
| Metric | Value |
|---|---|
| Maximum Power (Pmax) | 365W |
| Open Circuit Voltage (Voc) | 40.7V |
| Short Circuit Current (Isc) | 11.42A |
| Optimum Operating Voltage (Vmp) | 34.1V |
| Optimum Operating Current (Imp) | 10.71A |
| Module Efficiency | 20.0% |
Temperature Coefficients
-0.36 %/°C
Pmax
-0.304 %/°C
Voc
0.05 %/°C
Isc
Mechanical Data
Dimensions & Weight
- Dimensions: 1756 x 1039 x 35 mm
- Weight: 20.3 kg (44.8 lbs)
- Front Glass: 3.2 mm tempered glass
- Cell configuration: 120 (6 x 20) monocrystalline silicon
- Durability and Safety
- IP68 Rated Junction BoxPID Resistant5400 Pa Front Static Load3800 Pa Rear Static Load1500V DC Max System Voltage
Certifications
International Standards
IEC 61215IEC 61730CE CertifiedISO 9001ISO 14001
