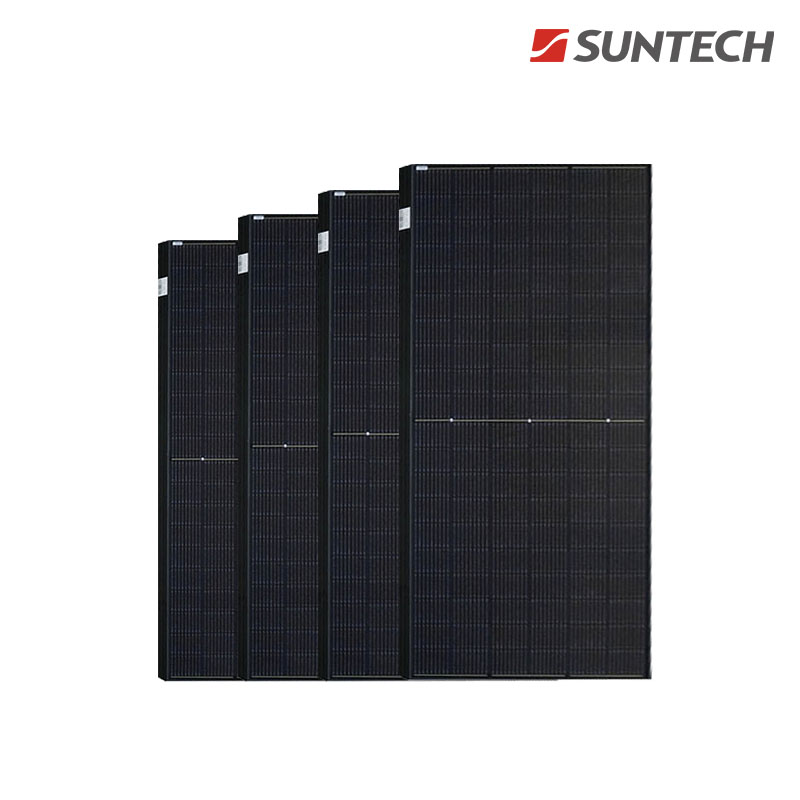

350W Full Black Monocrystalline Solar Panel
This 350W full black monocrystalline solar panel is designed for solar power systems. The PV module offers excellent performance and reliability, with a sleek, all-black aesthetic ideal for residential and commercial installations.
Technical Specifications
Overview
High-Efficiency Full Black Solar Solution

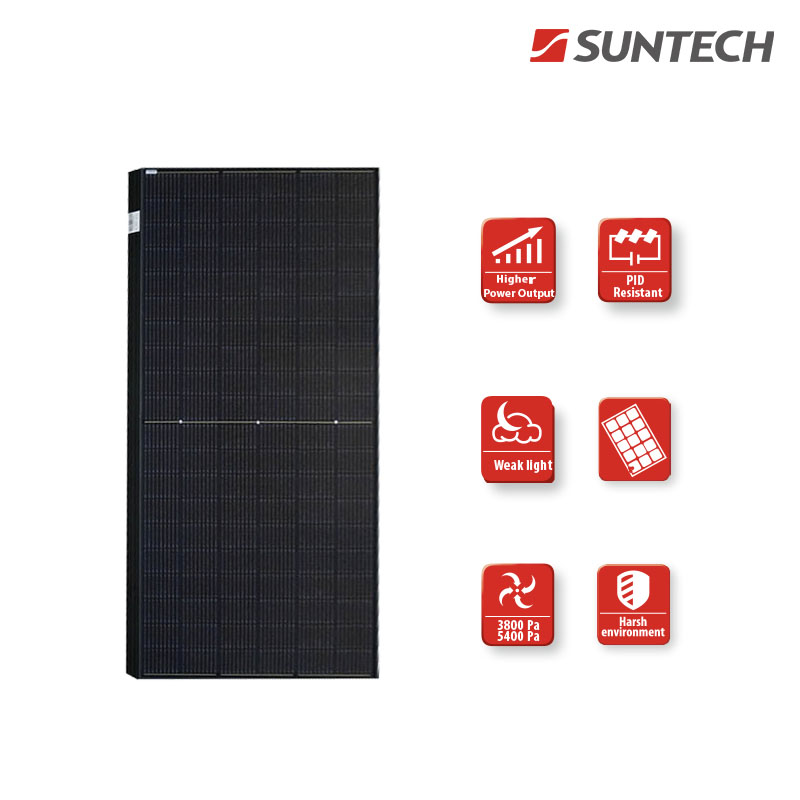

This 350W monocrystalline solar panel features a sleek all-black design, making it an ideal choice for residential and commercial installations where aesthetics are a priority. Engineered with 120 half-cut cells, it delivers superior power output and maintains high performance even in weak light conditions such as haze or early morning. Built for durability, the module is certified to withstand extreme wind and snow loads while offering long-term reliability in harsh environments.
Key Performance Metrics
Performance Highlights
350 W
Max Power (Pmax)
19.2 %
Module Efficiency
1,000 V
Max System Voltage
25 Years
Performance Warranty
Electrical Characteristics
Electrical Data (STC)
| Parameter | Value |
|---|---|
| Optimum Operating Voltage (Vmp) | 33.5 V |
| Optimum Operating Current (Imp) | 10.46 A |
| Open Circuit Voltage (Voc) | 40.1 V |
| Short Circuit Current (Isc) | 11.21 A |
| Power Tolerance | 0/+5 W |
| Operating Temperature | -40 °C to +85 °C |
Mechanical Design
Mechanical Specifications
| Component | Specification |
|---|---|
| Solar Cell | Monocrystalline silicon 166 mm |
| Cell Arrangement | 120 (6 x 20) |
| Dimensions | 1756 x 1039 x 35 mm |
| Weight | 20.3 kg |
| Front Glass | 3.2 mm tempered glass |
| Frame | Anodized aluminium alloy |
| Junction Box | IP68 rated (3 bypass diodes) |
| Connectors | MC4 compatible |
Reliability & Durability
Reliability Features
- High PID resistance through advanced cell technology
- Certified wind load resistance up to 3800 Pascal
- Certified snow load resistance up to 5400 Pascal
- Salt mist and ammonia corrosion resistant
- Sand blowing test certified (IEC 60068-2-68)
- 2 x 100% EL inspection for defect-free modules

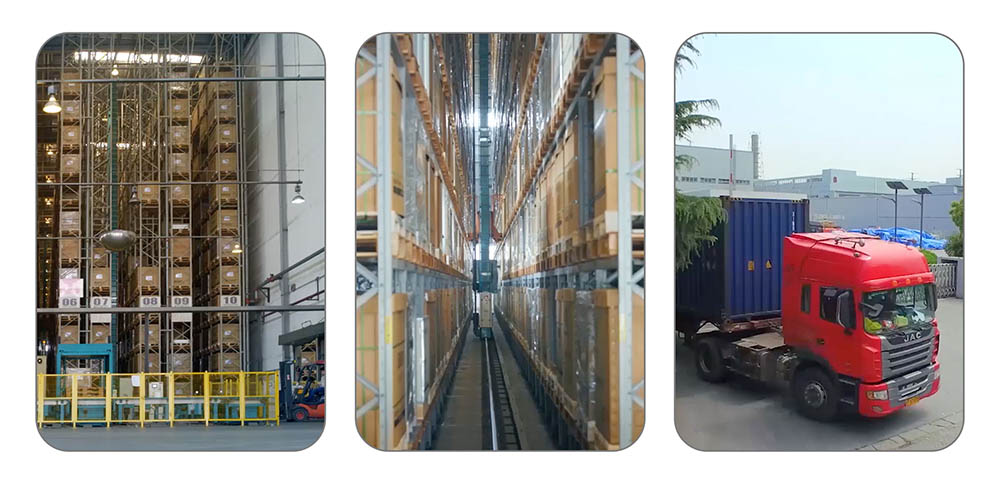

Logistics & Packaging
Shipping Configuration
| Container Type | Quantity |
|---|---|
| Pieces per Pallet | 31 pcs |
| 20'GP Container Capacity | 186 pcs |
| 40'HC Container Capacity | 806 pcs |
| Pallets per 40'HC | 26 |
| Packaging Box Weight | 679 kg |
Certifications
Standards & Compliance
IEC 61215IEC 61730CEISO 9001ISO 14001ISO 45001SA 8000TUV NORDVDE
