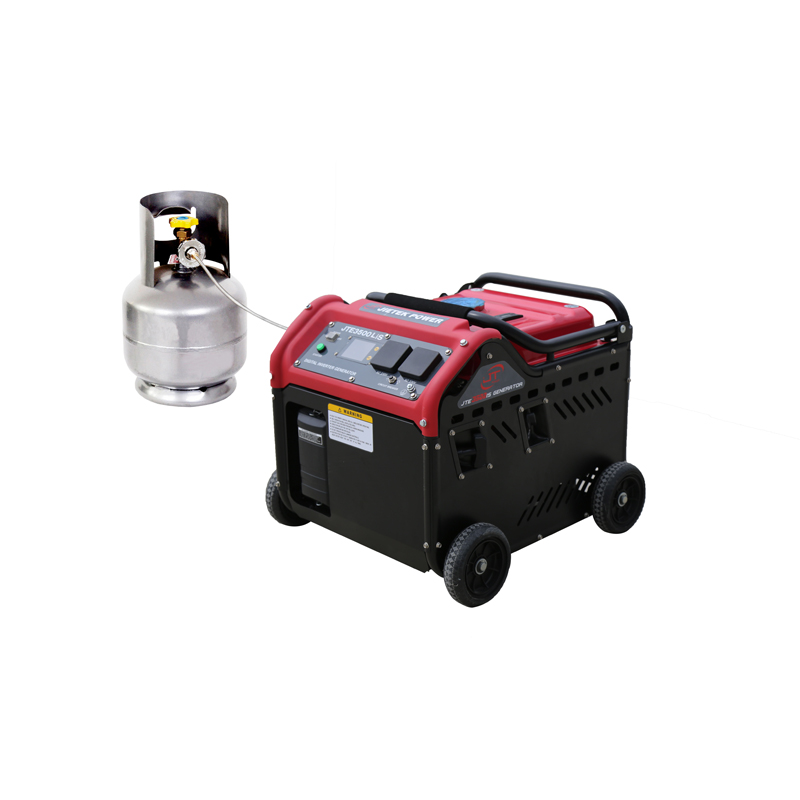

3.5kW Digital Inverter Gas Generator
This 3.5kW digital inverter gas generator provides a stable power supply with a commercial design that allows for continuous operation. It features a smart LCM screen and offers fuel savings when not fully loaded.

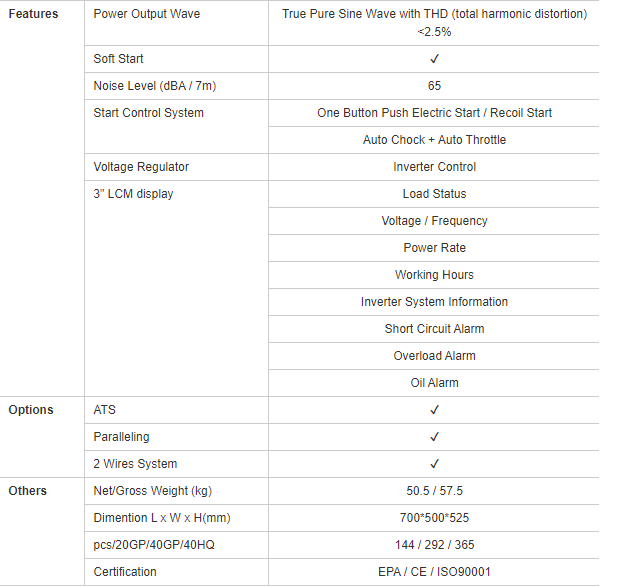

Technical Specifications
Overview
High-Performance 3.5kW Digital Inverter Generator
This commercial-grade gas inverter generator provides a maximum output of 3.5kW with true pure sine wave technology, ensuring safe power for sensitive electronics. Designed for 24-hour continuous operation without power reduction, it features a smart LCM display and a one-button push start for effortless use. Its fuel-efficient design saves between 20% and 40% on fuel during partial load conditions, making it an ideal choice for professional and emergency power needs.
Performance Metrics
Rated Power
3 kW
Rated Output
3.5 kW
Maximum Output
4.7 kW
Surge Power
Electrical Specifications
Output Configuration
| Parameter | Value |
|---|---|
| Voltage | 110V / 220V / 240V |
| Frequency | 50Hz / 60Hz |
| Phase | Single Phase |
| Power Factor | 0.93 |
| THD | < 2.5% (Pure Sine Wave) |
Engine & Fuel
Engine Specifications
- Model: JD168F (Forced Air Cooled, 4-Stroke OHV)
- Displacement: 208cc
- Fuel Type: LPG / Gas
- LPG Consumption: 0.45kg/kw.h
- Oil Capacity: 600ml (SAE15W-40 or SAE5W-30)
- Engine Speed: 2800-3600 rpm (Load-based)
Operation & Interface
LCM Display Data
- Load Status
- Voltage & Frequency
- Power Rate
- Working Hours
- Inverter System Info
- Smart Features
- One-Button StartRecoil StartAuto ChokeAuto ThrottleSoft Start3" LCM Display
Safety & Protection
Integrated Alarms
Short Circuit AlarmOverload AlarmLow Oil AlarmOverload ProtectionLow Oil Shutdown
Physical Attributes
- Noise Level
- 65 dBA/7m
- Fuel Tank Capacity
- 12.5 L
- Continuous Runtime
- 7.5 hours
- Dimensions (LxWxH)
- 700 x 500 x 525 mm
Compliance
- Product Certifications
- CEISO 9001EPA
