Technical Specifications
Product Overview
Reliable Portable Power Solution

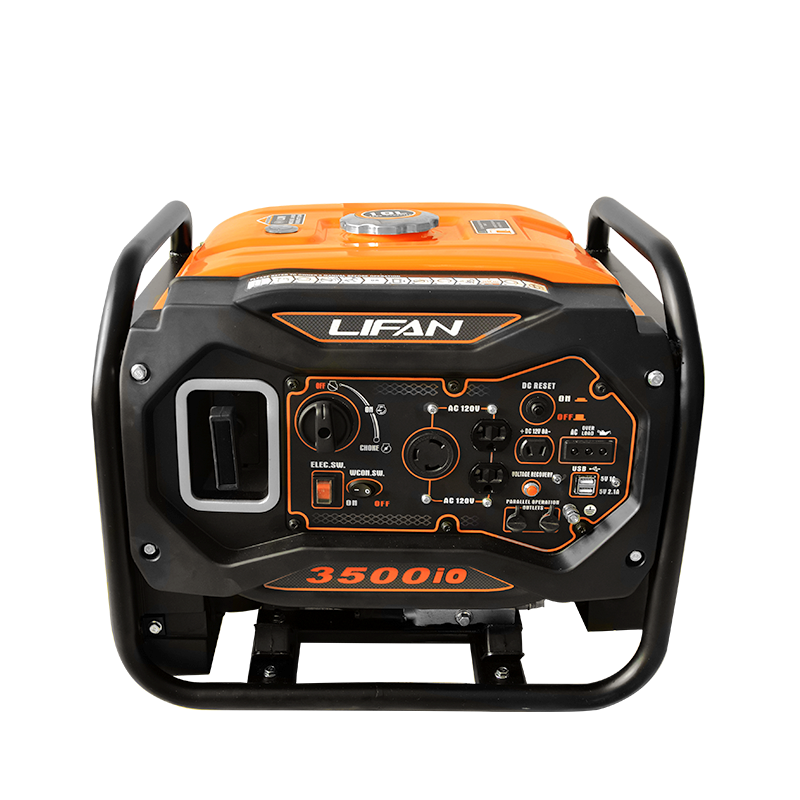

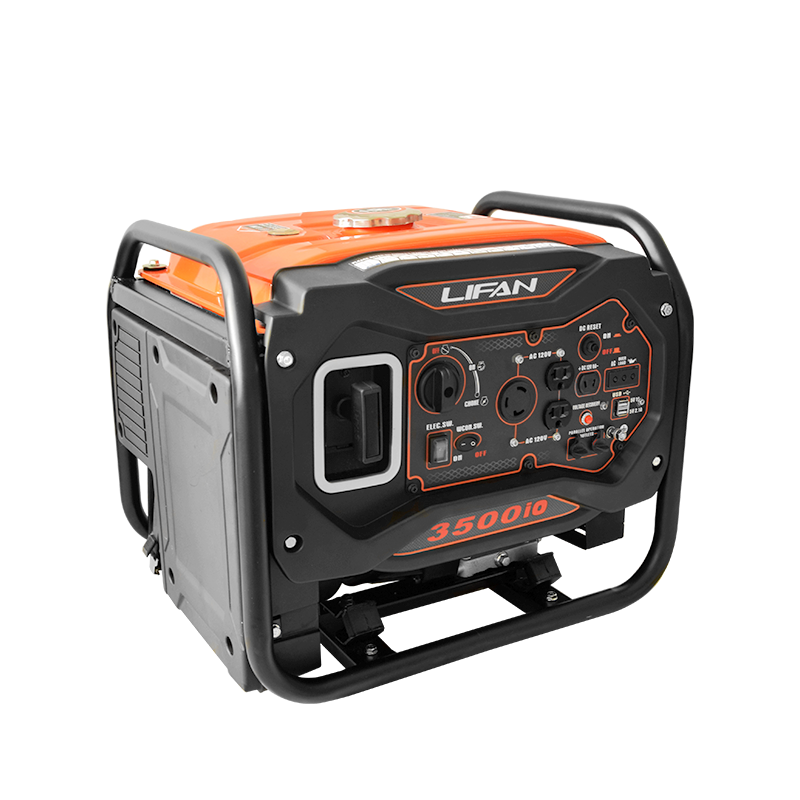

This 3500W portable inverter generator is engineered to provide stable, clean power suitable for sensitive electronics and professional applications. Featuring a 4-stroke forced-cooled engine and dual starting systems, it offers a balance of performance and convenience. With a compact design and efficient fuel consumption, it is an ideal choice for mobile power needs, emergency backup, or remote work sites.
Performance & Power
Power Output
3.5 KVA
Max Power
3 KVA
Rated Power
50 Hz
Frequency
- Supported Voltages
- 120V220V240V
Engine & Technical
Engine Specifications
| Parameter | Value |
|---|---|
| Engine Type | 4-stroke, forced-cooled |
| Engine Model | 170F |
| Displacement | 212 ml |
| Ignition System | Non-contact TCI |
Starting Methods
ManualElectric
Operation & Efficiency
Fuel & Runtime
- Fuel Tank Capacity: 10 L
- Fuel Consumption: 1.2 L/hr
- Continuous Operating Time: 14 hr
- Noise Level
- 60 dB
Physical & Logistics
Physical Dimensions
- Net Weight: 45 kg
- Dimensions: 520 x 440 x 455 mm
Container Load Capacity
| Container Type | Quantity |
|---|---|
| 20GP | 192 |
| 40GP | 416 |
| 40HQ | 624 |
