Technical Specifications
Product Overview
Professional Mobile Power Solution

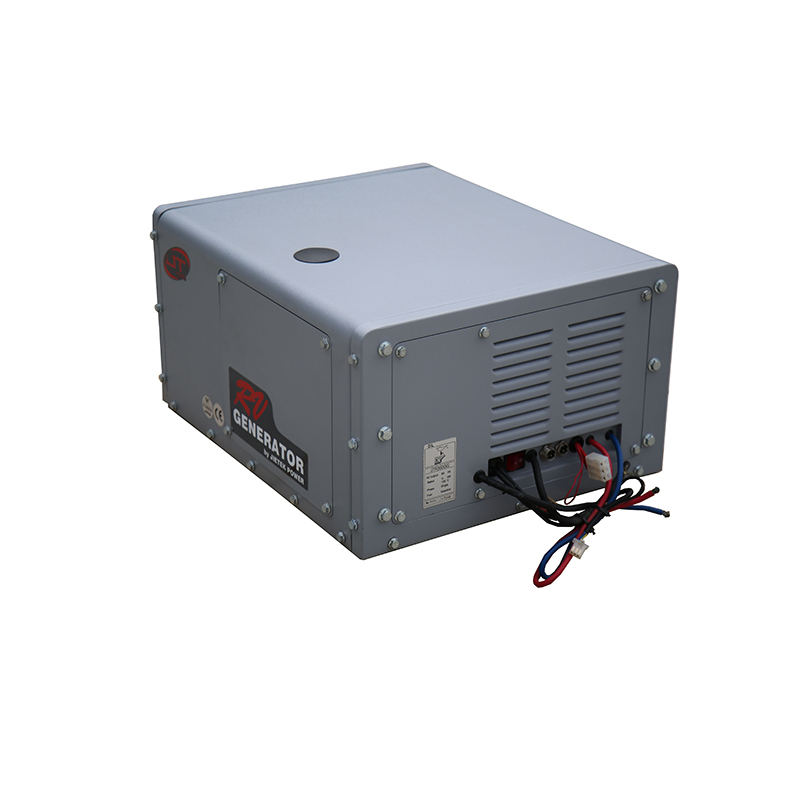

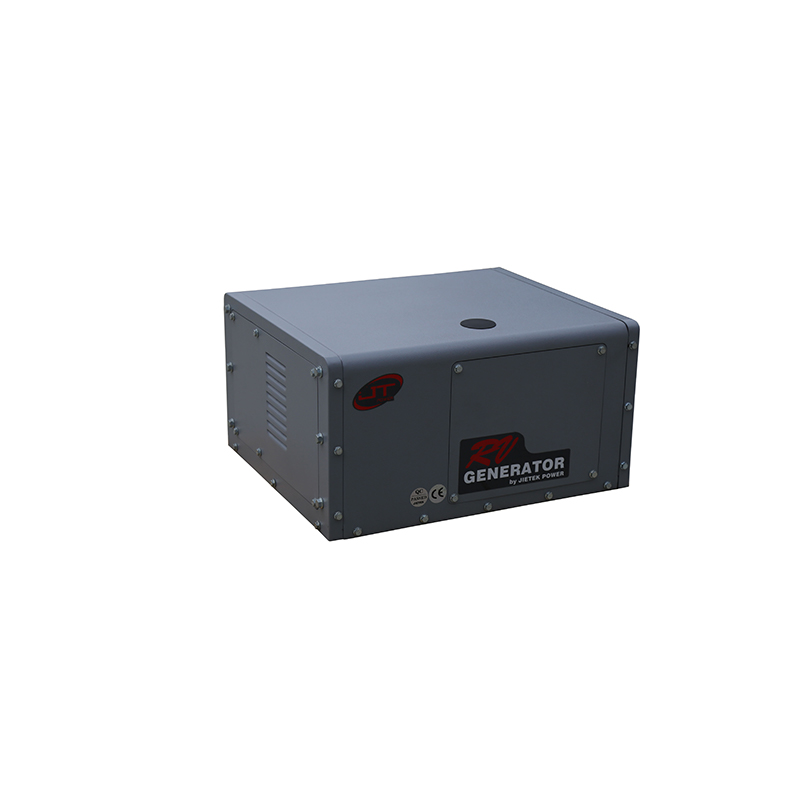

This 3500W mobile gasoline generator is specifically engineered for RVs and vehicle-integrated applications, offering a super-silent 54dBA operation. It features a true pure sine wave output with less than 2.5% THD, making it safe for sensitive electronics while providing reliable power even while the vehicle is in motion. Designed for heavy-duty use, it can maintain 24-hour continuous operation at full load without power reduction, all while saving up to 40% on fuel compared to standard units.
Performance Metrics
Key Performance Metrics
3.5 kW
Max Power
3 kW
Rated Power
54 dBA
Noise Level
24 L
Fuel Tank
Engine & Alternator
Engine Specifications
| Feature | Details |
|---|---|
| Engine Type | Forced Air Cooled, Single Cylinder, 4-Stroke OHV |
| Displacement | 208cc |
| Engine Speed | 2800 - 3600 rpm (load-based) |
| Fuel Type | Unleaded Gasoline / LPG |
| Oil Capacity | 600ml (SAE15W-40 or SAE5W-30) |
| Alternator Type | Rare Earth, PMG Alternator |
Control & Interface
Control System
- 5-inch LCM Remote Display
- One-Button Push Electric Start
- Recoil Start Backup
- Auto Choke & Auto Throttle
- Inverter Voltage Regulation
- Remote Start/Stop Control
Safety & Monitoring
- Safety Features
- Short Circuit AlarmOverload ProtectionLow Oil ShutdownBattery Status MonitorSoft Start Function
Physical Dimensions
Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L x W x H) | 545 x 455 x 270 mm |
| Net Weight | 44 kg |
| Gross Weight | 46 kg |
Compliance
Certifications
CEISO 9001EPA
Operational Efficiency
Efficiency & Runtime
| Metric | Consumption Rate |
|---|---|
| Continuous Running | 16 Hours |
| Gasoline Consumption | 382g/kw.h |
| LPG Consumption | 0.45kg/kw.h |
| Fuel Saving | 20% - 40% |
