Technical Specifications
Overview

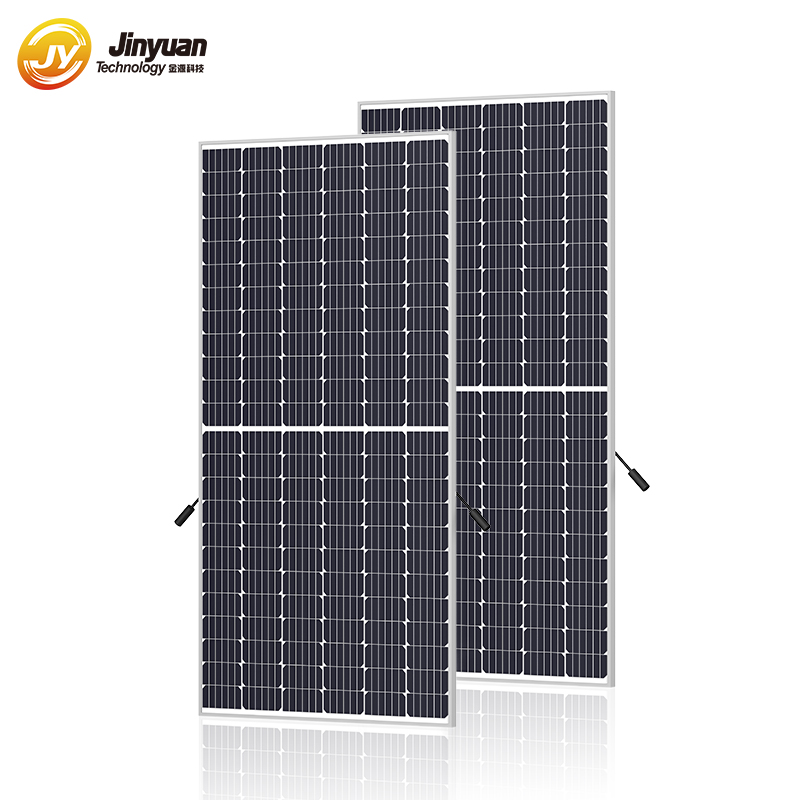

High-Efficiency Monocrystalline Module
This 72-cell monocrystalline solar module is engineered for superior energy conversion and long-term reliability in residential, commercial, and utility-scale projects. Featuring advanced half-cut technology and anti-reflective glass, it maintains high performance even in weak light conditions such as dawn, nightfall, or cloudy days. The reinforced frame and IP68-rated junction box ensure exceptional durability against environmental impacts and moisture.
Electrical Specifications
Performance Parameters (STC)
| Metric | 350W | 355W |
|---|---|---|
| Vmp (V) | 38.7 | 38.9 |
| Imp (A) | 9.11 | 9.13 |
| Voc (V) | 47.0 | 47.3 |
| Isc (A) | 9.68 | 9.70 |
| Efficiency (%) | 17.8 | 18.0 |
- Power Output Range
- 335W340W345W350W355W
Quality and Standards
Certifications
TUVCEIEC61215IEC61730

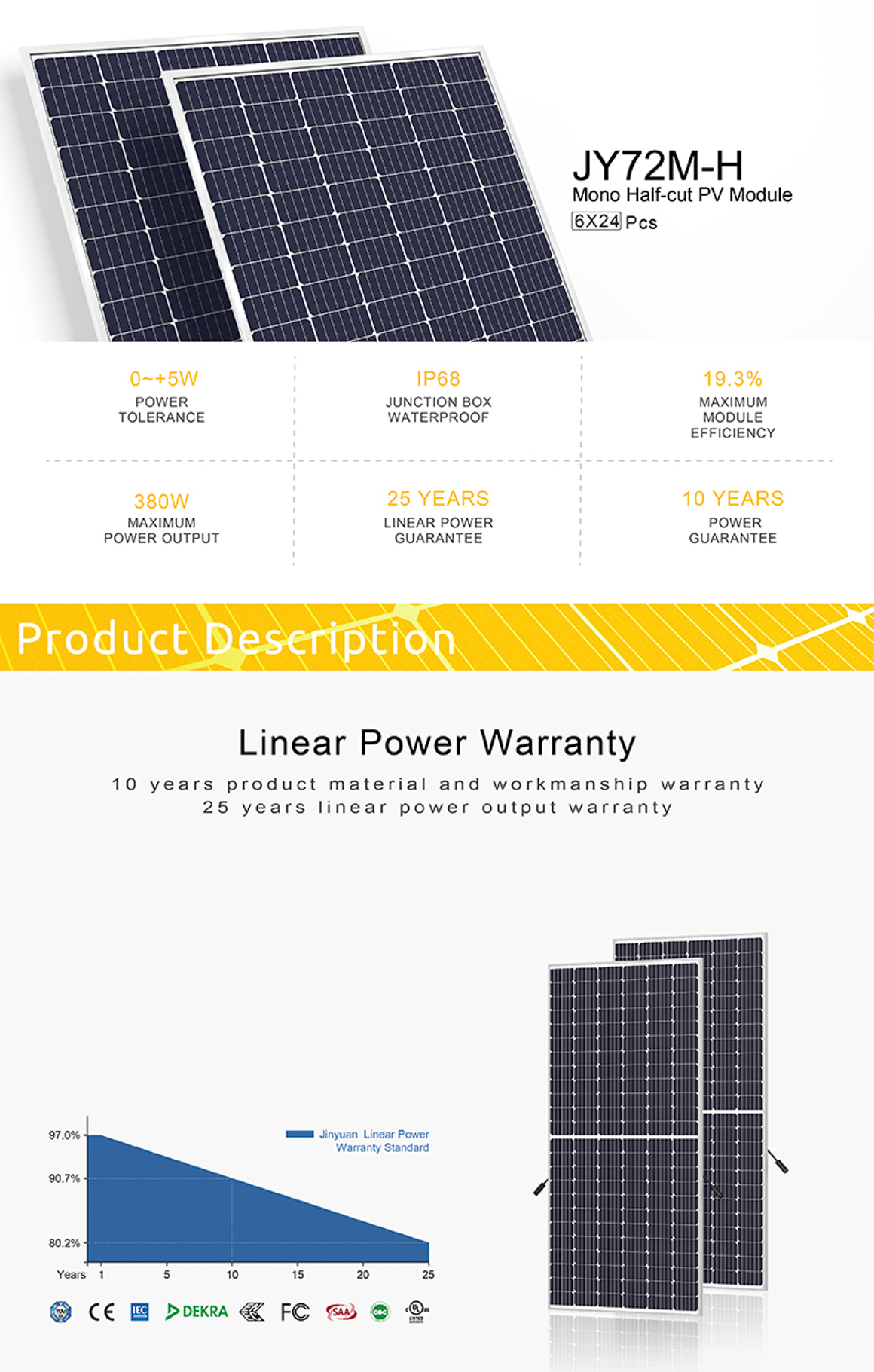

Warranty Coverage
- 10-year product material and workmanship warranty
- 25-year linear power output warranty

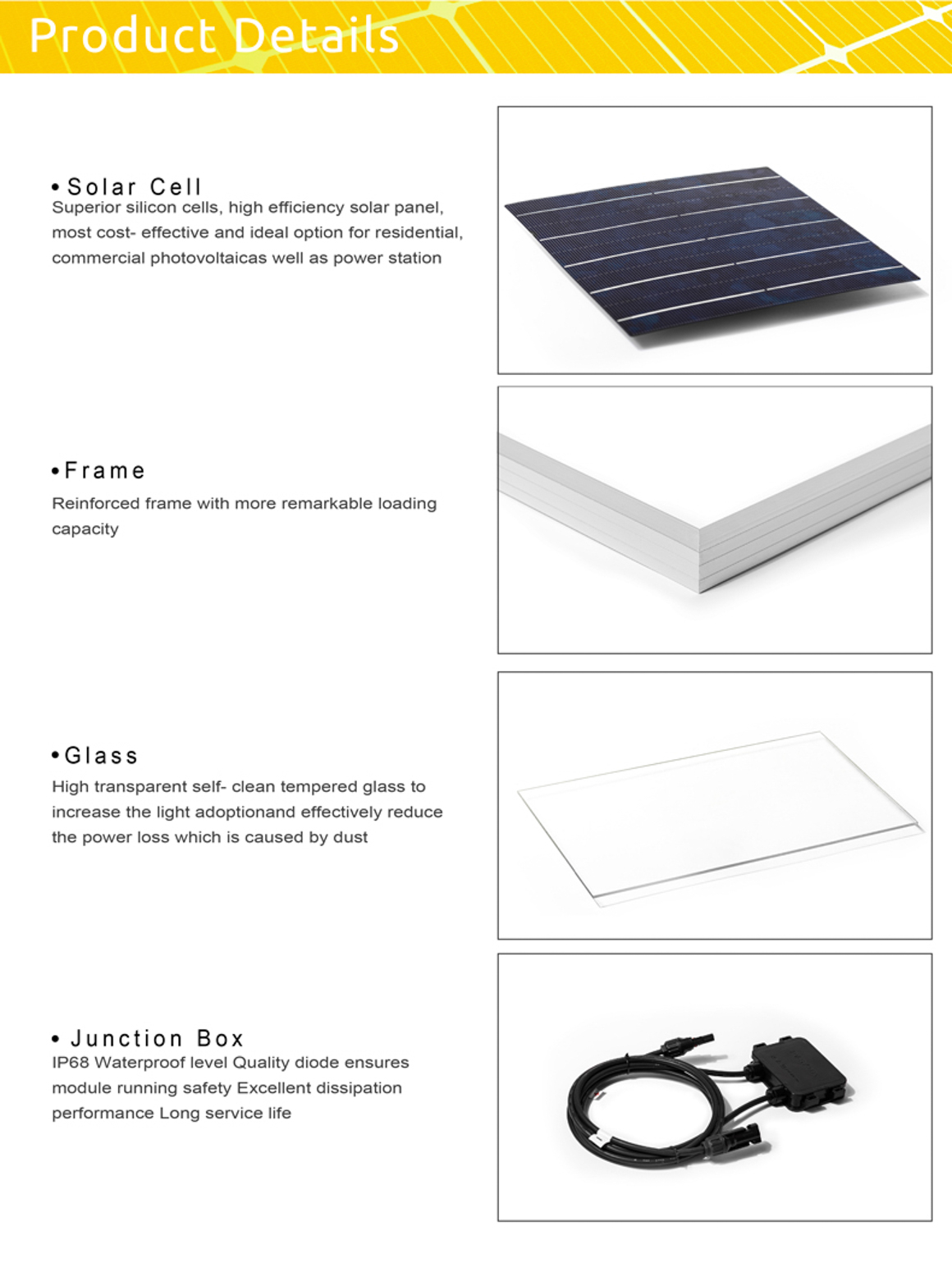

Mechanical Characteristics
Physical Dimensions
1,993 mm
Length
992 mm
Width
45 mm
Max Thickness
