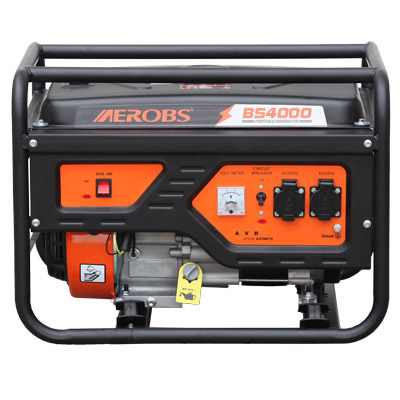

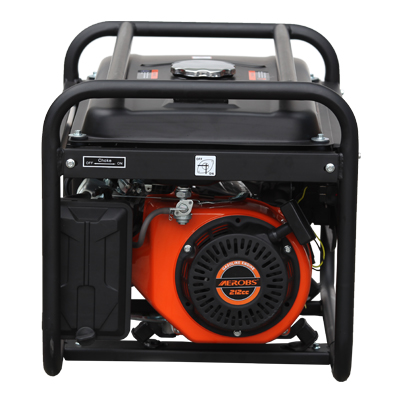

3.3kW Portable Gasoline Generator
This 3.3kW gasoline generator provides a reliable and portable power source. It features a durable frame, 212cc engine, and an automatic voltage regulator for stable output.
Technical Specifications
Overview
Reliable Portable Power Solution
The BS4000 is a versatile 3.3kW portable gasoline generator designed for dependable performance in construction, outdoor events, and emergency backup scenarios. Built with a robust open-frame design, it features a high-efficiency OHV engine and an Automatic Voltage Regulator (AVR) to ensure stable power delivery. With a 15-liter fuel tank providing up to 9 hours of continuous operation, this generator is engineered for both durability and ease of use.
Performance Metrics
Power Output
3.3 kW
Maximum Power
14 A
Rated Current
9 h
Run Time
Engine Details
Engine Specifications
- Type: Single cylinder, four-stroke
- Cooling: Forced air cooling
- Valve Train: OHV
- Displacement: 223cc
- Speed: 3000-3600 rpm
Electrical & Safety
Electrical Interface
| Feature | Specification |
|---|---|
| Rated Voltage | 110/220V |
| Frequency | 50/60Hz |
| Voltage Regulation | AVR (Automatic Voltage Regulator) |
| Safety Components | Circuit Breaker & Grounding Terminal |
| Monitoring | Integrated Voltmeter |
Physical Construction
Frame Style
Open FramePortable
- Dimensions
- 605 x 450 x 470 mm
- Net Weight
- 46 kg
Operation
- Fuel Tank Capacity
- 15 L
- Oil Capacity
- 0.6 L
- Starting Method
- RecoilE-start
Compliance & Warranty
Certification
Euro-V
- Warranty
- 3 months to 1 year
