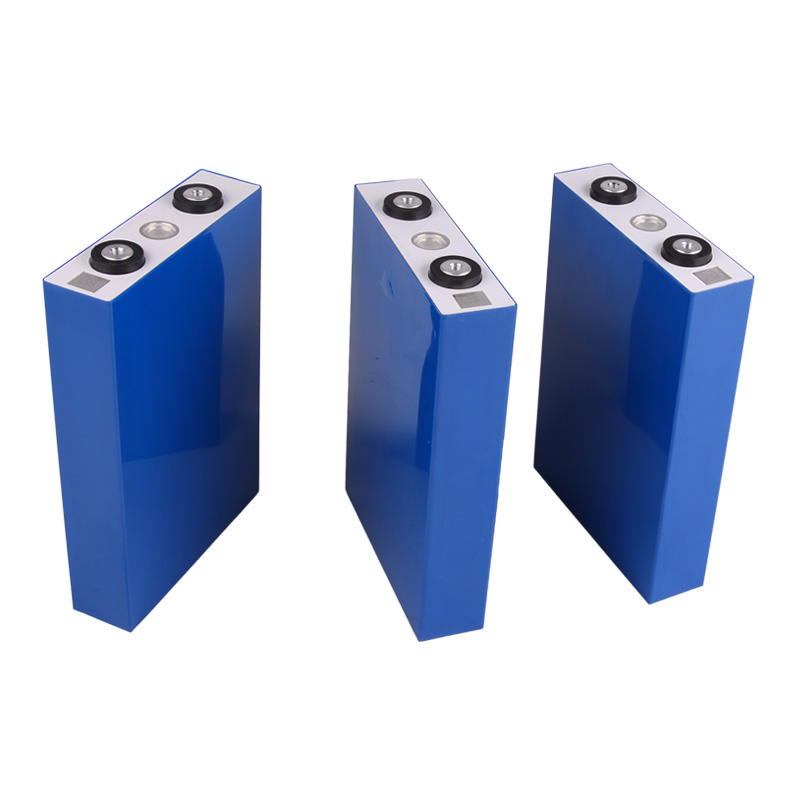

3.2V 100Ah LiFePO4 Prismatic Battery Cell for Solar Street Lights
This 3.2V 100Ah LiFePO4 prismatic battery cell is designed for solar street light applications. It provides excellent thermal stability, a long cycle life, and high energy density.
Technical Specifications
Product Overview
High-Performance LiFePO4 Energy Solution
This 3.2V 100Ah LiFePO4 prismatic battery cell is engineered for reliability in solar street lighting and energy storage systems. It offers a significantly longer cycle life and higher power density compared to traditional lead-acid alternatives, providing an efficient drop-in replacement. With built-in safety chemistry and a wide operating temperature range, this cell is designed for demanding environments requiring consistent power.
Cell Specifications
Performance Metrics
3.2 V
Nominal Voltage
100 Ah
Capacity
3.5 kg
Weight
Voltage Cut-offs
| Metric | Voltage |
|---|---|
| Charge Cut-off | 3.6V |
| Discharge Cut-off | 2.6V |
Battery Pack Configuration
12V Pack Configuration
- Voltage: 12V
- Capacity: 100Ah
- Structure: 4s1p
- Included: BMS, wire, connector, and enclosure
Performance Ratings
20 A
Max Constant Discharge
50 A
Peak Current
50 A
Max Constant Charge
Operational Conditions
- Temperature Range
- -20℃ to 60℃
- Certifications
- CEULRoHS
Application
- Common Applications
- Solar/Wind Energy StorageWheelchairs & ScootersGolf TrolleysUPS Back-upElectric Bikes
Warranty
- Warranty Period
- 3 Years
