Technical Specifications
Overview
Portable Power Solution

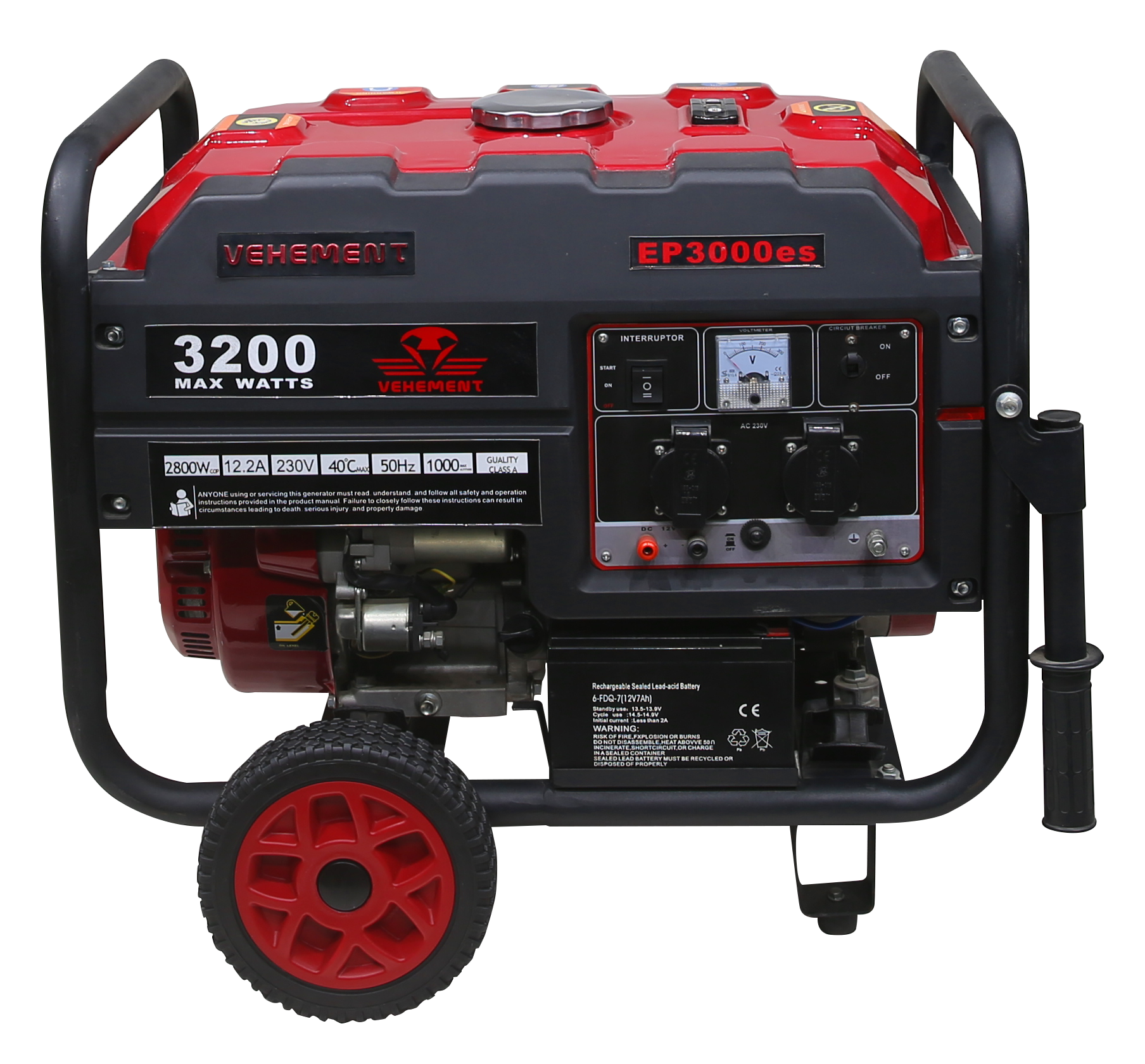

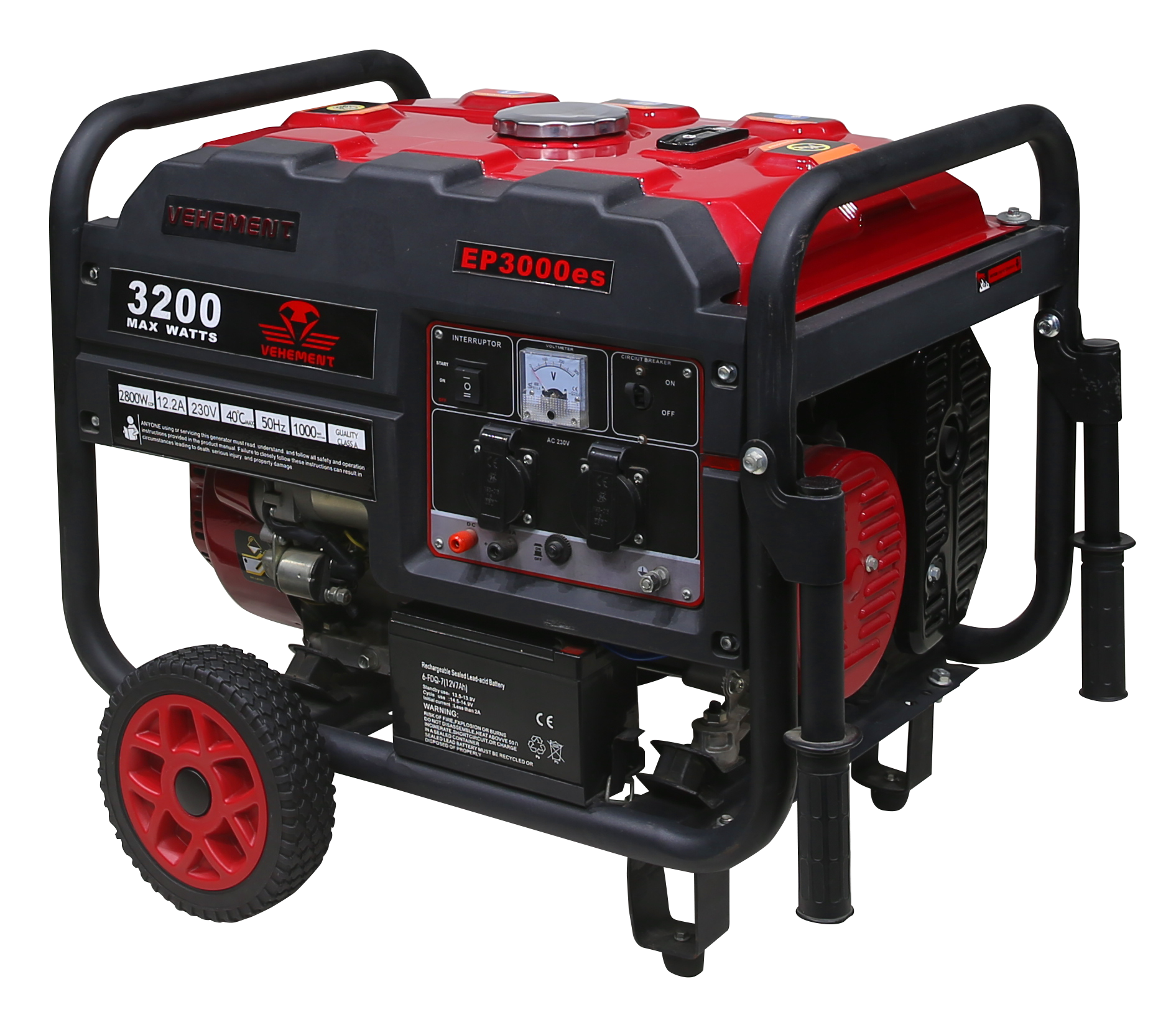

This portable gasoline generator is designed for reliable power delivery in demanding environments. Featuring a robust 4-stroke, air-cooled OHV engine, it offers versatile starting options and is built for safety with integrated AVR and oil alert systems. With a maximum output of 3200W, it serves as an ideal solution for professional, construction, or emergency backup power needs.
Performance Metrics
Key Performance Indicators
3,200 W
Max Output
2,800 W
Rated Output
6.5 HP
Engine Power
Technical Specifications
Electrical Characteristics
| Parameter | Value |
|---|---|
| Voltage | 230V |
| Current | 12.2A |
| Frequency | 50Hz |
| Battery | 12V 7Ah (Sealed Lead-Acid) |
- Engine Configuration
- 4-stroke, OHV (Overhead Valve), Single Cylinder, Air-Cooled
Features & Compliance
Safety Systems
- Automatic Voltage Regulation (AVR)
- Over-voltage protection
- Overload protection
- Overheat protection
- Low oil alert system (automatic shutdown)
- Certifications
- CEEURO VEPAISO 9001:2015
- Warranty Coverage
- 2 years or 600 continuous working hours
Options
Available Configurations
Wheels & HandlesRecoil StartElectric StartSingle PhaseThree PhaseOEM Available
