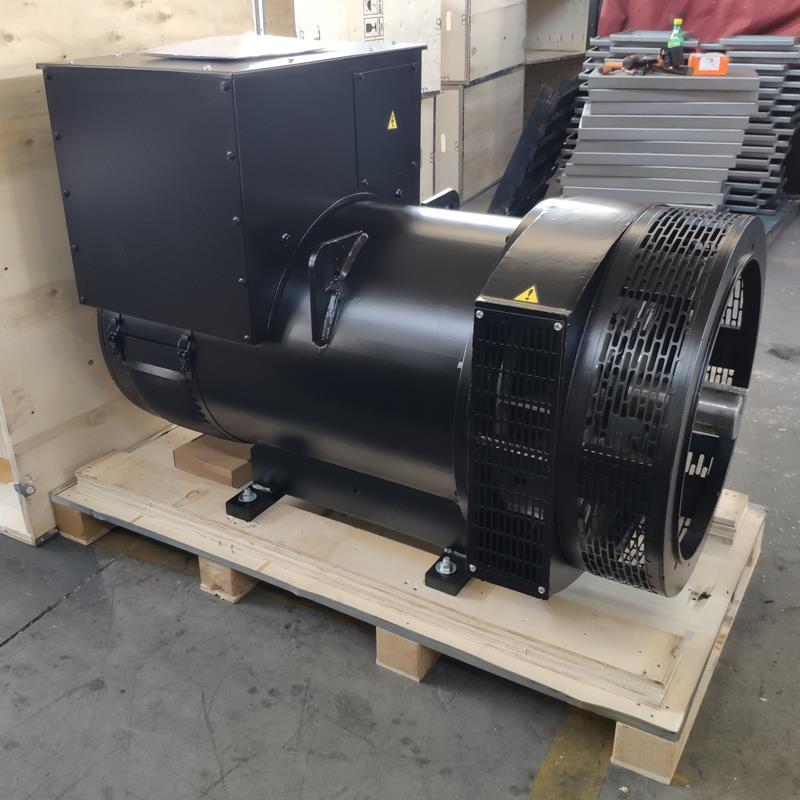

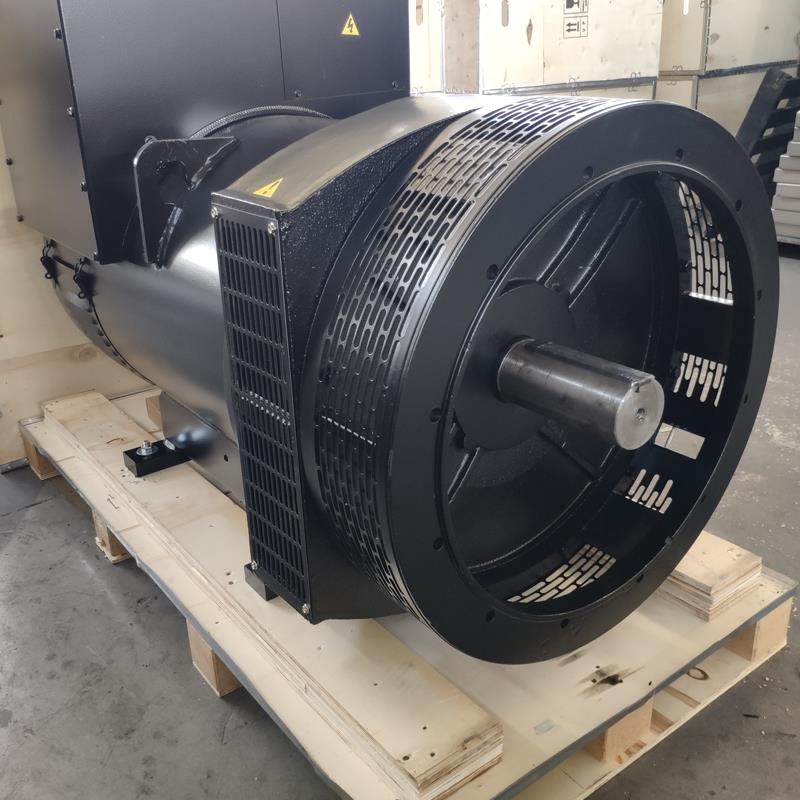

312KVA 250KW Brushless Alternator
This 312KVA 250KW brushless alternator is designed for power generation applications. Its brushless design minimizes maintenance and extends service life while delivering reliable performance.
Technical Specifications
Overview
Professional Power Generation
The 312KVA 250KW Brushless AC Synchronous Alternator is engineered for reliable, high-performance power generation in both industrial and marine environments. Featuring a robust brushless design with dynamic rotor balancing, it ensures minimal vibration and extended service life. The unit is built to international standards, offering flexible installation options and advanced voltage regulation for stable, consistent power output.
Performance Metrics
Rated Power Output
312 kVA
KVA
250 kW
KW
Overload Capacity
- 150% of rated current for 2 minutes
- 110% of rated current for 1 hour in six
Electrical Specifications
Insulation Class
Class H
Waveform Distortion
- THF (BS4999 Part 40) < 2%
- TIF (ASA C50.12) < 50
Construction & Design
- Enclosure Rating
- IP22IP23
- Bearing Configuration
- Available in single or double bearing construction
- Winding Pitch
- 2/3 Pitch
- Compliance Standards
- Industrial StandardsMarine StandardsSAE StandardBS6861: Part 1 Grade 2.5
