300W Polycrystalline Solar Panels for Home Use
These polycrystalline solar panels are designed for home solar systems. The 300W panels provide a reliable renewable energy solution for residential use.
Technical Specifications
Product Overview
High-Efficiency Solar Power Solution
These 300W polycrystalline solar panels are engineered for optimal energy conversion and reliability in residential solar systems. With advanced half-cell technology and excellent weak-light performance, these modules deliver consistent power even in cloudy or hazy conditions. Built to withstand harsh environmental stressors, they offer a durable and long-term renewable energy solution for your home or project.

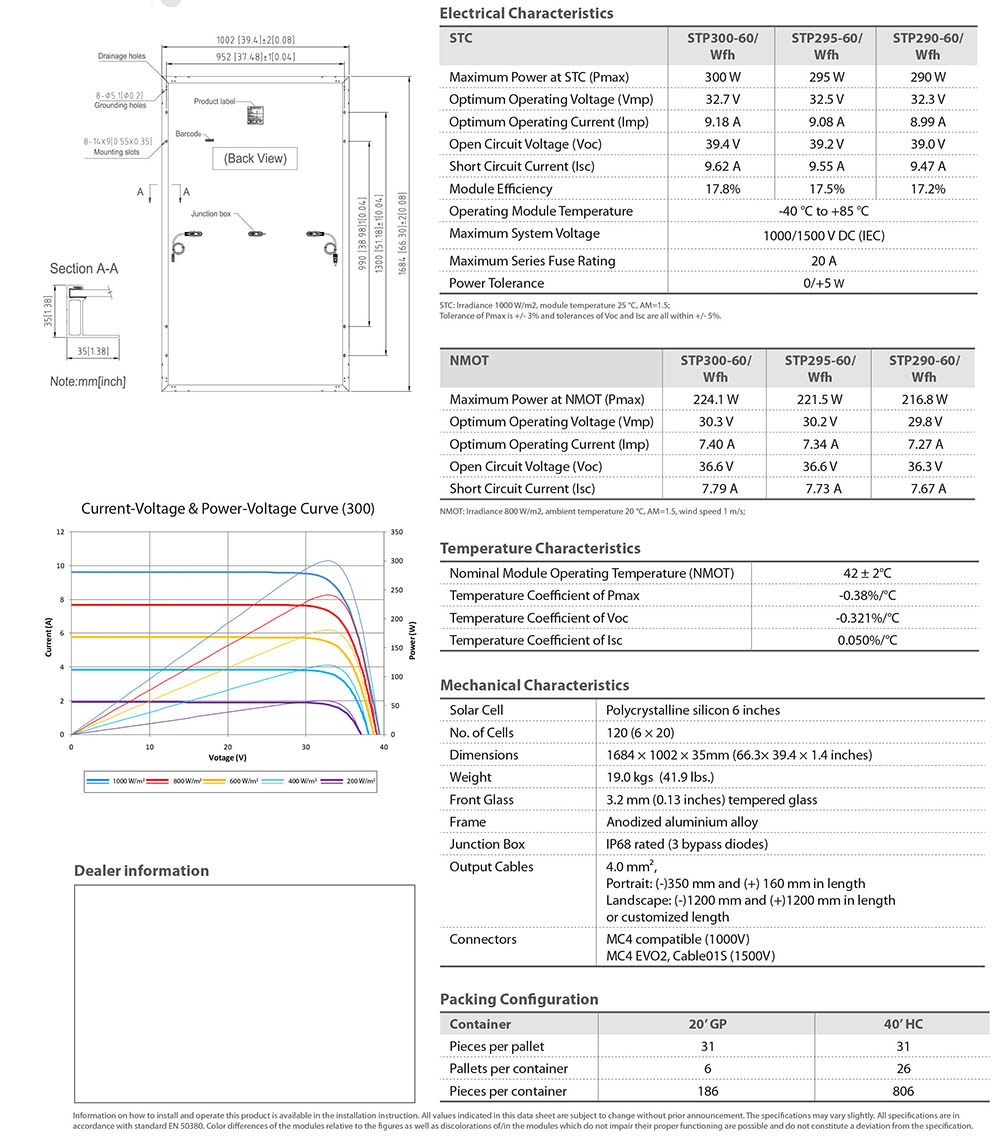

Technical Specifications
Electrical Characteristics (STC)
| Parameter | 300W Model | 295W Model | 290W Model |
|---|---|---|---|
| Max Power (Pmax) | 300 W | 295 W | 290 W |
| Optimum Voltage (Vmp) | 32.7 V | 32.5 V | 32.3 V |
| Optimum Current (Imp) | 9.18 A | 9.08 A | 8.99 A |
| Open Circuit Voltage (Voc) | 39.4 V | 39.2 V | 39.0 V |
| Short Circuit Current (Isc) | 9.62 A | 9.55 A | 9.47 A |
Mechanical Dimensions
1,684 mm
Length
1,002 mm
Width
35 mm
Frame Thickness
19 kg
Weight
Certifications & Warranty
Warranty Period
- 12-year product warranty
- 25-year linear performance warranty
- 97.5% power output in first year
- 80.7% power output at year 25

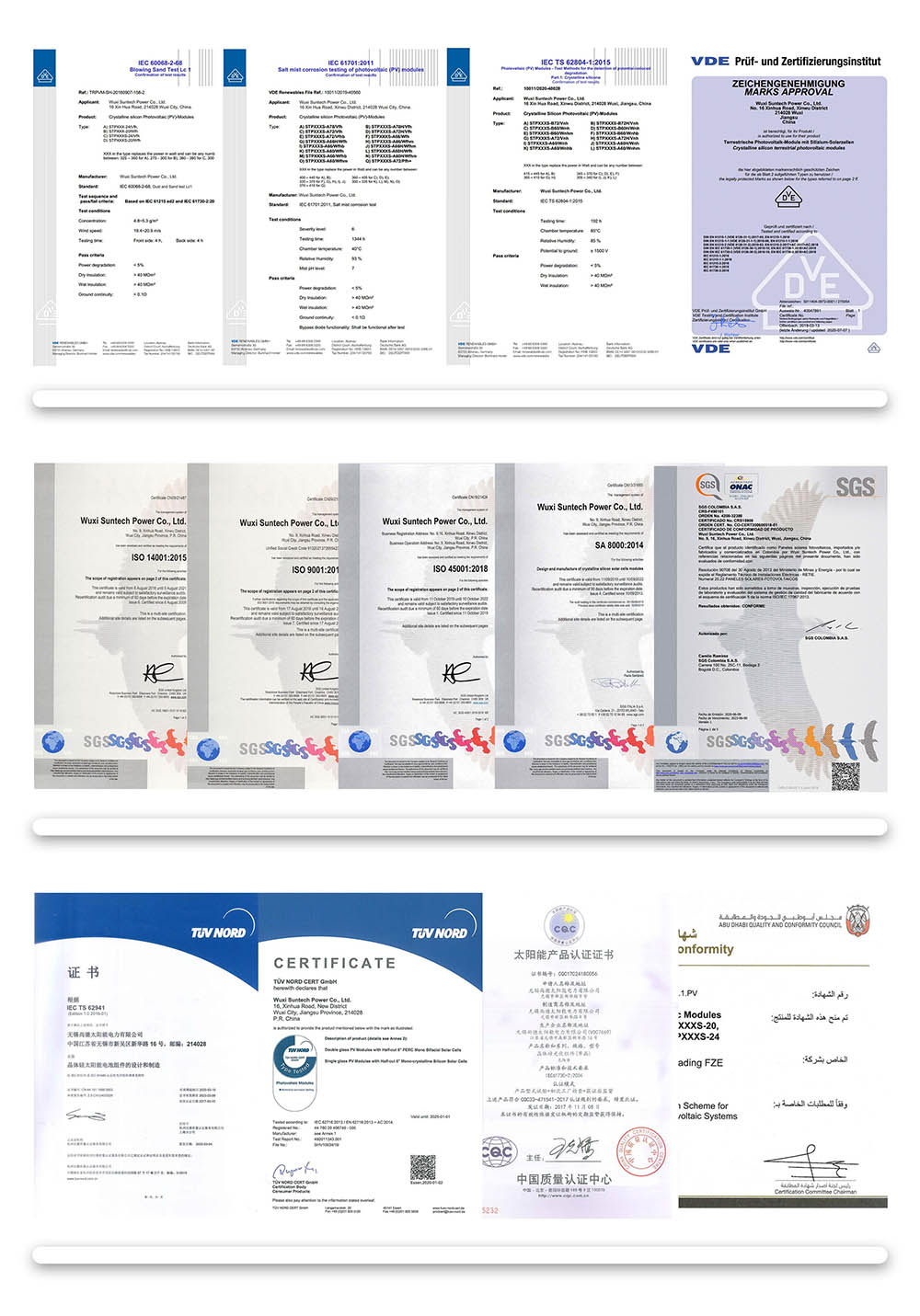

- Compliance & Certifications
- IEC 61215IEC 61730CEISO 9001ISO 14001ISO 45001
Environmental Durability
Static Load Capacity
- Front side: 5400 Pascal
- Rear side: 3800 Pascal
