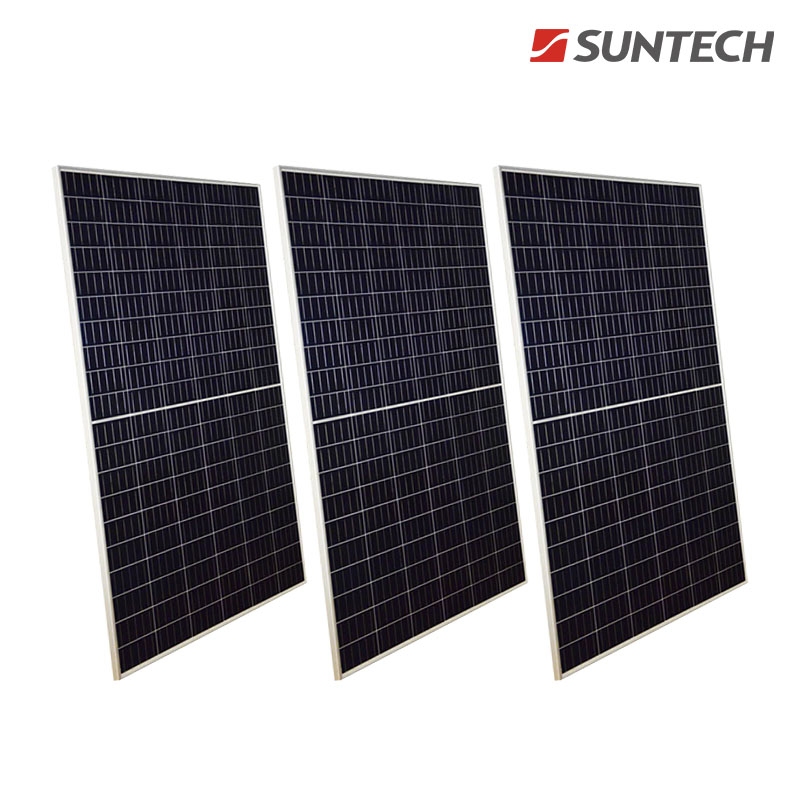

300W Polycrystalline Solar Panel for Home Power
This 300W polycrystalline solar panel is designed for home power systems. Its robust construction ensures durability and long-term reliability, making it suitable for various environmental conditions.

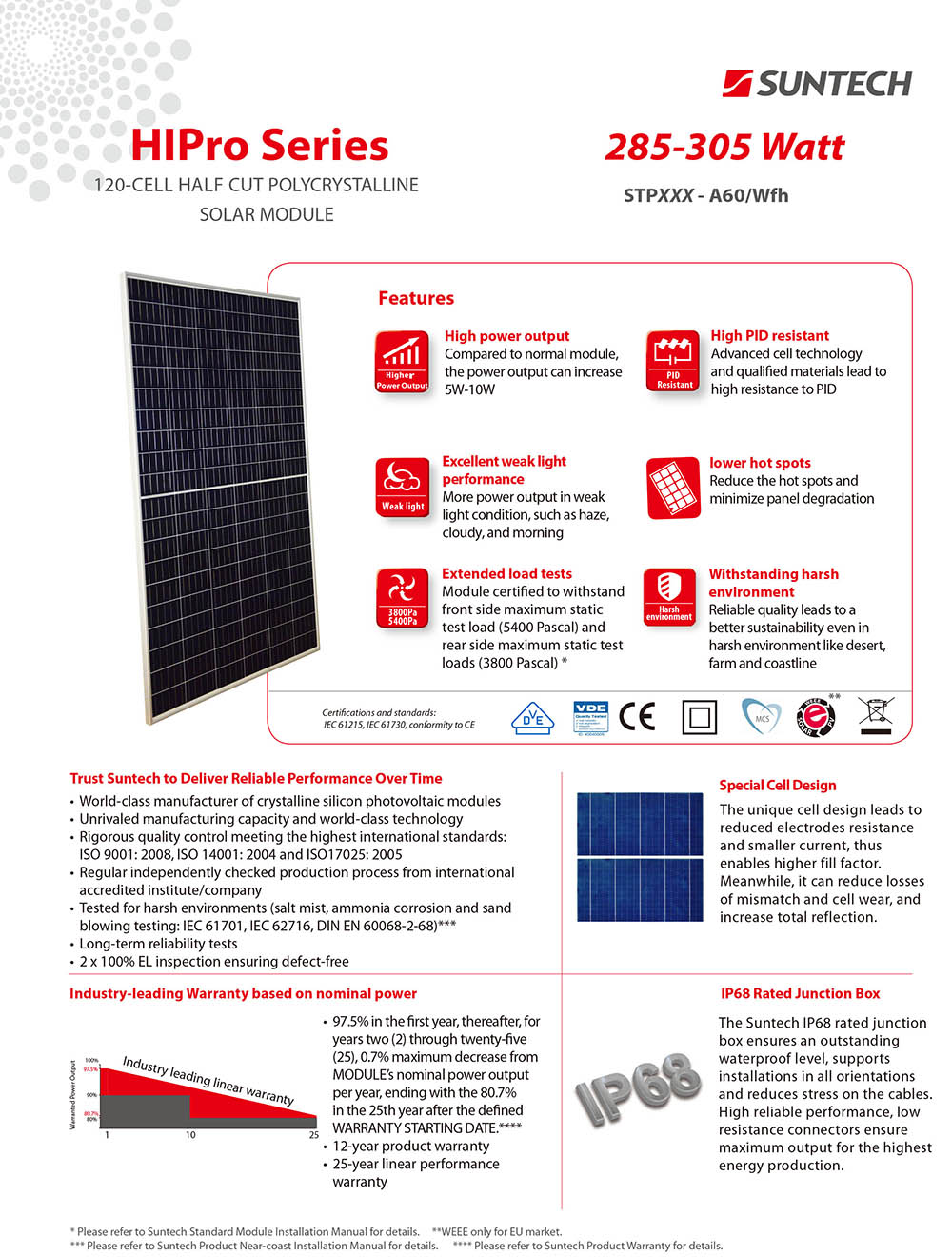

Technical Specifications
Overview
High-Efficiency Polycrystalline Solar Module
This 300W series polycrystalline solar panel is engineered for residential power systems, offering superior energy conversion and long-term reliability. Designed to excel in diverse environmental conditions, the module features advanced cell technology that minimizes power loss and enhances performance in weak light. With a robust build and certified durability, it provides a cost-effective and sustainable energy solution for home installations.
Key Features
- Key Benefits

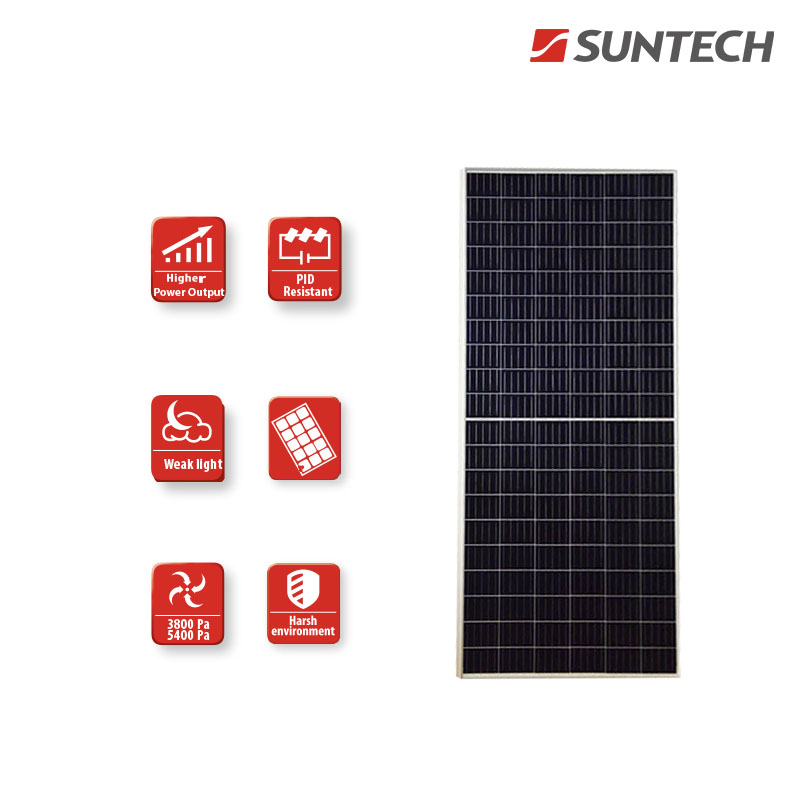

- PID ResistantWeak Light Performance120-Cell Half-Cut DesignHigh EfficiencyIP68 Junction Box
Electrical Performance
Performance (STC)
305 W
Maximum Power
39.4 V
Open Circuit Voltage
9.75 A
Short Circuit Current
18.1 %
Module Efficiency
Mechanical Data
Physical Dimensions
- Dimensions: 1684 x 1002 x 35 mm
- Weight: 19.0 kg
- Frame: Anodized aluminium alloy
- Front Glass: 3.2 mm tempered glass
Operating Conditions
Environmental Ratings
| Metric | Rating |
|---|---|
| Front Load | 5400 Pa |
| Rear Load | 3800 Pa |
| Operating Temperature | -40°C to +85°C |
| Max System Voltage | 1000/1500 V |
Warranty
Standard Warranty
- 12-year product warranty
- 25-year linear performance warranty
- 97.5% power output in first year
- 80.7% power output at 25th year
