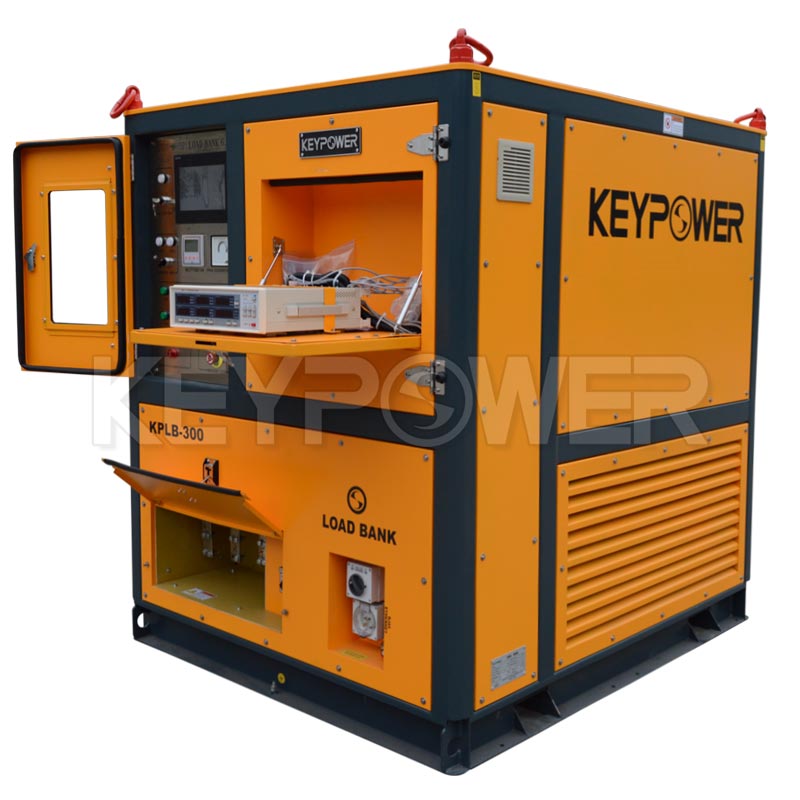

300kW Resistive Load Bank for Power System Testing
This 300kW resistive load bank simulates real-world electrical loads for comprehensive power system testing. It features multiple load step settings and user-friendly controls for safe operation.
Technical Specifications
Overview
Professional Power System Testing
This 300kW resistive load bank provides a reliable and precise solution for testing generators, UPS systems, and battery banks. Designed for industrial applications, it features advanced load step control and comprehensive protection mechanisms to ensure safe performance verification. The unit is built with high-grade components for durability and offers flexible control options for both local and remote operation.
Technical Specifications
- Load Type
- Resistive
- Power Factor
- 1
- Rated Voltage
- 110-480 VAC (3P4W)
- Rated Frequency
- 50/60 Hz
- Cooling Mode
- Forced air-cooled (Industrial grade axial fan)
Performance Metrics
- Load Step Resolution
- 10 kW
- Load Control Accuracy
- ± 5%
- Measurement Accuracy Grade
- 0.3
Features & Controls
Safety Protections
Overheating ProtectionFan Failure ProtectionOverload Protection
- Control Modes
- Local Manual ControlRemote Control (Optional)
Operating Environment
Environmental Limits
| Parameter | Specification |
|---|---|
| Max Altitude | ≤ 3000m |
| Ambient Temp | -10 to +50 °C |
| Relative Humidity | ≤ 80% |
