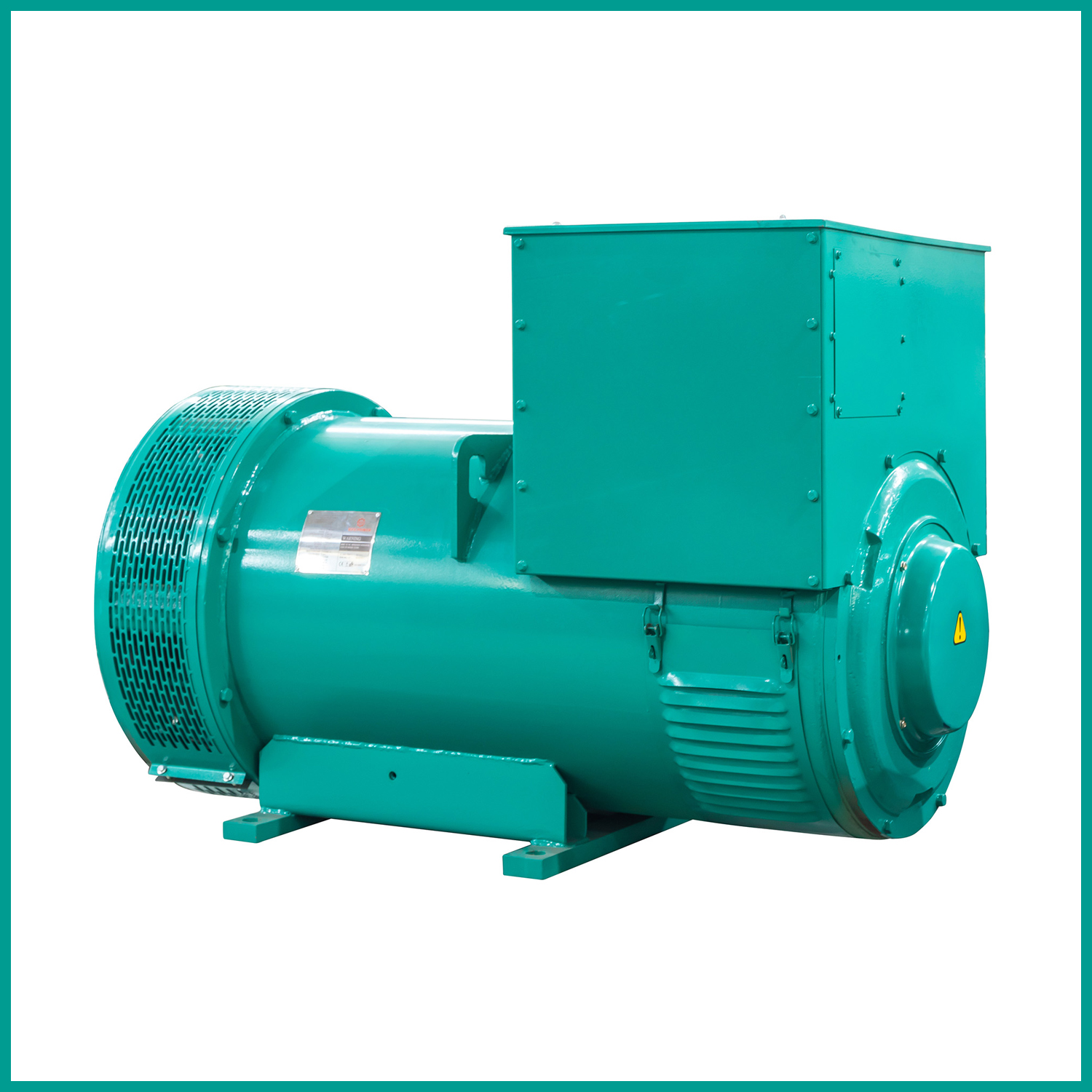

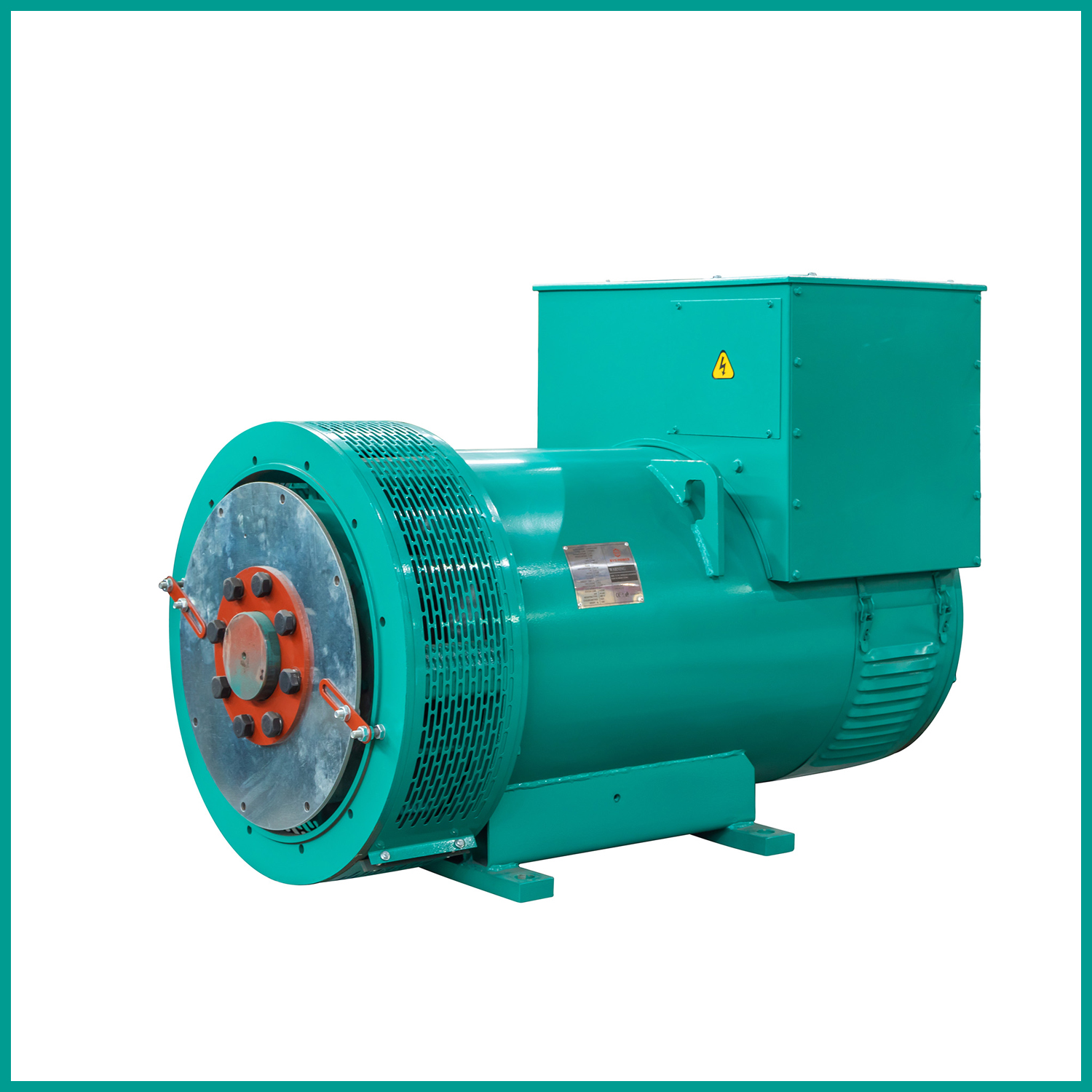

300KVA 240KW Brushless Alternator
This 300KVA/240KW brushless alternator is designed for power generation applications. It features a robust construction for durability and reliable performance.
Technical Specifications
Overview
High-Performance Brushless AC Alternator
This 300KVA/240KW brushless AC synchronous alternator is engineered for reliability in both industrial and marine environments. Featuring a robust 2/3 pitch winding design, it minimizes waveform distortion and ensures stable power output even under non-linear loads. The unit is built with high-grade insulation and dynamic rotor balancing, providing a durable, low-maintenance solution for power generation systems.
Performance Metrics
Rated Power
300 KVA
Apparent Power
240 KW
Active Power
- Short Time Overload Capacity
- 150% of rated current for 2 minutes
- Unbalanced Load Tolerance
- 25 %
Electrical Specifications
Insulation Class
Class H
Interference Standards
| Metric | Limit |
|---|---|
| THF (BS4999 Part 40) | < 2% |
| TIF (ASA C50.12) | < 50 |
- Winding Pitch
- 2/3 Pitch
Mechanical & Design
Bearing Configuration
- Single bearing
- Two sealed ball bearings
- Enclosure Protection
- IP22IP23
- Rotor Balance Standard
- BS6861: Part 1 Grade 2.5
