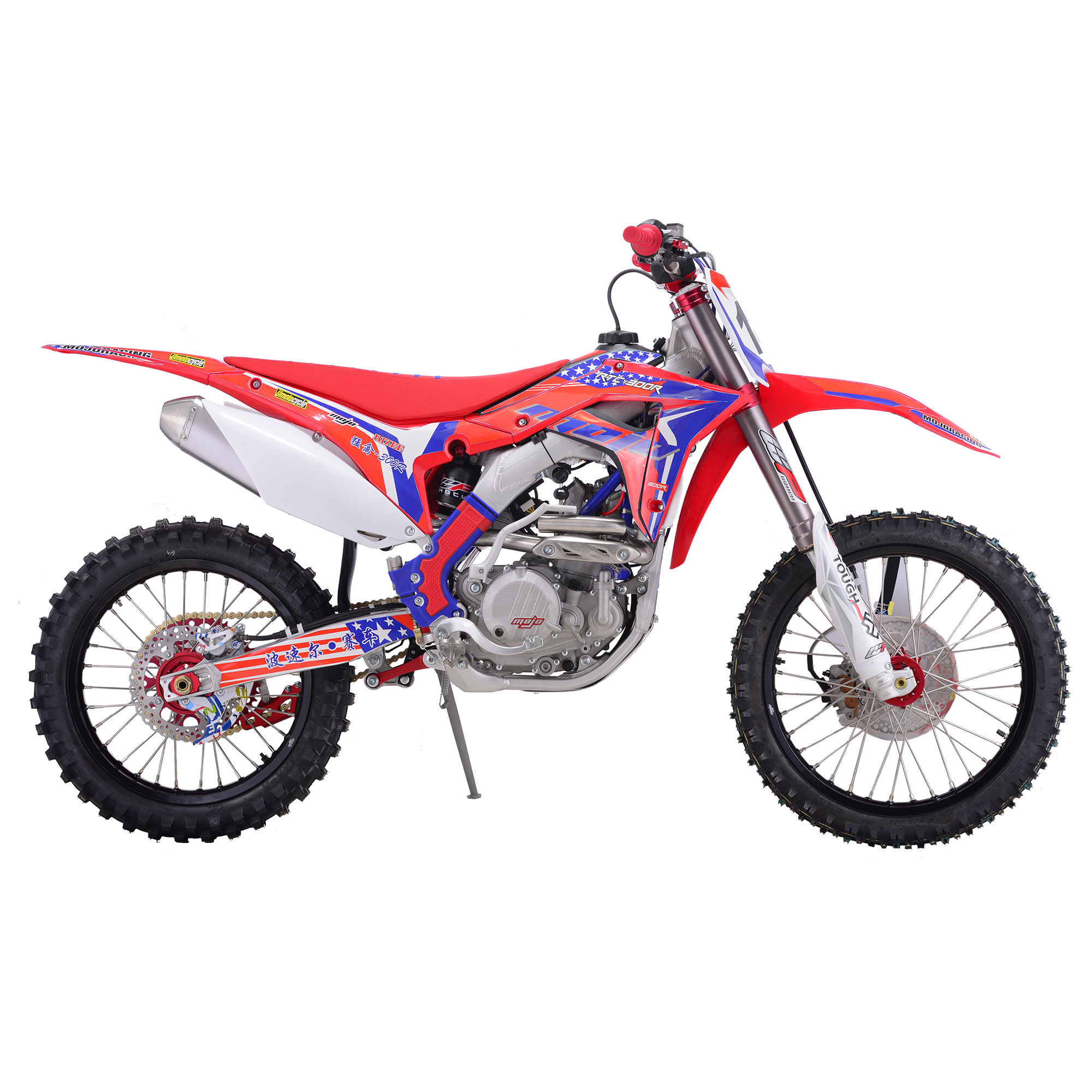

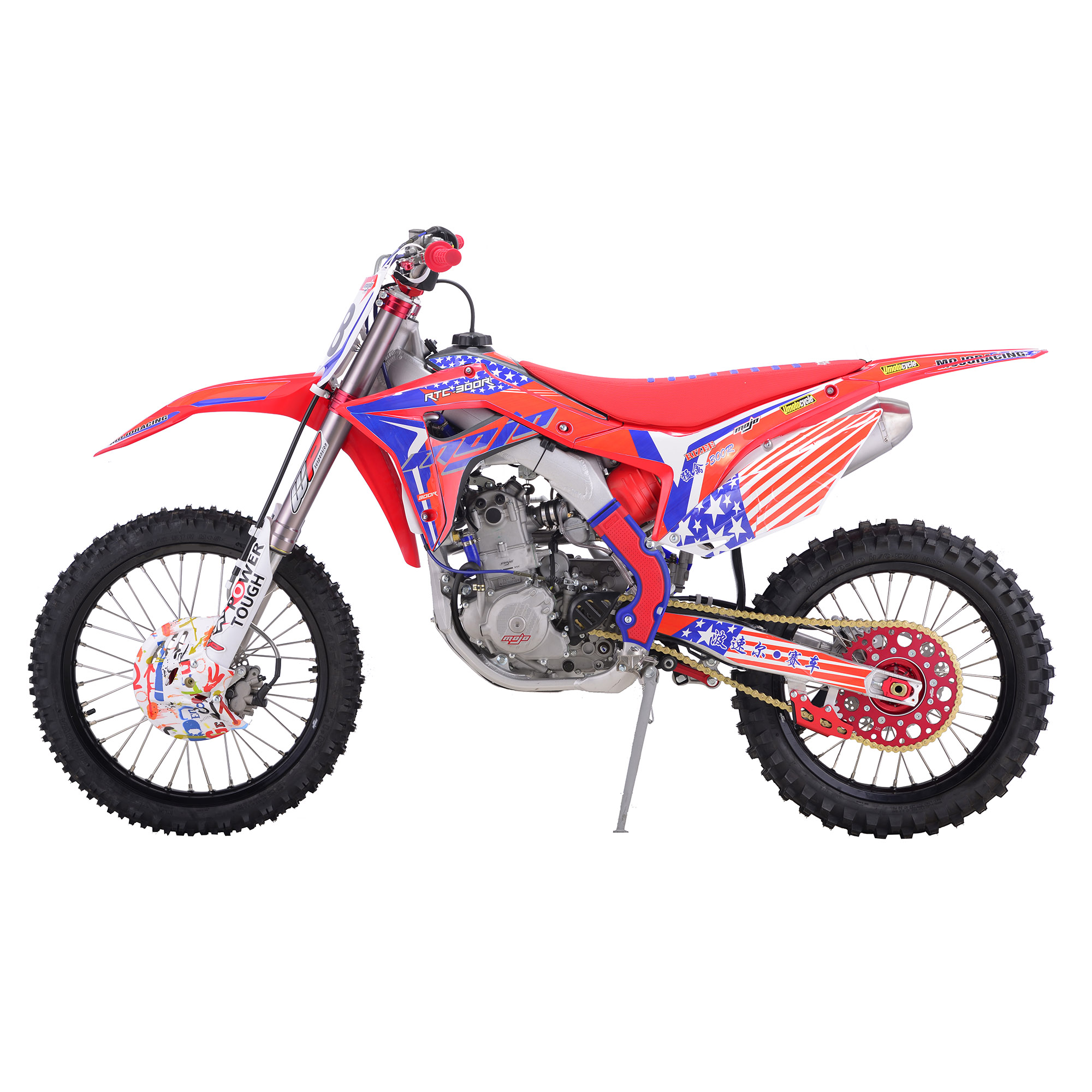

300cc Off-Road Dirt Bike
This 300cc dirt bike is designed for off-road adventures. It features durable suspension and high-performance tires for excellent handling on various terrains.
Technical Specifications
Overview
High-Performance Off-Road Motorcycle
This 300cc off-road dirt bike is engineered for professional racing and competitive use. It features a high-strength forged alloy frame and swing arm, providing a lightweight yet durable chassis for superior handling. With adjustable compression and rebound damping on both front and rear suspensions, riders can fine-tune the bike's performance to match specific terrain and riding styles.
Engine Performance
Engine Specifications
300 cc
Displacement
23 kW
Max Power
9,000 r/min
Rated Speed
Engine Details
- 4-stroke, water-cooled
- Bore & Stroke: 82 x 53.6 mm
- Electric/kick start
- 6-gear transmission
- PWK34 Carburetor
Chassis & Suspension
Suspension System
- Front Fork: 54/60-930 mm, compression & rebound adjustable
- Rear Shock: 480 mm, external air bag, compression & rebound adjustable
- Frame Construction
- Forged AlloyReinforced Alloy TubeLightweight Design
Dimensions & Capacity
Physical Dimensions
| Measurement | Value | Unit |
|---|---|---|
| Seat Height | 950 | mm |
| Wheel Base | 1,450 | mm |
| Ground Clearance | 290 | mm |
| Fuel Tank Capacity | 6.5 | L |
Weight & Loading
116 kg
Net Weight
90 kg
Max Loading
