Technical Specifications
Overview
Portable Power Solution

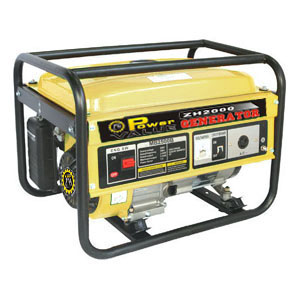

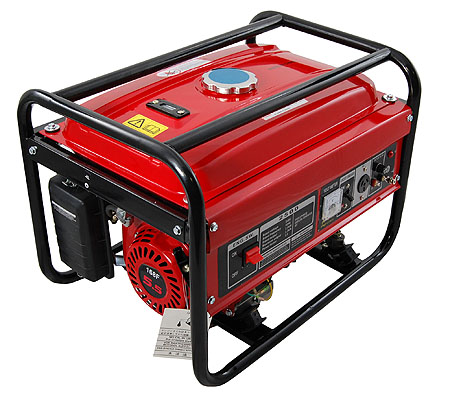

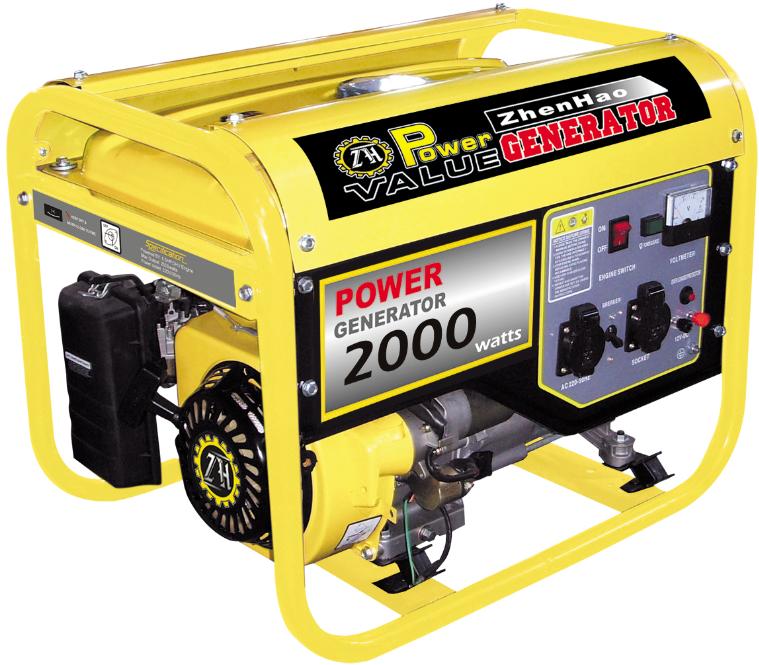

This portable gasoline generator is engineered for reliable power generation in diverse environments, from construction sites to emergency backup scenarios. It features a robust 4-stroke, air-cooled engine and a durable protective frame, ensuring consistent performance and longevity. With versatile AC and DC output options, it provides a dependable electrical source for tools, appliances, and electronic devices.
Performance
Featured Power Metrics
2.5 kW
Max Rated Output
15 L
Fuel Tank Capacity
72 dB
Max Noise Level
Electrical Specifications
| Parameter | Specification |
|---|---|
| Rated Frequency | 50 / 60 Hz |
| Rated Voltage | 230 / 120 V |
| Phase | Single phase |
| Power Factor | 1 |
| DC Output | 12V 8A |
Engine Details
Engine Specifications
- Displacement: 163 cc
- Compression Ratio: 8.5:1
- Rated Power: 5.5 HP @ 3600 rpm
- Starting System: Recoil starter
- Rotation Direction: Clockwise (from flywheel)
- Engine Configuration
- Single cylinder4-strokeAir-cooledOHVGasoline
Physical Attributes
Size and Weight
- Dimensions (L x W x H): 570 x 455 x 475 mm
- Net Weight: 42 kg
- Gross Weight: 44 kg
Safety & Maintenance
Low oil alarm systemOverload protectionCE Certified
