2.8kW Portable Gasoline Generator
This gasoline generator delivers portable power with a maximum AC output of 2.8/3.2kW. Equipped with a 6.5HP engine, it features multiple AC outlets, a DC output, and a robust frame with wheels for easy transport.
Technical Specifications
Overview
Reliable Portable Power

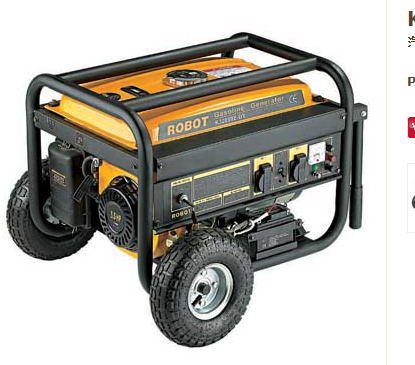

The KJ3000E-DY is a versatile gasoline-powered generator engineered for reliable performance on construction sites, at outdoor events, or as an emergency power backup solution. Built with a robust frame and integrated wheels, it offers excellent portability without compromising on power. Featuring a 6.5HP 4-stroke engine and a user-friendly control panel, this generator provides consistent AC output for a variety of professional and recreational applications.
Performance Metrics
Power Output
2.8 kW
Rated AC Output
3.2 kW
Max AC Output
Electrical Specifications
| Parameter | Value |
|---|---|
| Frequency | 50/60 Hz |
| Voltage | 110~120 / 220~240 V |
| Power Factor | CosΦ = 1.0 |
| Regulation | AVR System |
Engine Details
Engine Specifications
- Model: B168F
- Power: 6.5 HP
- Type: Air-cooled, 4-Stroke, OHV, Single-cylinder
- Displacement: 196 ml
- Bore x Stroke: 68mm x 54mm
Fuel & Lubrication
- Fuel Type: Unleaded Gasoline
- Fuel Tank Capacity: 16 L
- Fuel Consumption: ≤395g/KW-hour
- Engine Oil Capacity: 0.6 L
Construction & Operation
Standard Features
Oil AlertFuel GaugeAC VoltmeterAC Circuit Breaker
- Starting Mechanism
- Recoil StartElectric Start
- Build Quality
- Frame constructed from Φ32mm steel tubing with integrated wheels for mobility
