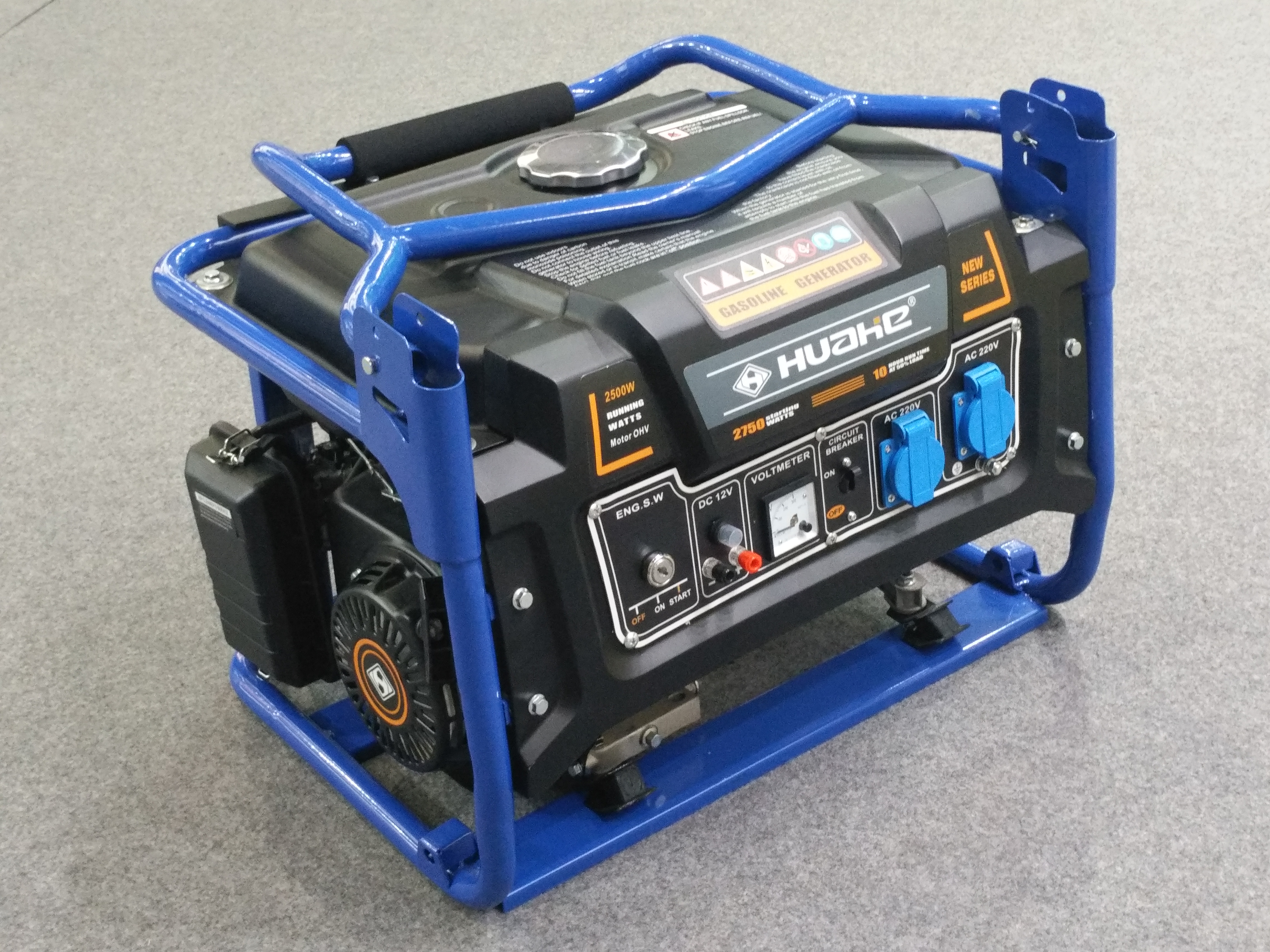

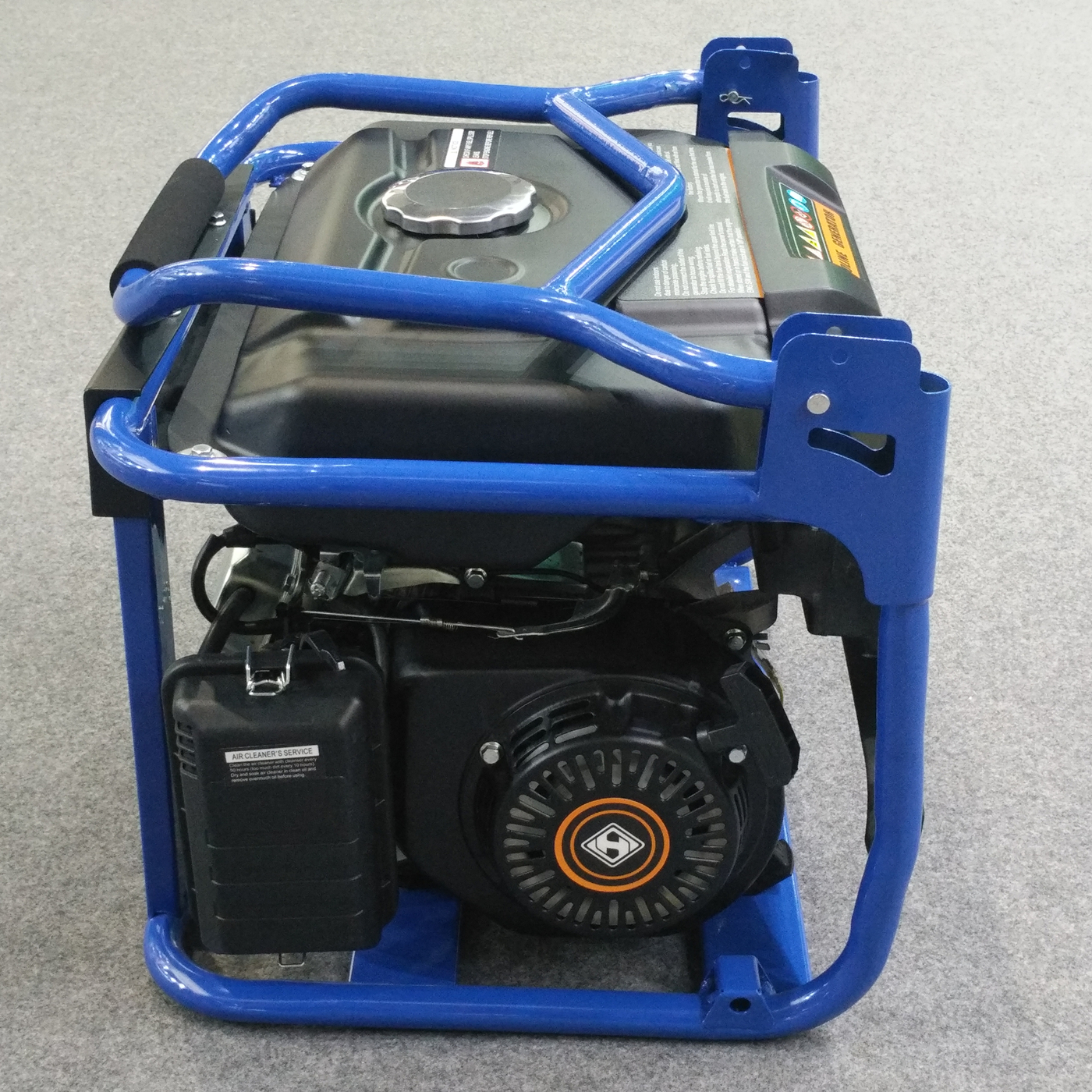

2.75kW Portable Gasoline Generator Set
This gasoline generator set provides a portable power solution for various applications. It delivers 2500W running wattage and 2750W starting wattage, and includes AC 220V outlets and a DC 12V output.
Technical Specifications
Overview
Reliable Portable Power
This portable gasoline generator set is engineered for consistent, stable power delivery in various professional and field applications. Featuring an overhead valve (OHV) engine with automatic decompression and a stable transistor ignition system, it ensures easy starting and dependable performance. The unit is designed with safety and longevity in mind, incorporating automatic voltage regulation to protect sensitive equipment and an automatic oil alert system to prevent engine damage.
Power Performance
Key Performance Metrics
2,000 W
Rated Power
2,200 W
Max Power
220 V
Rated Voltage
9.1 A
Rated Current
Engine Specifications
Engine Configuration
| Feature | Specification |
|---|---|
| Model | 168F |
| Type | Single cylinder, 4-Stroke |
| Displacement | 163cc |
| Max Output | 5.5 HP |
Technical Specifications
- Fuel Tank Capacity
- 15 L
- Frequency
- 50 Hz
- Noise Level (at 7m)
- 65 dB
- Starting System
- Recoil startKey start
Physical Dimensions
- Dimensions (L×W×H)
- 620 x 450 x 445 mm
- Net Weight
- 38 kg
Key Features
Safety & Operational Features
- Automatic Voltage Regulator (AVR) for stable output
- Low oil level automatic shutdown
- Large patented silencer for noise reduction
- Easy-read fuel meter
- Automatic decompression device for easy starting
