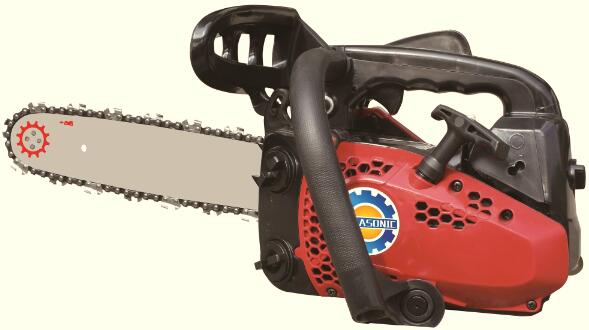

25.4cc Gasoline Powered Chain Saw
This gasoline chain saw features a 25.4cc engine for powerful cutting performance. Its ergonomic design ensures comfortable handling during pruning, limbing, and light-duty tasks.
Technical Specifications
Overview
Compact & Powerful Gasoline Chainsaw
This 25.4cc gasoline-powered chainsaw is engineered for efficiency and precision, making it an ideal choice for pruning, limbing, and light-duty wood cutting tasks. Its compact, ergonomic design ensures excellent maneuverability and reduces user fatigue during extended operation. Built with a robust mechanical plunger pump and a reliable solid-state ignition system, this tool provides a consistent performance balance for both professional and home-use applications.
Engine & Performance
Engine Performance
25.4 cm3
Displacement
0.7 kW
Max Power
12,000 r/min
Max Speed
Technical Details
Technical Specifications
| Feature | Specification |
|---|---|
| Fuel Mixture Ratio | 40:1 |
| Fuel Tank Capacity | 230 ml |
| Oil Tank Capacity | 160 ml |
| Carburetor Type | Diaphragm |
| Ignition System | Solid-state |
| Dry Weight | 3.0 kg |
Cutting System
Cutting Attachment Details
- Guide Bar: Kangxin AP12-44-509P
- Usable Cutting Length: 260mm
- Saw Chain: Kangxin ALP-50
- Chain Pitch: 3/8 inch
- Chain Gauge: 0.050 inch
Safety & Environment
- Safety & Vibration Data
- Sound Pressure: 100dB(A)Sound Power: 113dB(A)Vibration: 7.5 m/s2Mechanical Plunger Pump
