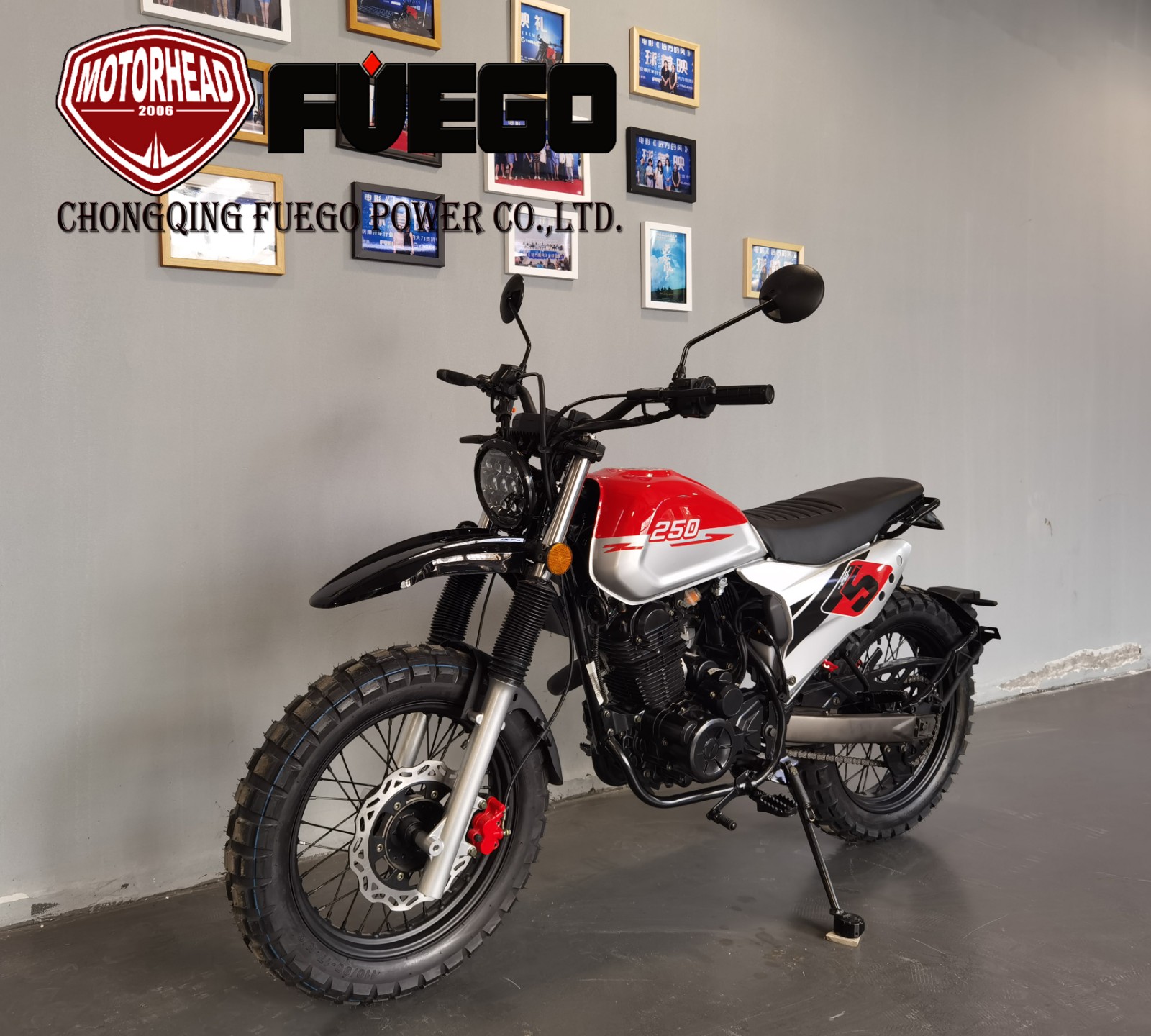

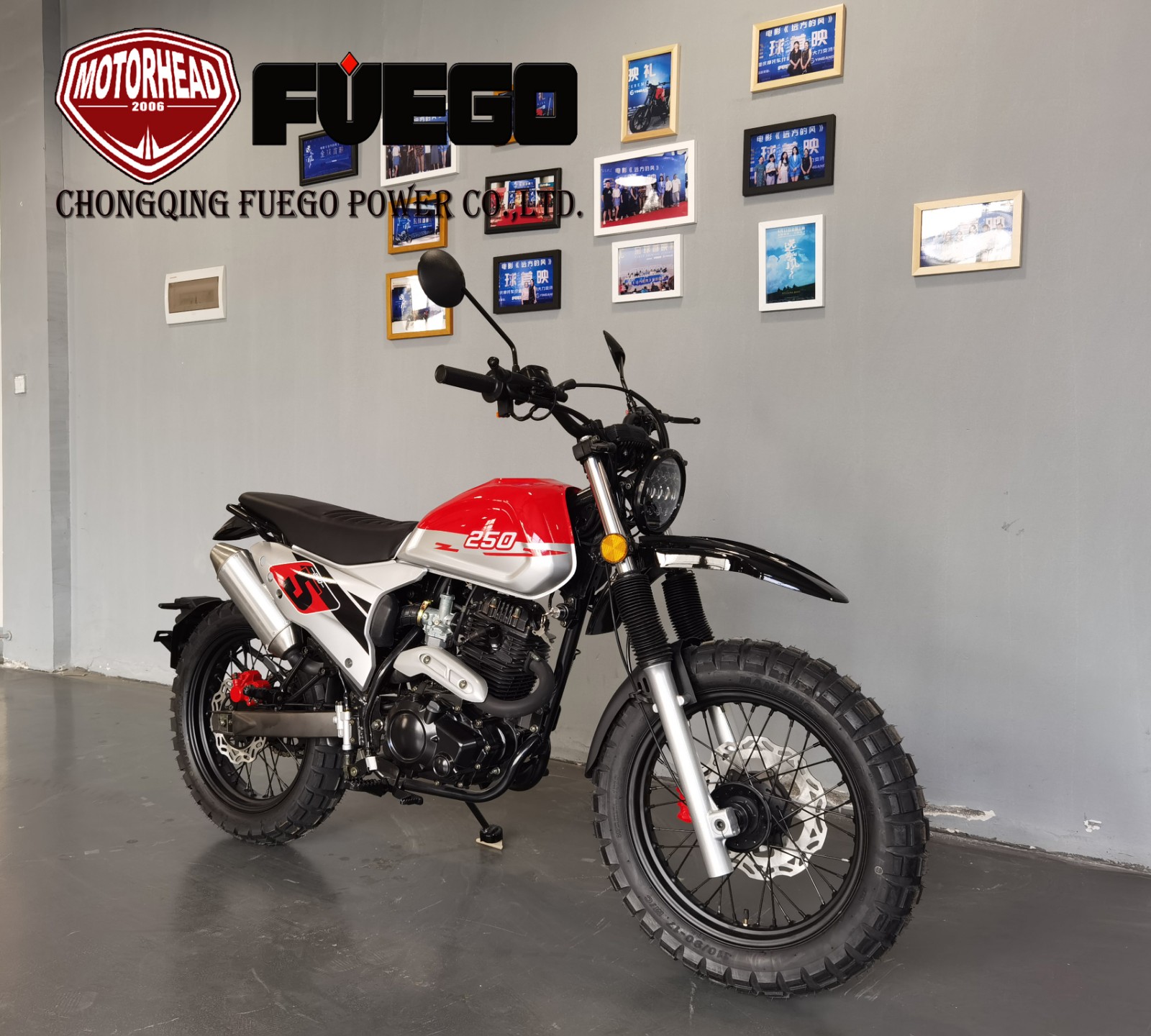

250cc On/Off-Road Motorcycle
This 250cc motorcycle is designed for both on and off-road adventures. Its rugged tires and robust suspension system ensure excellent handling on various terrains.

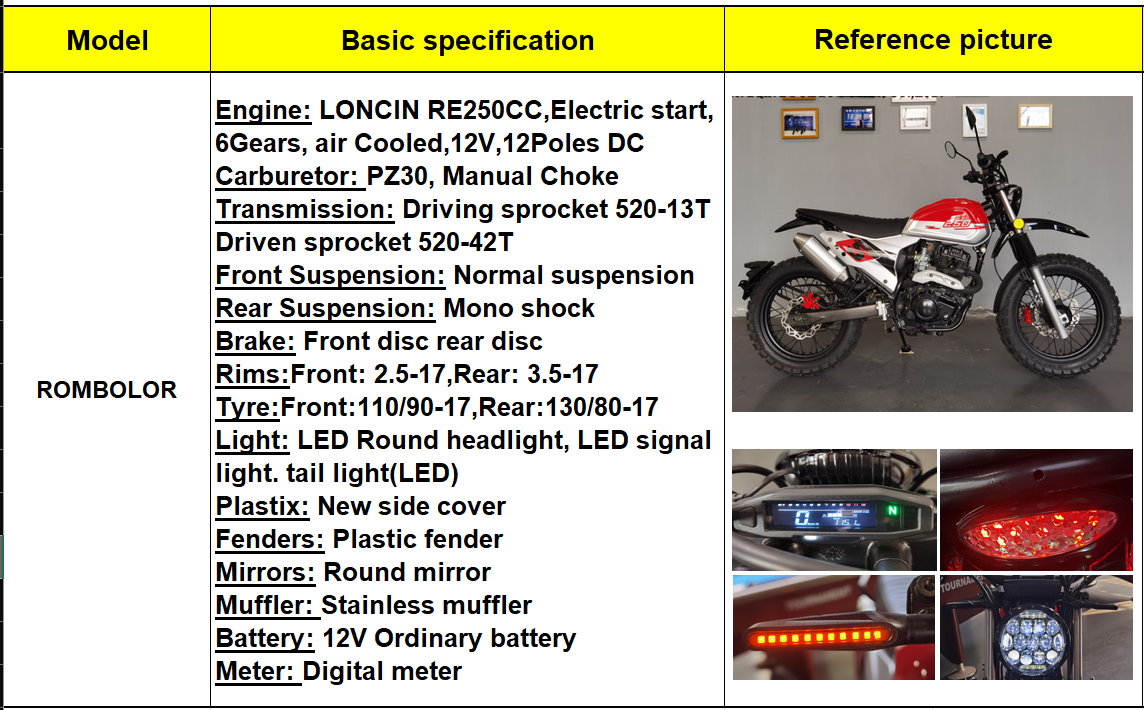

Technical Specifications
Overview
Versatile Performance
This 250cc motorcycle is engineered to bridge the gap between urban commuting and off-road exploration. Featuring a robust air-cooled engine and a responsive 6-gear transmission, it offers a reliable balance of power and efficiency. Its rugged suspension setup, including a rear mono-shock and disc brakes, ensures stable handling across varied terrains for both daily use and weekend excursions.
Engine and Transmission
Engine Configuration
250 cc
Displacement
6
Gears
Drivetrain
- Electric start system
- Air cooling
- 12V 12-pole DC electrical system
- PZ30 carburetor with manual choke
- Driving sprocket: 520-13T
- Driven sprocket: 520-42T
Chassis and Handling
Suspension and Braking
| Component | Specification |
|---|---|
| Front Suspension | Normal suspension |
| Rear Suspension | Mono-shock |
| Braking System | Front and rear disc brakes |
Wheels and Tires
| Position | Rim Size | Tire Size |
|---|---|---|
| Front | 2.5-17 | 110/90-17 |
| Rear | 3.5-17 | 130/80-17 |
Equipment and Features
Build Components
- Stainless steel muffler
- Plastic fenders
- Round mirrors
- 12V battery
- Equipment
- LED HeadlightLED Signal LightsLED Tail LightDigital Meter
