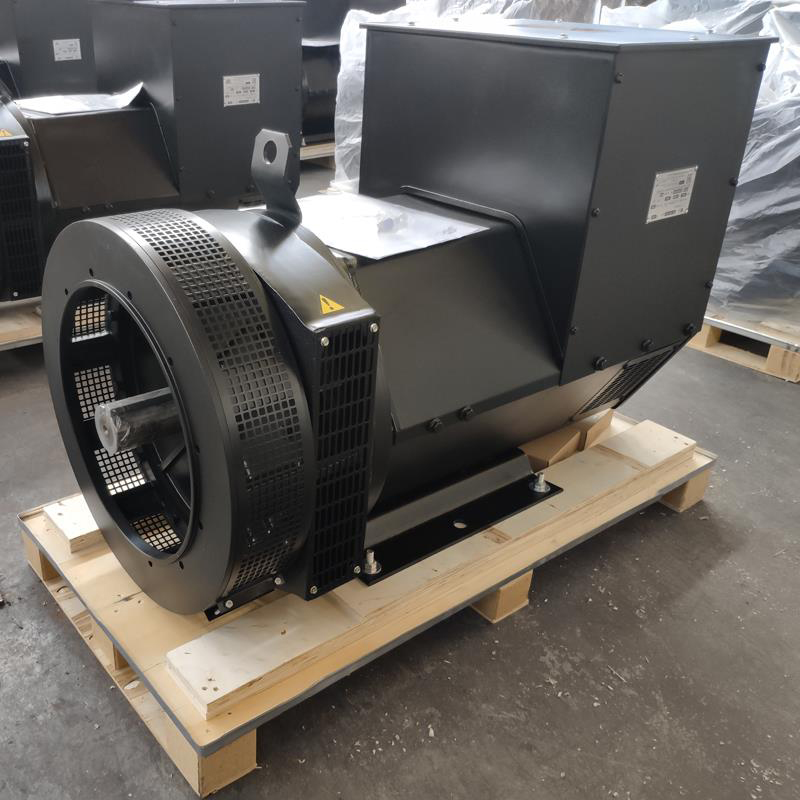

250 KVA 200 KW Brushless Alternator
This brushless alternator provides 250 KVA or 200 KW of power. It is designed for power generation applications requiring stable and consistent electrical output.
Technical Specifications
Overview
High-Performance Brushless Alternator
The BYG Series brushless AC synchronous alternator is engineered for reliability and consistent power output in demanding industrial and marine environments. Featuring a robust brushless design and dynamic rotor balancing, it minimizes maintenance requirements while ensuring stable performance. With standard 2/3 pitch windings and advanced voltage regulation, this unit is optimized for non-linear loads and seamless network integration.
Performance Metrics
Power Ratings
250 kVA
Rated Power (kVA)
200 kW
Rated Power (kW)
Electrical Specifications
Insulation Class
Class H
Voltage Regulation Features
- Automatic Voltage Regulator (AVR) included
- Permanent magnetic excitation
- Transient voltage dip: 20% Un
- Voltage recovery time: 0.2 - 1.0 seconds
Interference Compliance
| Standard | Limit |
|---|---|
| THF (BS4999 Part 40) | < 2% |
| TIF (ASA C50.12) | < 50 |
Mechanical Design
- Enclosure Rating
- IP22IP23
- Bearing Configuration
- Single or two sealed ball bearings
Operational Capabilities
Overload Capacity
- 150% rated current for 2 minutes
- 110% rated current for 1 hour in six
- Unbalanced Load Tolerance
- 25 %
