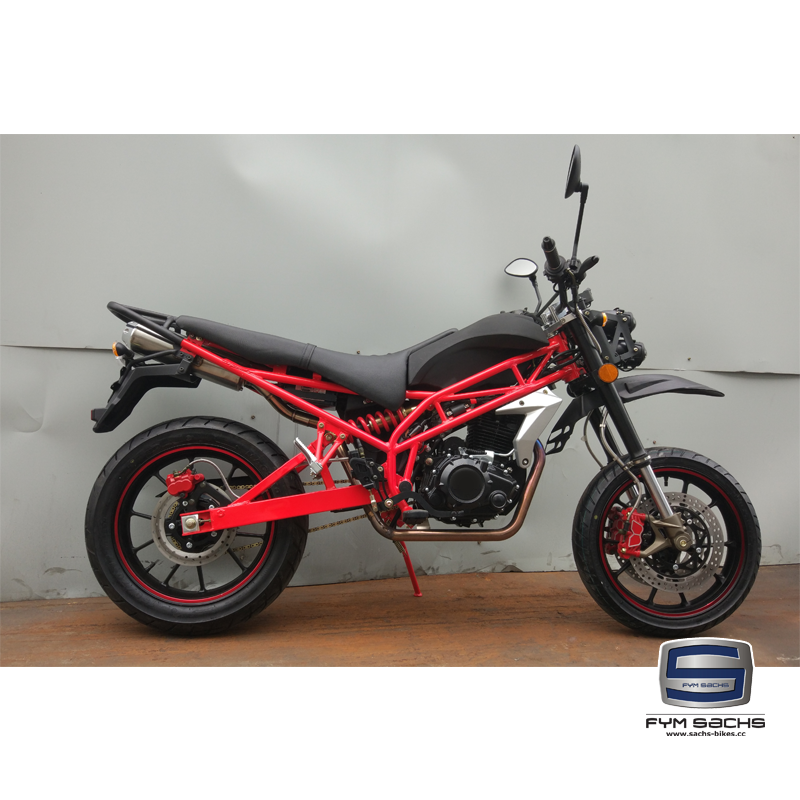

230cc 6-Speed Air-Cooled Motorcycle
This 230cc, 4-stroke motorcycle features a 6-gear transmission and air-cooled engine. It is equipped with front and rear disc brakes, and rides on 17-inch tires.
Technical Specifications
Overview
High-Performance Air-Cooled Motorcycle
This 230cc 4-stroke motorcycle is engineered for reliability and performance on various terrains. Featuring an international 6-gear transmission and a responsive air-cooled SOHC engine, it provides excellent agility and power for professional use. The lightweight design combined with robust disc braking systems ensures both safety and handling precision for the rider.
Engine & Performance

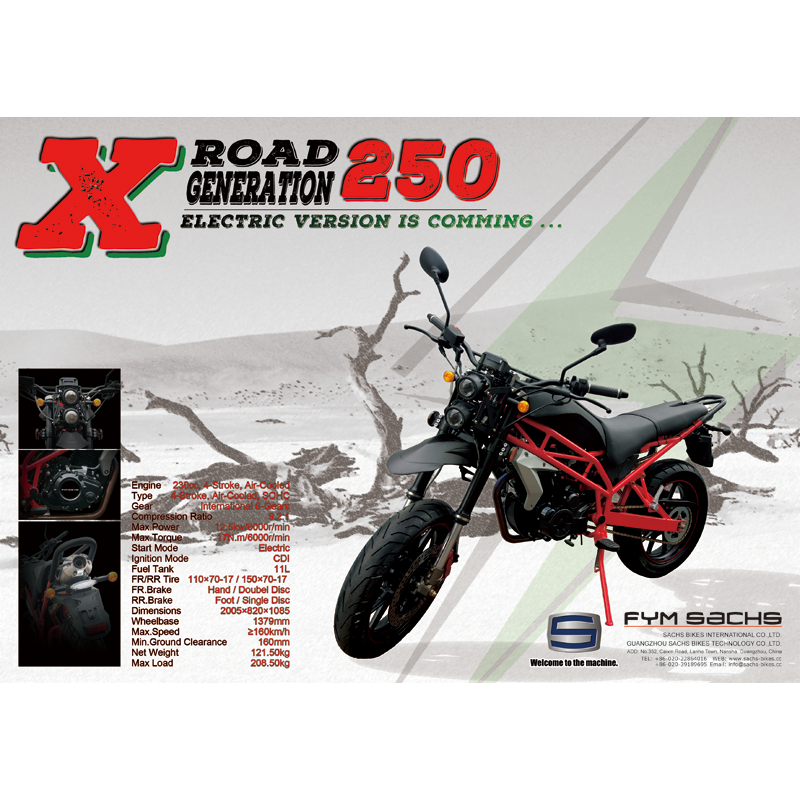

Engine Specifications
249 cc
Displacement
12.5 kW
Max Power
17 N.m
Max Torque
Performance Metrics
- Max Speed: ≥125 km/h
- Compression Ratio: 9.2:1
- Start Mode: Electric
- Ignition: CDI
Dimensions & Capacity
Dimensions & Loading
| Metric | Value |
|---|---|
| Length x Width x Height | 2005 x 820 x 1085 mm |
| Wheelbase | 1379 mm |
| Ground Clearance | 160 mm |
| Net Weight | 121.5 kg |
| Max Load | 208.5 kg |
| Fuel Tank | 11 L |
Chassis & Handling
- Braking System
- Front Double DiscRear Single Disc
- Tire Configuration
- 110/70-17 Front, 150/70-17 Rear
