Technical Specifications
Product Overview
Reliable Portable Power Solution

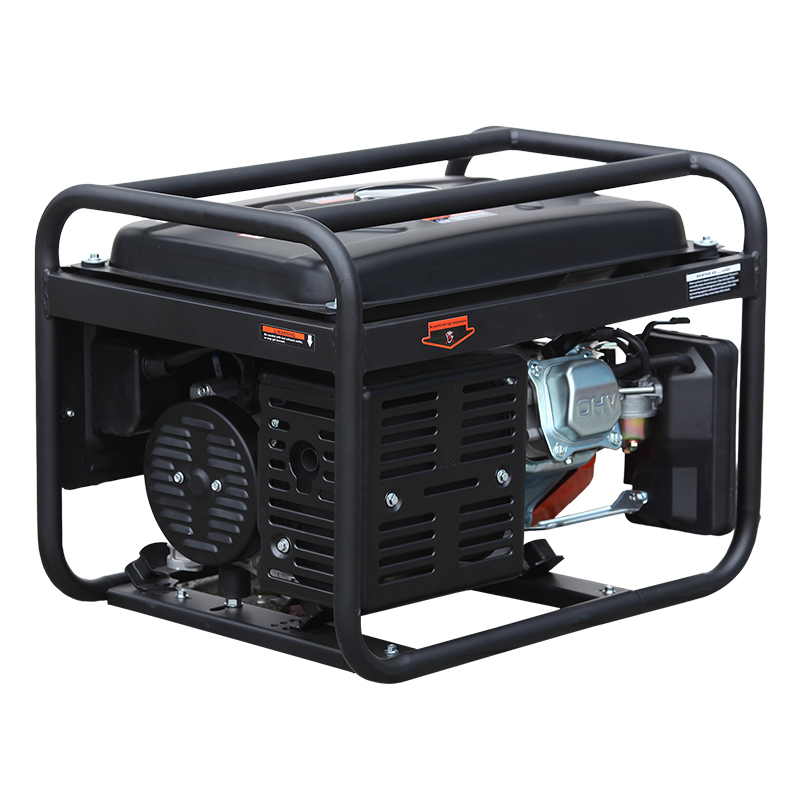

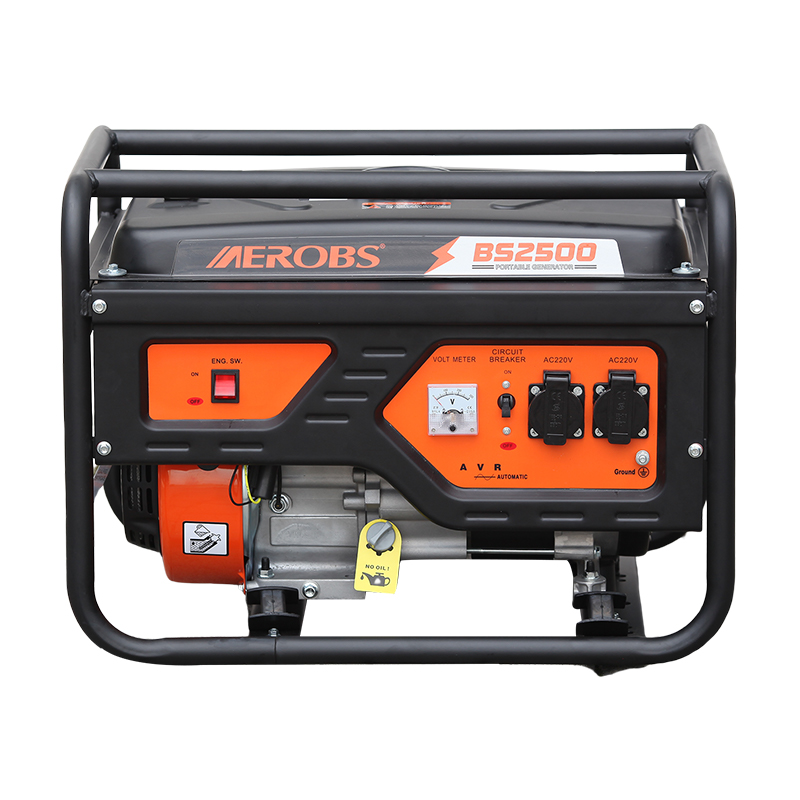

The BS2500 is a robust 2.2kW gasoline generator engineered for versatile power needs in remote locations or during outages. Featuring a 212cc OHV engine and a durable protective frame, it offers a stable power supply for tools and appliances. With integrated safety features like an Automatic Voltage Regulator (AVR) and low oil protection, this unit ensures reliable performance for both home and professional applications.
Performance Metrics
Key Performance Indicators
2.2 kW
Maximum Power
212 cc
Displacement
15 L
Fuel Tank
Engine Specifications
- Engine Configuration
- Single cylinder, four stroke, forced air cooling, OHV
- Rated Speed
- 3000-3600 rpm
- Oil Capacity
- 0.6 L
- Starting System
- RecoilE-start
Electrical Output
Output Parameters
| Parameter | Value |
|---|---|
| Rated Voltage | 110/220V |
| Rated Current | 9A |
| Frequency | 50/60HZ |
| Voltage Regulation | AVR (Automatic Voltage Regulator) |
Physical Characteristics
- Dimensions (L*W*H)
- 605 x 450 x 470 mm
- Weight (NW/GW)
- 40 / 41 kg
Safety & Compliance
Certifications
CEEuro-V
Safety Systems
- Circuit Breaker Protection
- Low Oil Alert Indicator
- Ground Connection Terminal
- Automatic Voltage Regulator (AVR)
Logistics
- Container Loading Quantity
- 230 units (20GP) / 485 units (40HQ)
