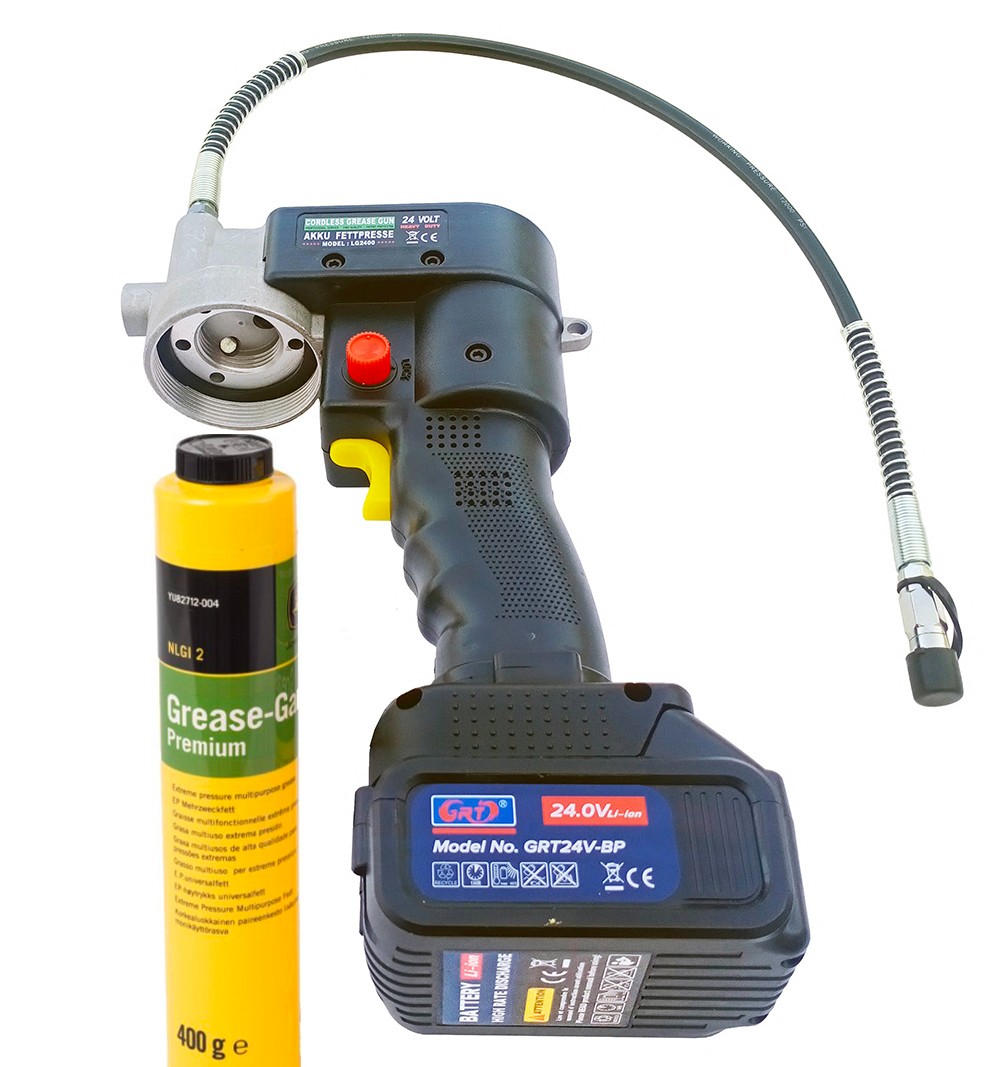

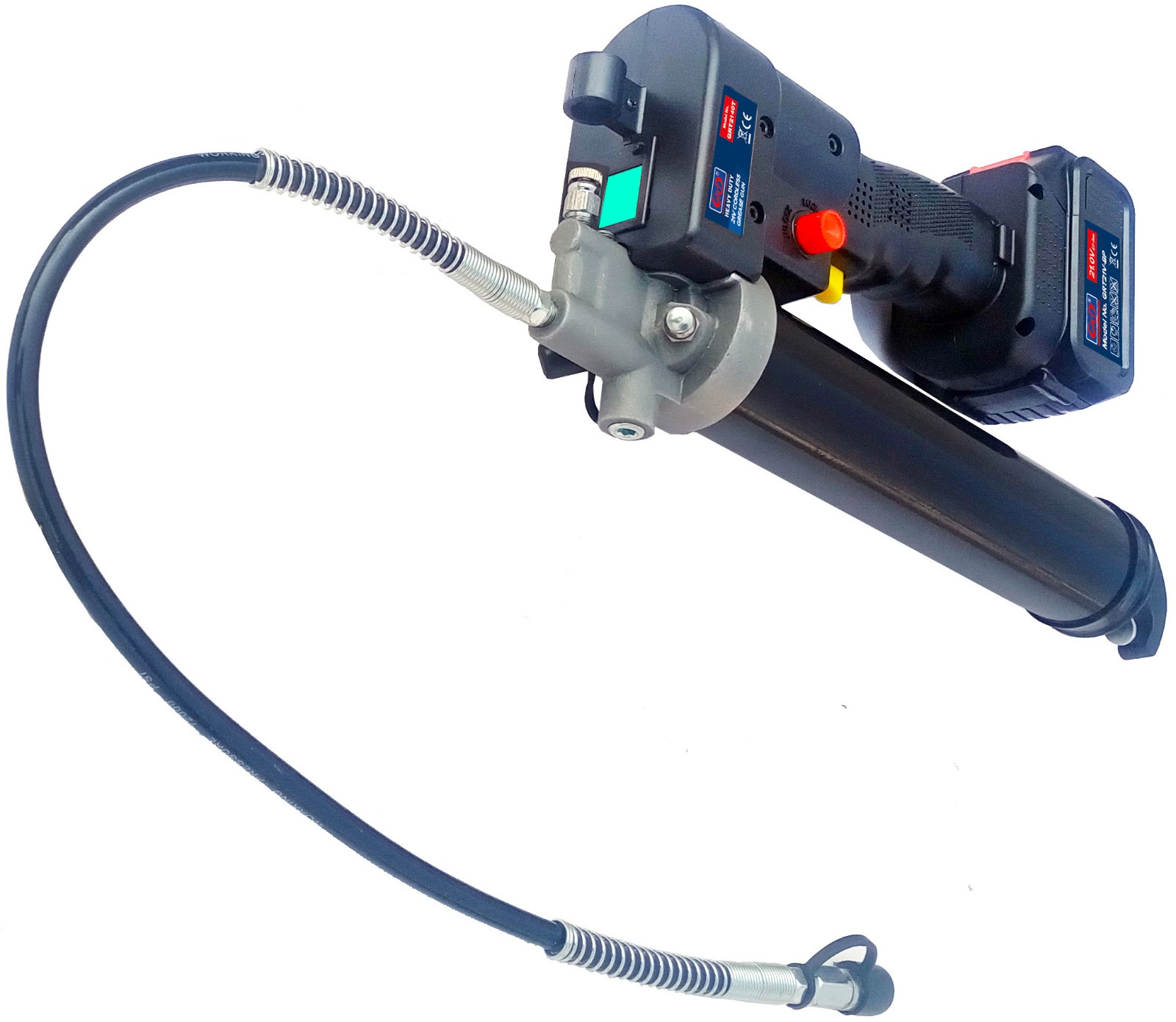

21V Cordless Grease Gun for Standard Cartridges
This cordless grease gun is designed for American and European markets, and it is compatible with standard grease cartridges. It features a high-pressure output for effective grease delivery and a cordless design for enhanced mobility.
Technical Specifications
Overview
High-Performance 21V Cordless Lubrication
This professional-grade 21V cordless grease gun is designed for efficient and reliable lubrication across automotive, industrial, and agricultural applications. It features a patented drive structure and a built-in LCD display to monitor battery capacity in real-time. Engineered for versatility, it supports multiple cartridge types including standard DIN1284, lube shuttle, and bellows-style cartridges, making it an ideal solution for international markets.
Technical Performance
Operating Voltage
21 V
Battery Voltage
- Safety & Protection
- Resettable FuseEMC TestedAnti-Jamming CircuitSelf-Locking Button
- Motor Protection System
- Equipped with a resettable fuse that cuts power if the oil route is blocked, preventing motor and battery burnout.
Cartridge Compatibility
Compatible Cartridge Types
| Type | Specification | Capacity |
|---|---|---|

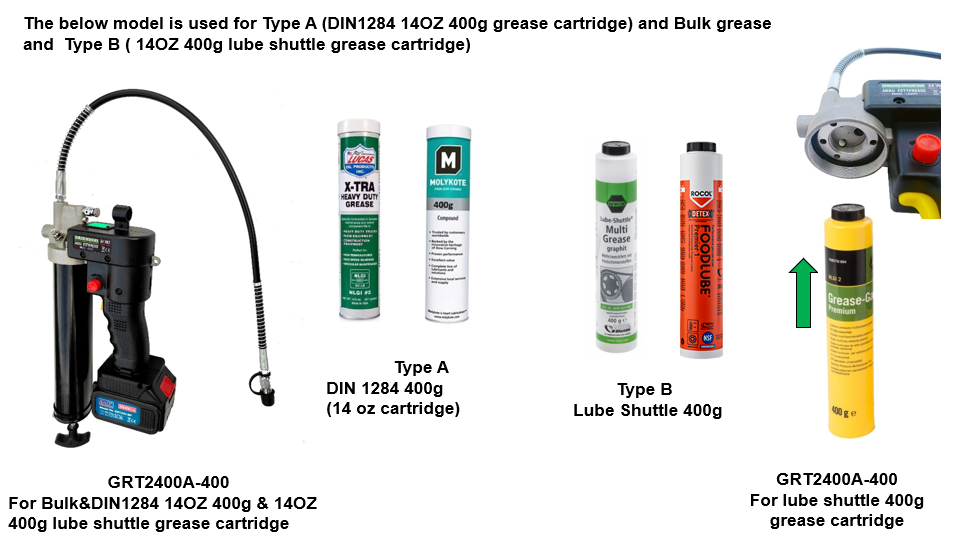

| Type A | DIN 1284 / Standard | 400g / 14oz |
| Type B | Lube Shuttle | 400g |

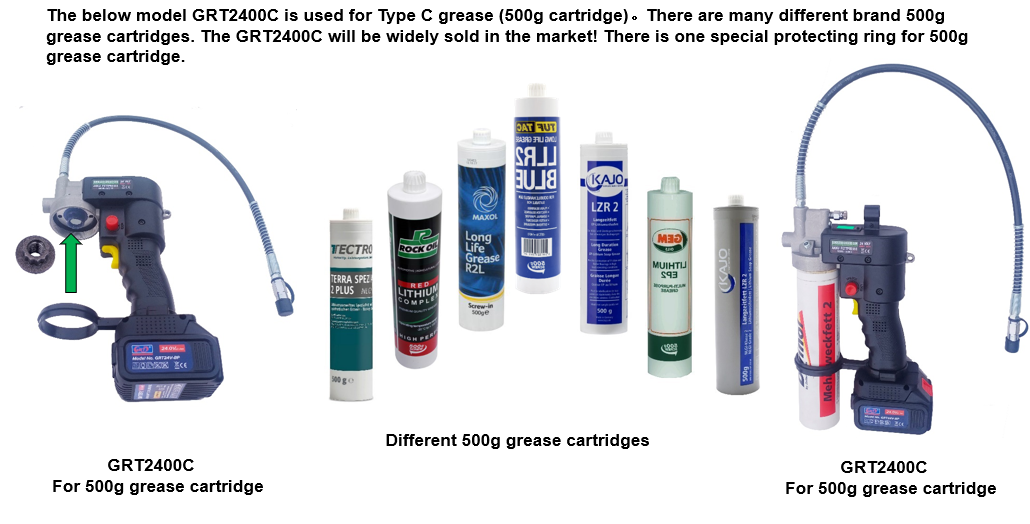

| Type C | Screw-in Cartridge | 500g |

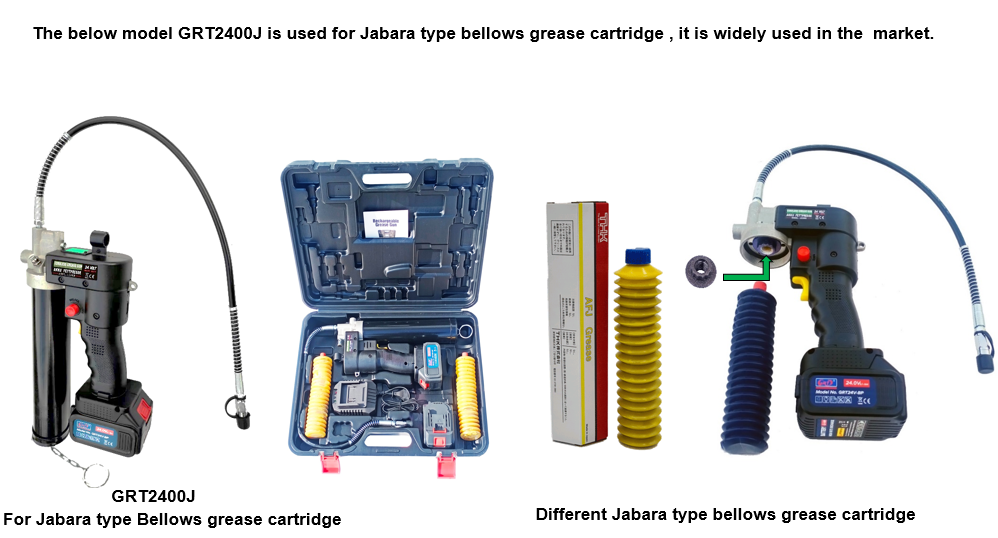

| Jabara | Bellows Type | Standard Bellows |
| Bulk | Manual Fill | Variable |
Advanced Features
Monitoring & Control
- LCD battery capacity display
- Pressure release valve for air pockets
- Self-locking safety button for transit
- New plunger drive structure to prevent locking
Winter & Emergency Kit
Emergency Power & Charging
- 12V cigarette plug adapter for direct car power
- DC to AC inverter for charging via vehicle DC 12V
- Inverter supports charging mobile phones or laptops
- Cold Weather Support
- Includes a 12V warming blanket that plugs into a car cigarette socket to soften stiff grease during winter use.
Applications
Recommended Applications
Heavy Duty TrucksFarm EquipmentConstruction MachineryHigh-Speed BearingsHigh-Temperature Environments
Compliance
- Certifications
- CEEMC
