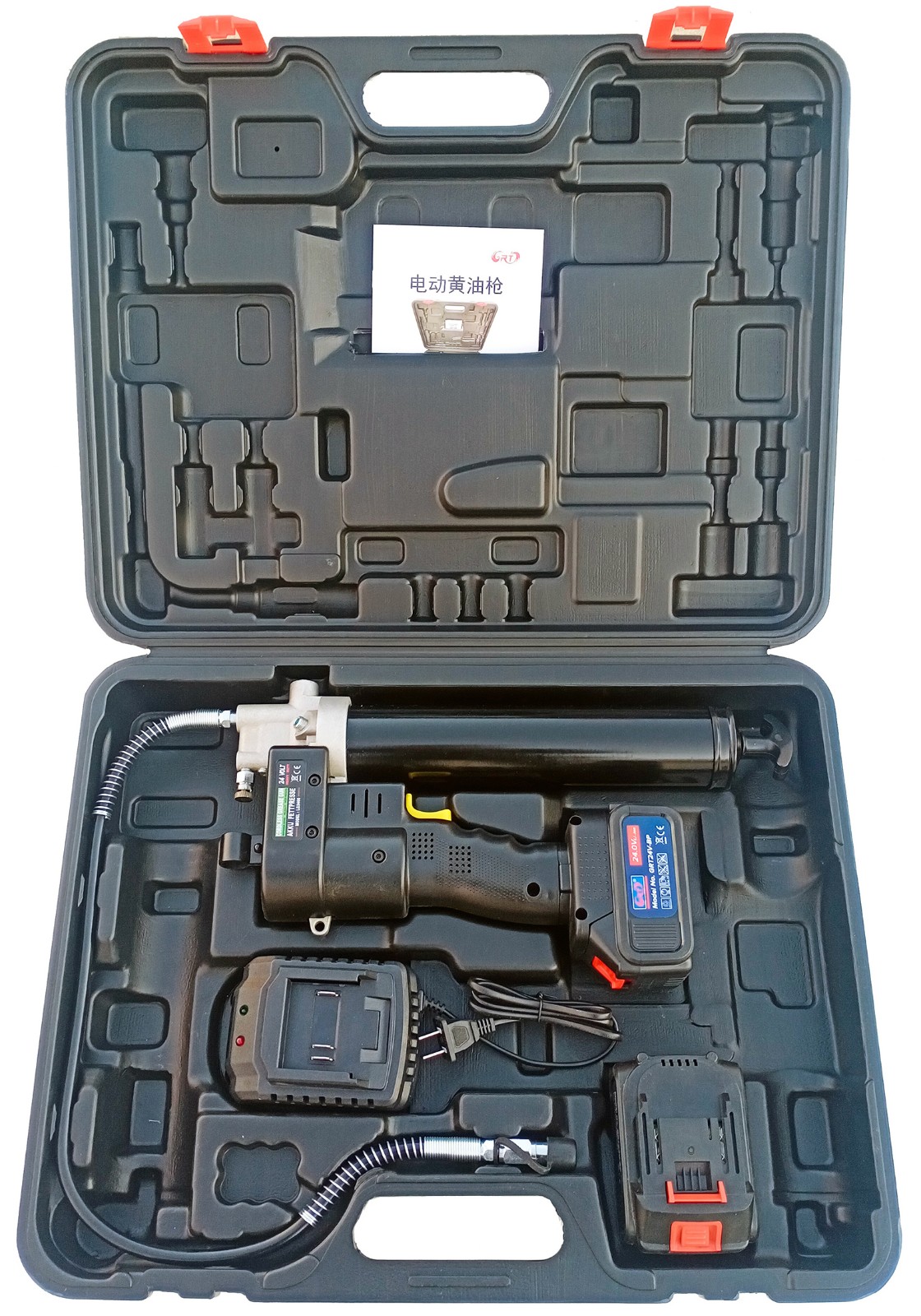

Cordless Grease Gun 24V Compatible with DIN1284 and Lube Shuttle Cartridges
This cordless grease gun is compatible with DIN1284 14.5OZ and Lube Shuttle Fuchs 500g grease cartridges. It operates on a 24V battery system, offering cordless convenience for various lubrication applications.
Technical Specifications
Overview
Professional 24V Cordless Lubrication Solution
This high-performance cordless grease gun is designed for professional maintenance tasks, offering compatibility with both DIN1284 14.5oz and Lube Shuttle 500g cartridges. It features a dual-power design that allows operation via a 24V battery or direct connection to a machine's storage battery using crocodile clips. With advanced safety features like a resettable fuse and a self-locking button, it ensures reliable operation in demanding industrial, agricultural, and automotive environments.
Performance Metrics
Key Performance Metrics
6,500 psi
Average Output Pressure
3 oz/min
Flow Rate (@1000psi)
24 V
Operating Voltage
Technical Specifications
- Adjustable Pressure Range
- 2,000 psi to 6,000 psi (Factory preset at 6,000 psi)
- Hose Length
- 27 inch
- Net Weight
- 2.5 kgs
- Tool Dimensions
- 420 x 210 x 84 mm

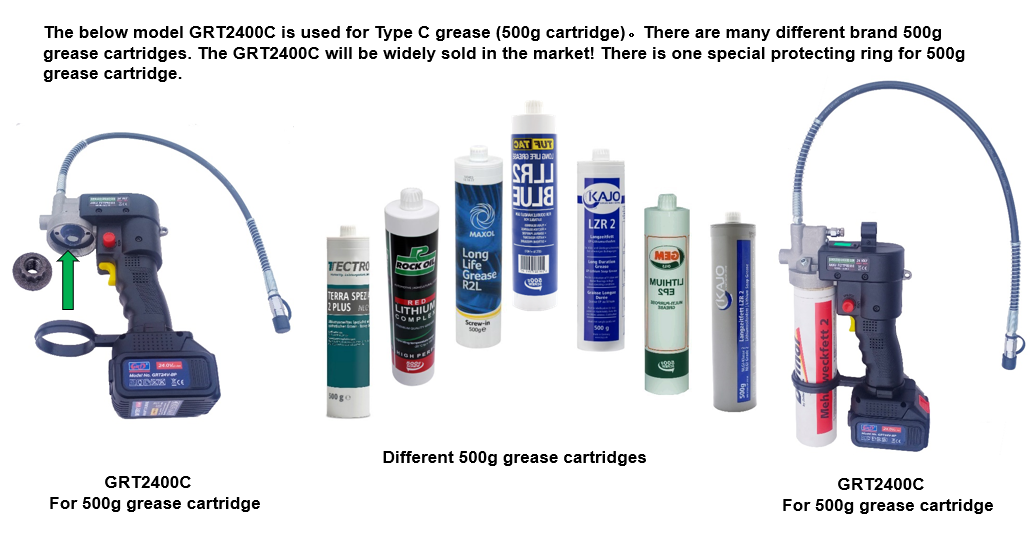

Compatibility
- Supported Cartridges
- DIN1284 14.5ozLube Shuttle 500gType C 500gScrew-in Cartridges
Advanced Features
Safety & Protection
- Resettable fuse for motor and battery overload protection
- Self-locking button to prevent accidental activation
- Anti-jamming circuit (EMC tested) to minimize electromagnetic interference
- Integrated grease release valve to eliminate air pockets
Mechanical Design Advantages
- New plunger actuated design to prevent locking
- LCD battery capacity display
- Special protecting ring for 500g cartridges
Cold Weather Support
- Winter Operation
- Includes a warm blanket with 12V cigarette plug adapter to soften stiff grease in low temperatures.
Compliance
Certifications
CEEMC Tested
