Technical Specifications
Overview
Advanced Geothermal Climate Control

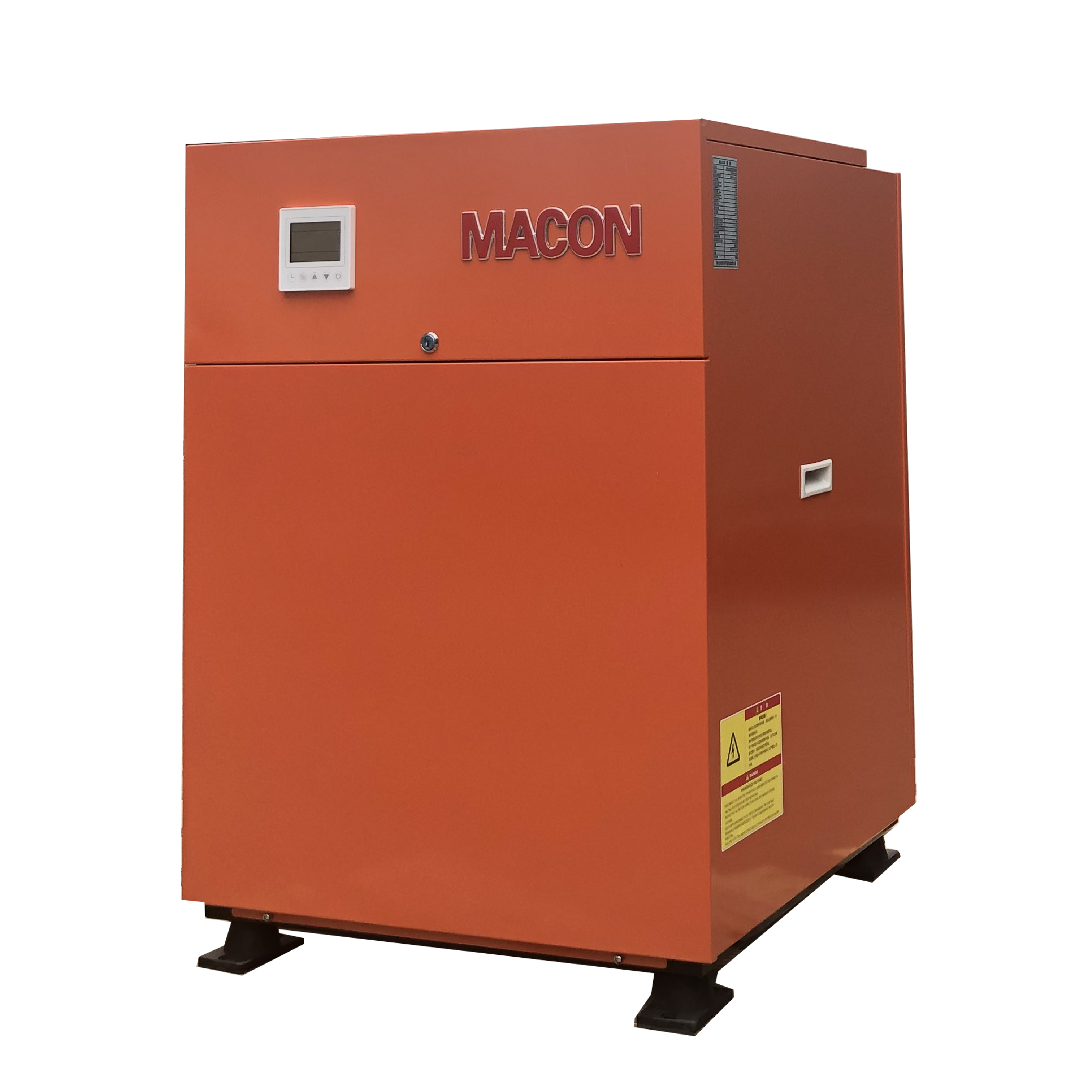

This water source geothermal heat pump utilizes the earth's stable underground temperature to provide high-efficiency heating, cooling, and domestic hot water. Featuring advanced DC inverter technology, it offers precise temperature control within 0.5°C and operates with significantly higher efficiency than traditional air conditioning systems. Designed for both residential and commercial applications, this unit minimizes energy consumption while maintaining a comfortable indoor environment year-round.
Performance
Key Performance Metrics
21.6 kW
Max Heating Capacity
4.9 W/W
Max COP
4.2 W/W
Max EER
Technical Specifications
- Refrigerant
- R410A
- Sound Level
- 55 dB(A)
- Inverter Frequency Range
- 20Hz - 120Hz
Operating Conditions
- Ambient Temperature Range
- -30°C to 50°C
- Ground/Water Source Temp
- 8°C to 38°C
Features
Suitable Applications
- Private Houses
- Hotels
- Bathing Pools & Saunas
- Commercial Centers
- Factories
- System Capabilities
- HeatingCoolingDomestic Hot WaterDC InverterVariable Frequency Drive
